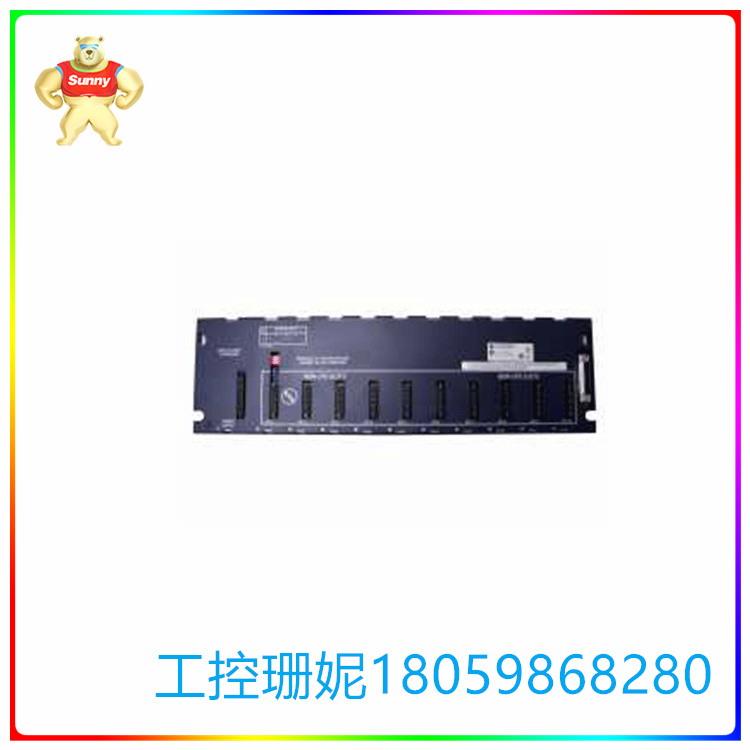

GE IC670CHS002  I/O 接线端子 带盒式端子

【产品详情】

GE Fanuc IC670CHS002 / IC670CHS102 接线端子带盒式端子，是通用接线底座，提供模块安装、背板通信和用户连接端子。一个接线端子上可以安装两个模块。模块拧到接线端子上以增强抗振性。模块可以在不干扰现场接线的情况下拆卸。

对于每个 I/O 模块，有三个隔离的公共端子组：A 组（内部连接在一起）和 B 组（内部连接在一起）通常用于电源连接。E 组有五个公共端子，它们在内部连接在一起并与电源和点端子隔离。它们可以用作应用布线。端子 1-16 用于 I/O 接线。

每个端子最多可容纳一个 AWG #14（2.1 毫米）2） 或两个 AWG #18（0.86 毫米2） 通过 AWG #22 （.35 mm2） 电线，使用额定温度为 90°C 的铜线。 建议的终端扭矩为 4.5 英寸/磅。通过任何一个端子的最大电流为 10 安培。

关于IC670CHS002

GE Fanuc IC670CHS002接线端子是一种I/O接线端子，配有箱式端子，由GE Fanuc设计制造，作为2个独立I/O模块的安装底座，并为其提供通信连接、电源连接和用户连接终端所需的平台。任何类型的GE Fanuc兼容模块都可以从GE Fanuc IC670CHS002 I / O接线端子上连接或拆卸，而无需断开系统与电源的连接。这意味着接线端子与热插拔兼容。添加的模块可以牢固地拧入接线端子（最大端子扭矩为每英寸 4.5 磅），以避免由于工业应用中经常发生的过度振动而导致意外断开。

GE IC670CHS002  I/O 接线端子 带盒式端子

【英文介绍】

summarize

Features:

Three sets of isolated common terminals for each I/O module

Vibration resistance

Copper wire rated at 90°C

The maximum current through each terminal is 10 A

GE Fanuc IC670CHS002 / IC670CHS102 Wiring terminals With box terminals are common wiring bases that provide module installation, backplane communication, and user connection terminals. Two modules can be installed on one terminal. The module is screwed onto the terminal to enhance vibration resistance. Modules can be removed without interfering with field wiring.

For each I/O module, there are three isolated common terminal groups: Group A (internally connected together) and Group B (internally connected together) are typically used for power connections. Group E has five common terminals that are internally connected together and isolated from the power supply and point terminals. They can be used as application wiring. Terminals 1-16 are used for I/O connections.

Each terminal can accommodate up to one AWG #14 (2.1 mm) 2) or two AWG #18 (0.86 mm2) wire through AWG #22 (.35 mm2) wire, using copper wire rated at 90°C. The recommended end torque is 4.5 inches/lb. The maximum current through any one terminal is 10 amps.

About IC670CHS002

The GE Fanuc IC670CHS002 terminal is an I/O terminal with box terminals designed and manufactured by GE Fanuc to serve as the mounting base for 2 independent I/O modules and to provide them with the necessary platform for communication connections, power connections and user connection terminals. Any type of GE Fanuc compatible module can be connected or removed from the GE Fanuc IC670CHS002 I/O terminal without disconnecting the system from the power supply. This means that the terminals are hot-swappable. The added module can be firmly screwed into the terminal (maximum terminal torque is 4.5 pounds per inch) to avoid accidental disconnection due to excessive vibration that often occurs in industrial applications.
