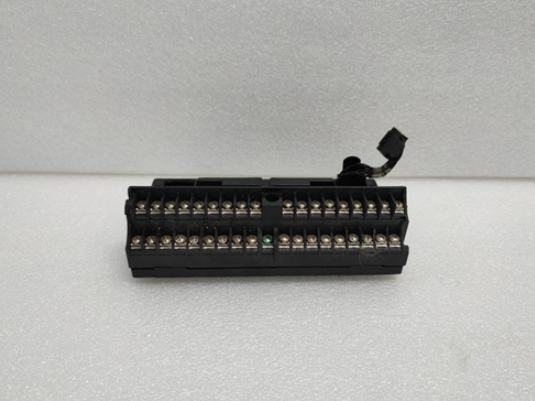

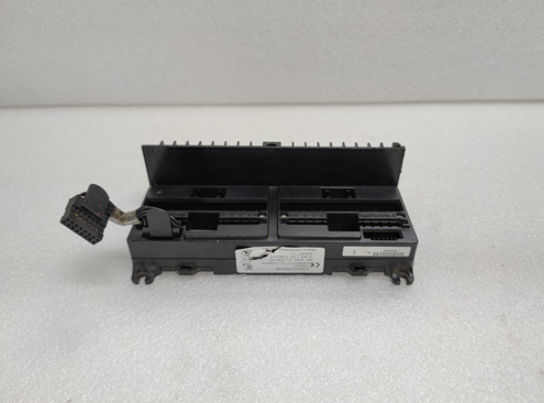

GE IC670CHS001 现场控制平台的I/O接线端子

GE IC67OCHS001 现场控制平台的I/O接线端子 【产品详情】 该IC670CHS001是现场控制平台的I/O接线端子,目前隶属于艾默生自动化,以前由GE智能平台(GE IP)生产。这是一个屏障式 I/O 载体,带有 37 个端子,最多可容纳两 (2) 个现场控制模块。该接线端子最多可容纳两 (2) 根实心或绞合铜线,每个端子的 AWG #14 至 AWG #22 不等。该端子模块设计用

联系人:Sunny

手机:18059884797

QQ:3095989363

邮箱:xiongbagk@gmail.com

产品详情

GE IC67OCHS001 现场控制平台的I/O接线端子




【产品详情】



该IC670CHS001是现场控制平台的I/O接线端子,目前隶属于艾默生自动化,以前由GE智能平台(GE IP)生产。这是一个屏障式 I/O 载体,带有 37 个端子,最多可容纳两 (2) 个现场控制模块。该接线端子最多可容纳两 (2) 根实心或绞合铜线,每个端子的 AWG #14 至 AWG #22 不等。该端子模块设计用于水平安装,安装在DIN导轨上或直接安装到外壳子面板上。


该IC670CHS001是现场控制系列的接线端子模块,以前由GE Fanuc提供,现在隶属于艾默生自动化。该模块配有栅式接线端子,可容纳往返电气负载和信号设备的信号线。它提供模块化连接,因为该模块允许移除和插入托管 I/O 模块,而无需移除现有的接线连接。


该IC670CHS001还提供背板通信,因为该模块嵌入了连接到相邻接线端子模块的连接器。该接线端子模块最多可容纳两 (2) 个模块,支持离散 I/O 和模拟量 I/O 模块。


该IC670CHS001共有 37 个端点。每个端子最多可容纳两 (2) 根尺寸范围为 #14 (2.1 mm2) 至 AWG #22 (0.35 mm2) 电线的电线。适用的电线绝缘额定值为 90 摄氏度,而推荐的拧紧扭矩为 8 英寸磅。对于接地端子的接线,适用的电线尺寸为 AWG #14(平均横截面 2.1mm2),长度不得超过 4 英寸或 10.16 厘米。


该接线端子模块支持水平方向的DIN导轨或面板安装。通过使用IC670CHS001,当安装适当的总线接口单元(BIU)时,可以在非危险应用领域实现热插入和移除,特别是固件版本为2.1或更高版本的BIU模块。对于一个或多个端子底座的连接,IC670CBL001兼容的预组装电缆。此外,辅助接线端子也可以连接到该模块上,以提供额外的接地、信号返回和信号公共连接。


GE Fanuc现场控制IC670CHS001是一种屏障式接线端子,最多可承载归档控制模块。它,支持连接到其背板的模块之间的通信,并用作连接到外部现场设备的终端。它们支持安装 2 个模块。这些模块以机械方式拧到GE Fanuc IC670CHS001 I / O底座上,以避免由于设备振动而意外断开。I/O 基接线端子出厂时带有保护屏障,可防止在连接或断开设备期间与相邻电缆接触和短路。需要注意的重要一点是,即使模块已通电,这些模块也支持连接和断开电缆。


GE Fanuc IC37CHS670 I/O 底座中有 001 个螺丝端子。其中两个端子(标记为端子 A 和 B)用于电源连接,其余 35 个用于单个端子连接。端子可容纳 AWG #14(2.1 平方毫米)到 AWG #22(0.35 平方毫米)电缆。GE Fanuc IC670CHS001 I/O 基座是键控的,以避免其他 I/O 模块的错误连接。这些附加模块放置在正确的位置后,通过将其牢固地压在底座上来安装到底座上。始终需要将模块的螺钉拧紧到底座中,以防止振动将模块与 I/O 底座断开。制造商建议在一英寸上使用 8 到 10 磅的最大扭矩。




GE IC67OCHS001 现场控制平台的I/O接线端子




英文介绍



The IC670CHS001 is an I/O terminal for the field control platform, now owned by Emerson Automation and previously manufactured by GE Intelligent Platforms (GE IP). This is a screen-screen I/O carrier with 37 terminals that can accommodate up to two (2) field control modules. The terminal can accommodate up to two (2) solid or stranded copper wires with AWG #14 to AWG #22 for each terminal. The terminal block is designed for horizontal mounting, mounted on a DIN rail or mounted directly to the shell panel.


The IC670CHS001 is a terminal block in the Field control family, previously supplied by GE Fanuc and now part of Emerson Automation. The module is equipped with grid-type terminals to accommodate signal lines to and from electrical loads and signal equipment. It provides modular connectivity as the module allows managed I/O modules to be removed and inserted without removing existing wiring connections.


The IC670CHS001 also provides backplane communication, as the module is embedded with connectors connected to adjacent terminal modules. The terminal block can accommodate up to two (2) modules and supports both discrete I/O and analog I/O modules.


The IC670CHS001 has a total of 37 endpoints. Each terminal can accommodate up to two (2) wires with dimensions ranging from #14 (2.1 mm2) to AWG #22 (0.35 mm2) wires. The applicable wire insulation rating is 90 degrees Celsius, while the recommended tightening torque is 8 inch-pounds. For ground terminal wiring, the applicable wire size is AWG #14 (average cross section 2.1mm2) and the length must not exceed 4 inches or 10.16 cm.


The terminal block supports horizontal DIN rail or panel mounting. With the IC670CHS001, hot insertion and removal can be achieved in non-hazardous applications when the appropriate bus interface Unit (BIU) is installed, especially BIU modules with firmware version 2.1 or higher. For connections with one or more terminal bases, IC670CBL001 compatible pre-assembled cables. In addition, auxiliary terminals can also be connected to the module to provide additional grounding, signal return, and signal common connections.


GE Fanuc Field Control IC670CHS001 is a screen block that can hold up to an archive control module. It supports communication between modules connected to its backplane and serves as a terminal connected to external field devices. They support the installation of 2 modules. The modules are mechanically screwed to the GE Fanuc IC670CHS001 I/O base to avoid accidental disconnection due to device vibration. I/O base terminals are shipped with protective barriers to prevent contact with adjacent cables and short circuits during connecting or disconnecting devices. An important point to note is that these modules support connecting and disconnecting cables even if they are powered on.


GE Fanuc IC37CHS670 I/O base with 001 screw terminals. Two of the terminals (labeled terminals A and B) are used for power connections, and the remaining 35 are used for individual terminal connections. The terminals can accommodate AWG #14 (2.1 mm ²) to AWG #22 (0.35 mm ²) cables. The GE Fanuc IC670CHS001 I/O dock is keyed to avoid false connections of other I/O modules. After these add-on modules are placed in the correct position, they are installed on the base by pressing them firmly against the base. It is always necessary to screw the module into the base to prevent vibration from disconnecting the module from the I/O base. Manufacturers recommend using a maximum of 8 to 10 pounds of torque on an inch.
