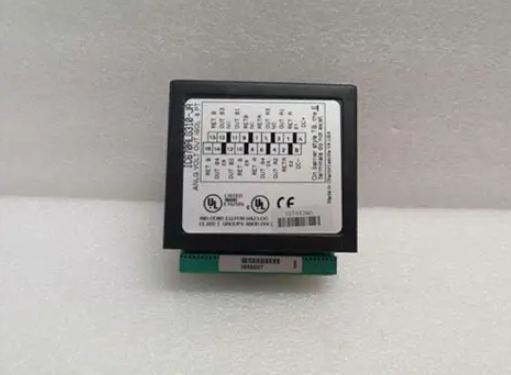

GE IC670ALG621 控制模块 4个独立模拟输入

【产品详情】

GE Fanuc生产IC670ALG621场控制模块，该模块专门设计用于接收来自4个不同RTD传感器的4个独立模拟输入，作为Genius Bus控制平台的一部分。测量温度是多种工业过程的基本组成部分，最常见的方法是使用电阻温度检测器（RTD）。GE Fanuc IC670ALG621模拟RTD输入场控制模块是一个固态器件，它是一个智能模块，它能够接收不同等级的RTD信号，并根据预先配置的参考参数解释这些读数。所有需要的定制都可以通过使用手持配置设备从GE Fanuc BIU（总线接口单元）进行。

可以连接到GE Fanuc IC670ALG621模拟RTD现场控制输入模块的一些RTD类型是10欧姆铂金（PT），25欧姆铂（IPTS-68）和25.5欧姆铂（alpha = .00392,0摄氏度实验室标准）RTD类型。3线和4线配置都与此RTD模块兼容。GE Fanuc IC670ALG621模拟 RTD 输入场控制模块的输入电阻范围为 0 至 3276.7 欧姆。诸如有源RTD输入的数量、输出数据的字节长度以及电路中使用的线路频率（50或60赫兹）等参数也可以通过使用单独出售的手持式配置设备通过BIU进行定制。该模块的IP等级为IP 20，因此遵循制造商的安装和环保建议非常重要，防尘和直接接触水。

GE IC670ALG621 控制模块 4个独立模拟输入

【英文介绍】

GE Fanuc manufactures the IC670ALG621 field control module, which is specifically designed to receive four independent analog inputs from four different RTD sensors as part of the Genius Bus control platform. Measuring temperature is an essential part of many industrial processes, and the most common method is the use of a resistance temperature detector (RTD). GE Fanuc IC670ALG621 Analog RTD Input Field Control module is a solid-state device, it is an intelligent module, it is able to receive different levels of RTD signals and interpret these readings according to pre-configured reference parameters. All required customizations can be made from the GE Fanuc BIU (Bus Interface Unit) using a handheld configuration device.

Some RTD types that can be connected to GE Fanuc IC670ALG621 analog RTD field control input modules are 10 ohplatin (PT), 25 ohplatin (IPTS-68) and 25.5 ohplatin (alpha =.00392,0 ° C laboratory standard) RTD types. Both 3-wire and 4-wire configurations are compatible with this RTD module. The GE Fanuc IC670ALG621 Analog RTD input field control module has an input resistance range from 0 to 3276.7 ohms. Parameters such as the number of active RTD inputs, the byte length of the output data, and the line frequency used in the circuit (50 or 60 Hz) can also be customized via the BIU using hand-held configuration devices sold separately. The module has an IP rating of IP 20, so it is important to follow the manufacturer's installation and environmental recommendations, dust resistance and direct contact with water.

GE IC670ALG621 控制模块 4个独立模拟输入
