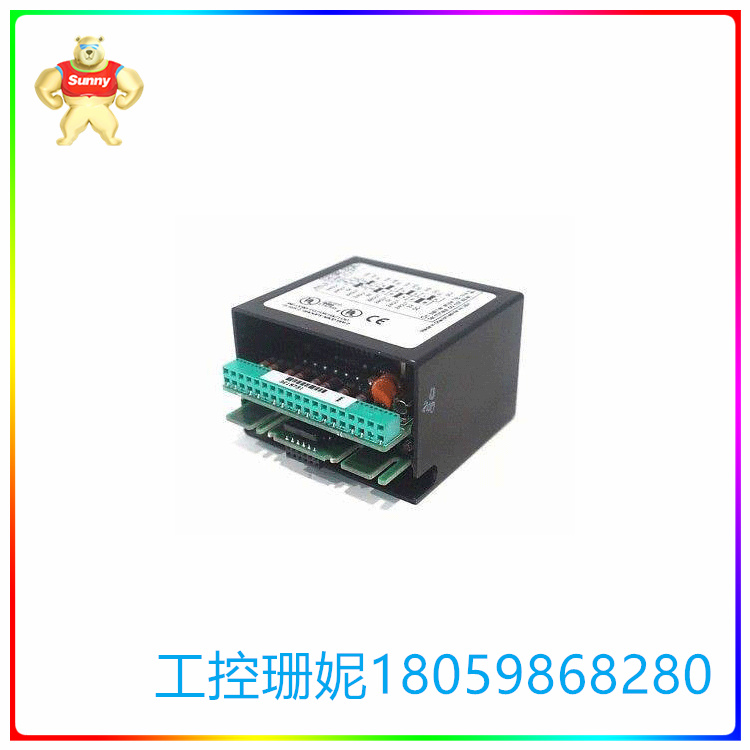

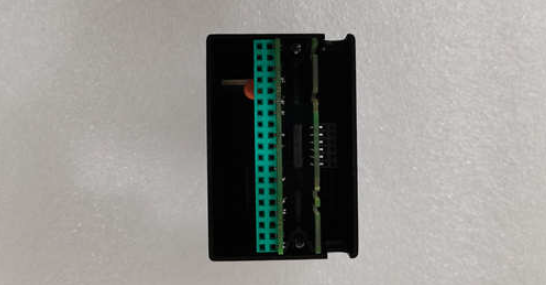

GE IC670ALG230 模拟输入模块 兼容的总线接口单元

【产品详情】

IC670ALG230是GE发那科公司的模拟输入模块。它特别属于现场I/O控制产品系列的扩展模块，与一个兼容的总线接口单元(BIU)操作。该模块主要具有8个模拟输入通道，可接受0-20 mA和4-20 mA模拟输入信号。该模块主要用于多种类型的现场信号变送器、面板仪表输出、数据记录仪、信号分配器、变频器(VFD)等设备的接口。

IC670ALG230的模拟分辨率为5.0µA，而典型的数字分辨率为12位。它接受最小输入电流为0.1 mA，最大输入电流为20 mA。它内置了内部保护功能，如开线检测和超量程故障检测。

IC670ALG230内置模数转换器(ADC)电路，将接收到的模拟信号转换为数字格式，供主机CPU处理。在1 MHz模块时钟下，ADC电路的转换时间为每通道60µs。它还有一个一阶RC输入滤波器，典型的转换容量为160 Hz。

该模块具有满量程+/- 25%的非线性和+/-温度系数。每摄氏度值的0.002%，典型和+/ -。最高每摄氏度值的0.005%。该模块带有单组输入通道，支持单端布线配置。每个通道具有接地和逻辑隔离额定1500 VAC 1分钟和250 VAC，连续。它的额定电流为51毫安，最大来自BIU电源。

IC670ALG230输入模块是GE发那科公司生产的8通道输入模块。它可以在普通电源下运行。它由24伏电源供电，该电源也为总线接口单元供电。在隔离的情况下，使用单独的电源。模块正面有LED指示灯，显示背板的工作状态和现场电源情况。输入模块通过本地电源驱动不同隔离的换能器和输入。在组中的单个点之间不存在隔离。对机箱的隔离额定值为250伏交流电，持续一段时间，对地隔离额定值为1500伏交流电，持续一分钟。模块的输入阻抗为2.87千欧姆。通电压在15v DC ~ 30v DC之间，关电压在0v DC ~ 5v DC之间。

GE IC670ALG230 模拟输入模块 兼容的总线接口单元

【英文介绍】

The IC670ALG230 is an analog input module from GE Fanuc. It specifically belongs to the Field I/O control product family of expansion modules that operate with a compatible Bus Interface Unit (BIU). This module primarily features Eight (8) Analog input channels that accepts 0-20 mA and 4-20 mA analog input signals. This module is mainly used for interfacing of field signal transmitters of many types, outputs of panel meters, data loggers, signal splitters, Variable Frequency Drives (VFD) and similar devices.

The IC670ALG230 has analog resolution of 5.0 µA while the digital resolution is 12 bits, typical. It accepts a minimum input current of 0.1 mA and maximum of 20 mA. It is built with internal protection features such as open wire detection and over-range fault detection.

The IC670ALG230 has built-in analog to digital converter (ADC) circuit which converts the received analog signal to digital format for processing of the host CPU. The ADC circuit has a conversion time of 60 µs per channel at 1 MHz module clock. It also has a 1st order RC input filter with typical transition capacity of 160 Hz.

This module has non-linearity of +/- 25% of Full Scale and temperature coefficients of +/–.002% of value per degree C, typical and +/–.005% of value per degree C, maximum. This module comes with a single group of input channels and supports single-ended wiring configuration. Each channel has ground and logic isolation rated 1500 VAC for 1 minute and 250 VAC, continuous. It has a rated current draw of 51 mA, maximum from the BIU power supply.

The IC670ALG230 input module is an 8-channel input module manufactured by GE Fanuc. It can run with a common power supply. It is powered with a 24 Volts power supply that also powers the bus interface unit. In case of isolation, a separate power supply is used. The front of the module has LED indicators that show the operation of backplane and the field power. The input module is used to drive different isolated transducers and inputs by using a local power supply. No isolation is present between individual points that are in a group. The isolation to case rating is 250 Volts AC for a continuous time period, and isolation to ground is 1500 Volts AC for a time period of 1 minute. The input impedance of the module is 2.87 kiloohms. The on-state voltage is between 15 Volts DC and 30 Volts DC, and the off-state voltage is between 0 and 5 Volts DC.
