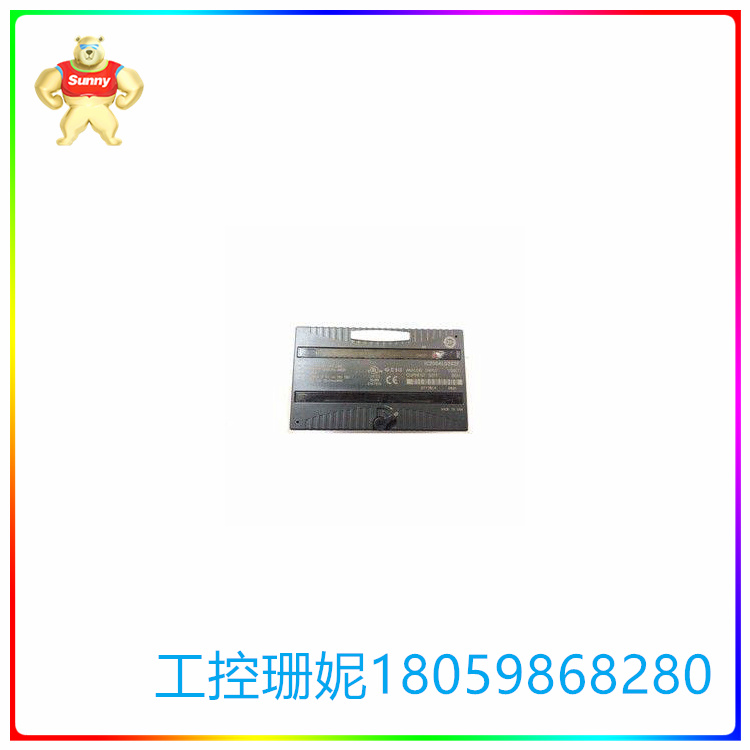

GE IC200ALG262  I/O 平台的一部分组件模块 现场变送器

【产品详情】

技术规格

不。频道数量： 8个差速器，一组

电压范围： -10 至 +10 伏直流电

电流范围： 4 - 20 毫安， 0 - 20 毫安

更新率： 7.5 毫秒

输入滤波器响应： 不适用

功耗： +200V总线5 mA

 IC200ALG262是 VersaMax I/O 平台的一部分组件模块。该模块专门用于支持差分电流接线的模拟输入模块。它带有八 （8） 个模拟输入通道，设计用于接收标准电流输入信号，例如 0-20 mA 和 4-20 mA 输入信号。

该IC200ALG262目前由艾默生自动化制造。它非常适合连接模拟信号发生仪器，例如现场变送器，用于测量压力、液位、流量、温度、浊度、粘度、速度和其他类型的变送器;用于集成本地安装的面板仪表，以实现远程显示;用于监控变频驱动器 （VFD） 的速度输出;用于监控旋转和线性设备的位置以及其他应用。

该IC200ALG262具有内置模数转换器（ADC）电路，转换分辨率为15位。输入通道排列在单个组中，当配置为接收 4-20 mA 时，能够检测模块内部功率损耗和开路检测。每个通道的上调速率为7.5 ms，0-5 mA信号范围的数字分辨率为4.20 μA，0-625 mA信号范围的数字分辨率为0.20 μA。该模块的最大背板电流消耗为200 VDC总线电压的5 mA。

可与此模块一起使用的兼容配置软件和硬件固件版本包括 VersaPro 软件版本 2.0 或更高版本;VersaMax PLC CPU 固件 2.10 或更高版本;VersaMax 以太网网络接口单元 （NIU） 固件版本 1.10 更高版本;它还与VersaMax DeviceNet，Profibus或Genius NIU模块兼容。

GE Fanuc的IC200ALG262输入模块是VersaMax产品系列中的模拟输入模块。它可以是 8 个电流输入模拟输入的接口。IC200ALG262输入模块不需要外部电源，因为它从背板电源接收电源。该模块的分辨率为 15 位。IC200ALG262模拟输入模块可通过软件进行配置。它支持来自 CPU 或 NIU 的智能处理。它的所有 8 个输入通道都是单端的，排列在 1 组中。此模块的更新速率为 7.5 毫秒。

GE IC200ALG262  I/O 平台的一部分组件模块 现场变送器

【英文介绍】

Technical specification

Nooooo. Number of channels: 8 differentials, one set

Voltage range: -10 to +10 volts DC

Current range: 4-20 MA, 0-20 Ma

Update rate: 7.5 ms

Input filter response: Not applicable

Power consumption: +200V bus 5 mA

IC200ALG262 is a component module of the VersaMax I/O platform. This module is specially designed for analog input modules that support differential current wiring. It comes with eight (8) analog input channels designed to receive standard current input signals, such as 0-20 mA and 4-20 mA input signals.

The IC200ALG262 is currently manufactured by Emerson Automation. It is ideal for connecting analog signal generation instruments such as field transmitters for measuring pressure, level, flow, temperature, turbidity, viscosity, velocity and other types of transmitters; For integrating locally mounted panel meters for remote display; For monitoring the speed output of variable frequency drives (VFDS); For monitoring the position of rotating and linear devices and other applications.

The IC200ALG262 has a built-in analog-to-digital converter (ADC) circuit with a conversion resolution of 15 bits. The input channels are arranged in a single group and, when configured to receive 4-20 mA, are capable of detecting internal module power losses and open circuit detection. The up-regulation rate for each channel is 7.5 ms, and the digital resolution is 4.20 μA in the 0-5 mA signal range and 0.20 μA in the 0-625 mA signal range. The maximum backplane current consumption of the module is 5 mA of the 200 VDC bus voltage.

Compatible configuration software and hardware firmware versions that can be used with this module include VersaPro software version 2.0 or later; VersaMax PLC CPU firmware 2.10 or higher; VersaMax Ethernet Network Interface Unit (NIU) Firmware version 1.10 or later. It is also compatible with VersaMax DeviceNet, Profibus or Genius NIU modules.

GE Fanuc's IC200ALG262 input module is an analog input module in the VersaMax product family. It can be an interface for 8 current inputs to simulate inputs. The IC200ALG262 input module does not require an external power supply because it receives power from the backplane power supply. The module has a resolution of 15 bits. The IC200ALG262 analog input module can be configured by software. It supports intelligent processing from the CPU or NIU. All eight of its input channels are single-ended and arranged in a group of 1. The update rate of this module is 7.5 ms.

GE IC200ALG262  I/O 平台的一部分组件模块 现场变送器
