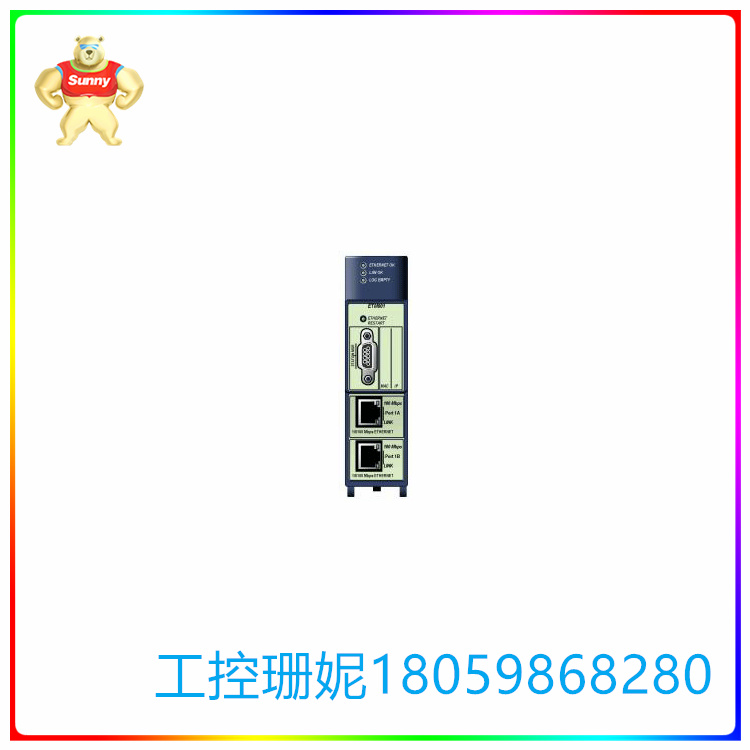

IC695NKT002 GE  VersaMax 模块和控制器进行通信

【产品详情】

IC695NKT002是PACSystem RX3i产品组件或通常称为套件。它由一 （1） 个目录号 IC695NIU001 的以太网 NIU 和目录号 IC2ETM695 的两 （001） 个以太网接口模块组成。该套件中的所有模块均由艾默生自动化制造，以前由GE智能平台（GE IP）制造。

IC695NKT002组件用于允许 PACSystem RX3i 平台与 90-30 系列模块或 VersaMax 模块和控制器进行通信。这提供了一种迁移到较新的控制器平台的替代方法，而无需完全替换系统 - 有时称为分阶段迁移或部分迁移。

IC695NIU001的主要功能是通过支持 RS90 和 RS30 连接的嵌入式串行接口提供与现有 232-485 系列 I/O 模块的连接。这些端口兼容通过应用“C”块配置为Modbus RTU从站，SNP，串行I / O，Modbus RTU主站，这是传统系列90-30的通信协议，用于与设备和I / O模块通信。

该IC695ETM001用于通过以太网通信接口与其他 PAC系统、设备、90-30 系列和 VersaMax 控制器进行通信。这些端口通过在四层TCP / IP堆栈上使用GE Fanuc SRTP和以太网全局数据（EGD）协议来实现TCP / IP连接。

IC695NKT002的组件可以单独购买。此外，其他配件，如带目录号（IC690ACC001）的实时时钟（RTC）电池，带电缆的迷你转换器套件，RS-485 / RS-232（IC690ACC901），RS-485端口隔离器（IC690ACC903），RS-232电缆（IC200CBL001）以及其他组件。

IC695NKT002 GE  VersaMax 模块和控制器进行通信

【英文介绍】

IC695NKT002 is a PACSystem RX3i product component or commonly referred to as a kit. It consists of one (1) Ethernet NIU with directory number IC695NIU001 and two (001) Ethernet interface modules with directory number IC2ETM695. All modules in the suite are manufactured by Emerson Automation and were previously manufactured by GE Intelligent Platforms (GE IP).

The IC695NKT002 component is used to allow the PACSystem RX3i platform to communicate with the 90-30 series modules or VersaMax modules and controllers. This provides an alternative way to migrate to a newer controller platform without completely replacing the system - sometimes referred to as phased migration or partial migration.

The main function of the IC695NIU001 is to provide connectivity to existing 232-485 series I/O modules through an embedded serial interface that supports RS90 and RS30 connectivity. These ports are compatible with Modbus RTU slave station, SNP, Serial I/O, Modbus RTU Master station by applying the "C" block, which is the traditional series 90-30 communication protocol for communicating with devices and I/O modules.

The IC695ETM001 is used to communicate with other PAC systems, devices, the 90-30 series and VersaMax controllers via an Ethernet communication interface. These ports enable TCP/IP connectivity by using GE Fanuc SRTP and the Ethernet Global Data (EGD) protocol on the Layer 4 TCP/IP stack.

Components of the IC695NKT002 can be purchased separately. In addition, other accessories such as Real Time Clock (RTC) battery with catalog number (IC690ACC001), Mini converter kit with cable, RS-485 / RS-232 (IC690ACC901), RS-485 port isolator (IC690ACC903), RS-232 cable (IC200CBL001) and other components.

IC695NKT002 GE  VersaMax 模块和控制器进行通信
