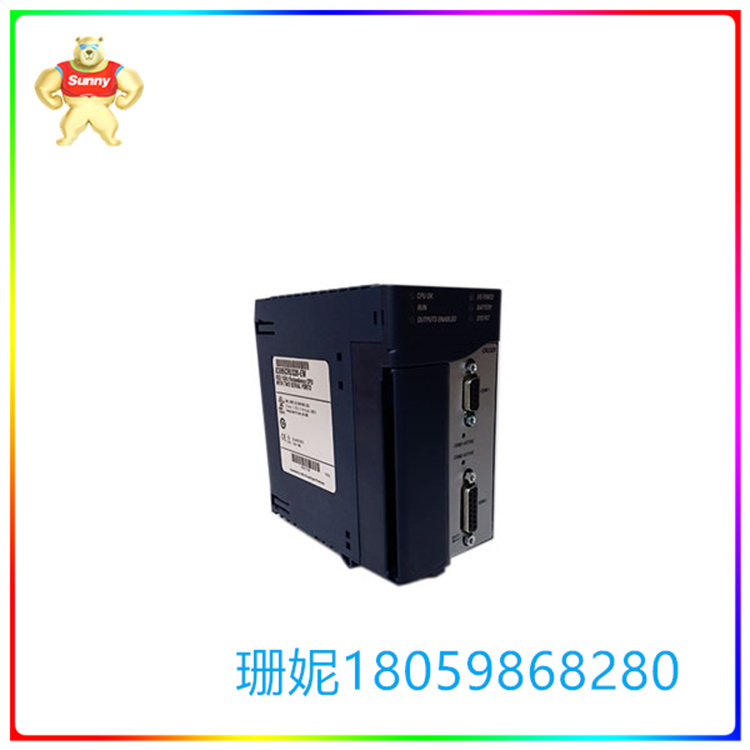

GE IC695NIU001 RX3i以太网网络接口单元 组件模块

【产品详情】

技术规格

模块类型:网口

槽位数:1(单槽位)

背板支持:双:RX3i PCI和90-30串行

协议支持:snp, Modbus Slave, Serial I/O, Modbus Master

通信端口:(2)RS-232和RS-485

内部电源:0.52 a @ 3.3 VDC, 0.95A @ 5VDC

IC695NIU001是PACSystems RX3i以太网网络接口单元(NIU)。该模块由艾默生自动化制造。它是RX3i以太网NIU站组件的一个组件模块，由RX3i通用背板、RX3i电源模块、至少一个RX3i以太网模块和IC695NIU001模块组成。IC695NIU001是该组件的一部分，使RX3i系统，特别是cpu能够在传统系列90-30 I/O模块之间进行通信和执行数据交换。

说明配置IC695NIU001需要使用Machine Edition Logic Developer软件(5.51及以上版本)。它带有COM1和com2通信接口，可配置RS232和RS485通信，通过应用程序“C”块支持串行协议，如Modbus RTU Slave, SNP，串行I/O和Modbus RTU Master。

IC695NIU001具有20kb的可选本地逻辑和10mb集成闪存。它有一个电池支持的时钟，可以替换为RX3i CPU锂智能电池，目录号为IC695ACC302(推荐)，系列90-30锂电池组，IC693ACC302，或IC698ACC701智能硬币电池包。此外，模块的预加载固件可通过系统内部升级。该模块在+3.3 VDC时电流为1.25安培，在+5 VDC时电流为1.0安培，而模块的工作温度为0摄氏度至60摄氏度(32华氏度至140华氏度)。该模块兼容PCI 2.2标准。

为了简化订购，提供目录编号为IC695NTK001或IC695NTK002的NIU套件，以确保完整的系统或组件正确配置。

GE IC695NIU001 RX3i以太网网络接口单元 组件模块

【英文介绍】

Technical specification

Module type: Network port

Number of slots :1(single slot)

Backplane support: Dual :RX3i PCI and 90-30 serial

Protocol support :snp, Modbus Slave, Serial I/O, Modbus Master

Communication ports :(2)RS-232 and RS-485

Internal power supply: 0.52a@3.3VDC, 0.95A@5VDC

IC695NIU001 is a PACSystems RX3i Ethernet Network Interface Unit (NIU). The module is manufactured by Emerson Automation. It is a component module of the RX3i Ethernet NIU station assembly, consisting of the RX3i universal backplane, the RX3i power module, at least one RX3i Ethernet module, and the IC695NIU001 module. The IC695NIU001 is part of this component that enables the RX3i system, especially the cpu, to communicate and perform data exchange between the traditional series 90-30 I/O modules.

Note To configure the IC695NIU001, you need to use Machine Edition Logic Developer (5.51 or later). It comes with COM1 and com2 communication interfaces, can be configured for RS232 and RS485 communication, and supports serial protocols such as Modbus RTU Slave, SNP, Serial I/O and Modbus RTU Master through the application "C" block.

The IC695NIU001 has 20kb of optional local logic and 10mb of integrated flash memory. It has a battery-supported clock that can be replaced with an RX3i CPU Lithium smart battery, catalog number IC695ACC302(recommended), Series 90-30 Lithium battery pack, IC693ACC302, or IC698ACC701 Smart Coin Battery pack. In addition, the module's preloaded firmware can be upgraded from within the system. The module has a current of 1.25 amps at +3.3 VDC and 1.0 amps at +5 VDC, while the module operates at temperatures ranging from 0 ° C to 60 ° C (32 ° F to 140 ° F). The module is PCI 2.2 compliant.

To simplify ordering, NIU kits with catalog numbers IC695NTK001 or IC695NTK002 are provided to ensure that the complete system or components are configured correctly.
