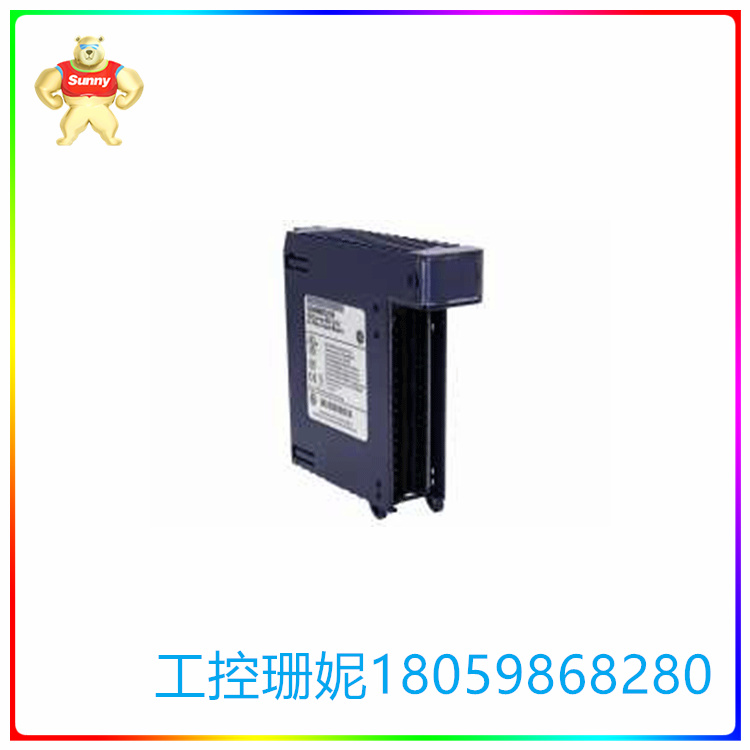

GE IC695MDL664 正逻辑输入模块 智能数字输入模块

【产品详情】

技术规格

额定电压： 24 伏直流电

# 输入数： 16 （2 组，每组 8 个）

频率： 不适用

输入电流： 12.2毫安

输入电压范围： 18 至 32V 直流

功耗： 95 mA @ 3.3V， 225 mA @ 5V

GE Fanuc IC695MDL664模块是智能数字输入模块或正逻辑输入模块。GE Intelligent Platforms/GE Fanuc作为GE Fanuc RX3i产品线的成员生产它。该模块是一个 16 点模块，现场输入额定功率为 24 伏直流电，它将 16 个输入点分为 2 组，每组 8 个输入。它具有 12.2 毫安的输入电流，输入电压范围为 18 至 32 伏直流电，225 伏直流时的额定功耗为 5 毫安，95.3 伏直流时的额定功耗为 3 毫安。2 组 8 个输入中的每一个都引用到一个公共连接。IC695MDL664模块与弹簧式或箱式前接线端子兼容。

GE Fanuc IC695MDL664模块还具有与多种输入设备完美匹配的输入特性，包括限位开关、电子接近开关和按钮。通过输入状态表中输入点的电流产生逻辑 1。IC695MDL664模块需要用户提供的电源来操作现场设备。该模块具有 16 个 LED 指示灯，以及 S1 和 S2 指示灯，用于显示现场电源是否施加到 2 组中的每个组，并显示接线端子状态。IC695MDL664智能数字模块还将“接线端子丢失”或“接线端子添加”消息记录到输入和输出故障表中，以显示接线端子是否已安装或移除。该模块非常灵活，可以安装在RX3i PLC系统的任何输入和输出插槽中。

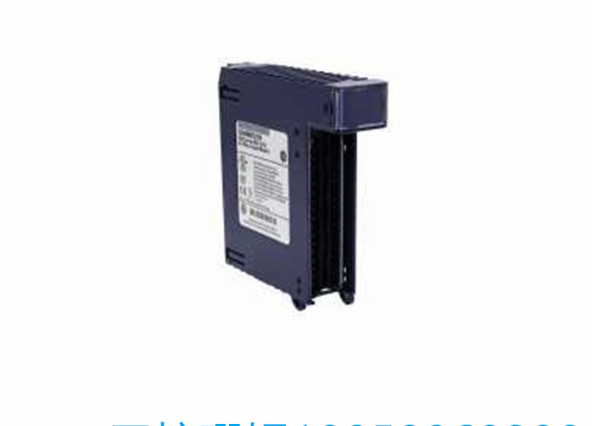

GE IC695MDL664 正逻辑输入模块 智能数字输入模块

【英文介绍】

Technical specification

Rated voltage: 24 volts DC

# Number of inputs: 16 (2 groups, 8 per group)

Frequency: Not applicable

Input current: 12.2 MA

Input voltage range: 18 to 32V DC

Power consumption: 95 mA@3.3V, 225 mA@5V

The GE Fanuc IC695MDL664 module is an intelligent digital input module or positive logic input module. GE Intelligent Platforms/GE Fanuc produces it as a member of the GE Fanuc RX3i product line. The module is a 16-point module with a field input rated power of 24 volts DC, which divides 16 input points into 2 groups of 8 inputs each. It has an input current of 12.2 MA with an input voltage range of 18 to 32 volts DC and a power consumption rating of 5 mA at 225 volts DC and 3 mA at 95.3 volts DC. Each of the 2 sets of 8 inputs is referenced to a common connection. The IC695MDL664 module is compatible with spring or box front terminals.

The GE Fanuc IC695MDL664 module also has input characteristics that perfectly match a variety of input devices, including limit switches, electronic proximity switches and buttons. Logic 1 is generated by the current at the input point in the input status table. The IC695MDL664 module requires a user-supplied power supply to operate the field device. The module has 16 LED indicators, as well as S1 and S2 indicators, to show whether the field power is applied to each of the 2 groups and to show the terminal status. The IC695MDL664 smart digital module also logs "Terminal loss" or "Terminal Add" messages to the input and output fault tables to show whether the terminal has been installed or removed. The module is very flexible and can be installed in any input and output slots of the RX3i PLC system.

GE IC695MDL664 正逻辑输入模块 智能数字输入模块
