GE IC695LRE0001  串行总线发送模块 带有用于通信目的

【产品详情】

技术规格

模块类型： 串行总线发送器

插槽数量： 1（单插槽）

当前需要： 132 mA @ 5V

串口： RS-232

有效数据速率： 每秒 500k 字节

最大电缆长度： 50 英尺 - 扩展，700 英尺 - 远程

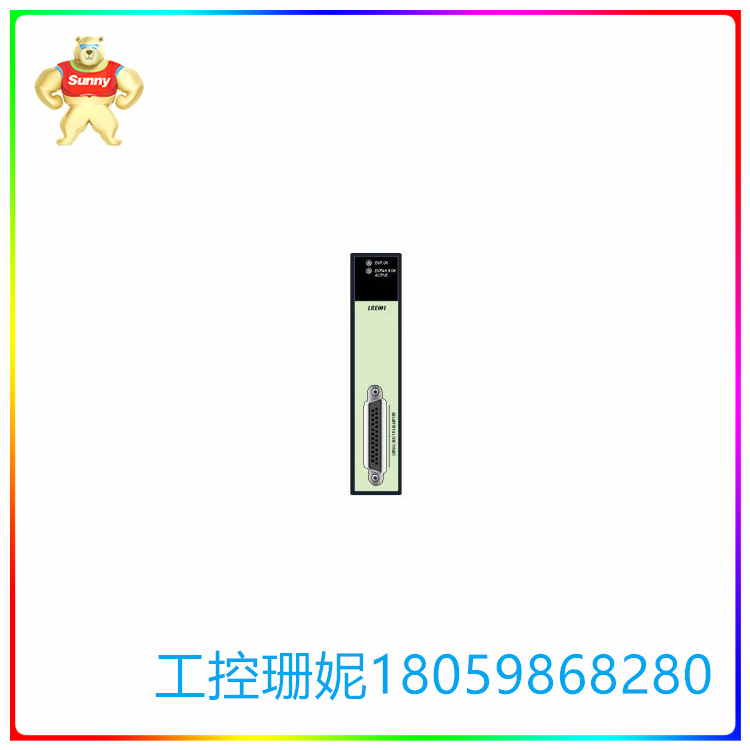

GE Fanuc IC695LRE001模块是由GE智能平台/GE Fanuc制造的串行总线发送模块，作为RX3i系列的一部分。该模块旨在提供串行扩展和远程背板与RX3i PacSystems通用背板之间的通信。其功能是根据串行扩展背板的需要将通用背板内的电平转换为信号电平。IC695LRE001串行总线端子只有一个插槽。它带有用于通信目的的RS-232串行端口，其有效数据速率为每秒500 KB。其他规格包括扩展背板的最大电缆长度为 50 英尺，远程背板的最大电缆长度为 700 英尺。IC695LRE001模块必须位于通用背板右侧的特殊扩展连接器内。该装置具有指示模块和扩展链路运行状态的 LED。

当 GE Fanuc IC5LRE695串行总线发射器模块施加 001 伏的背板电源时，“扩展正常”LED 亮起。“扩展活动”LED 显示扩展总线状态，当扩展模块与扩展背板通信时，LED 亮起。当模块和扩展底板未相互通信时，“扩展活动”LED 熄灭。IC695LRE001串行总线发送器模块的正面还有一个连接器，用于连接扩展电缆。该模块的其他规格包括背板在 132 伏时所需的 5 毫安电流和在 0.3 伏时所需的 3 毫安电流。

GE IC695LRE0001  串行总线发送模块 带有用于通信目的

【英文介绍】

Technical specification

Module type: Serial bus transmitter

Number of slots: 1 (single slot)

Current requirement: 132 mA@5V

Serial port: RS-232

Effective data rate: 500k bytes per second

Maximum cable length: 50 feet - extended, 700 feet - remote

The GE Fanuc IC695LRE001 module is a serial bus sending module manufactured by GE Intelligent Platform /GE Fanuc as part of the RX3i family. The module is designed to provide serial expansion and communication between the remote backplane and the RX3i PacSystems universal backplane. Its function is to convert the levels in the universal backplane to signal levels according to the needs of the serial expansion backplane. The IC695LRE001 serial bus terminal has only one slot. It comes with an RS-232 serial port for communication purposes with an effective data rate of 500 KB per second. Other specifications include a maximum cable length of 50 feet for expansion backplanes and 700 feet for remote backplanes. The IC695LRE001 module must be located inside a special expansion connector on the right side of the universal backplane. The device has an LED indicating the operating status of the module and the extended link.

When the GE Fanuc IC5LRE695 serial bus transmitter module applies a 001 volt backplane power supply, the "Expand Normal" LED lights up. The Expansion Active LED displays the expansion bus status and lights up when the expansion module communicates with the expansion backplane. When the module and expansion baseplate are not communicating with each other, the Expansion Activity LED goes out. The front of the IC695LRE001 serial bus transmitter module also has a connector for connecting the expansion cable. Other specifications for the module include a backplane that requires 5 milliamps at 132 volts and 3 milliamps at 0.3 volts.
