GE IC695GCG001 通信网关 提供以太网连接

【产品详情】

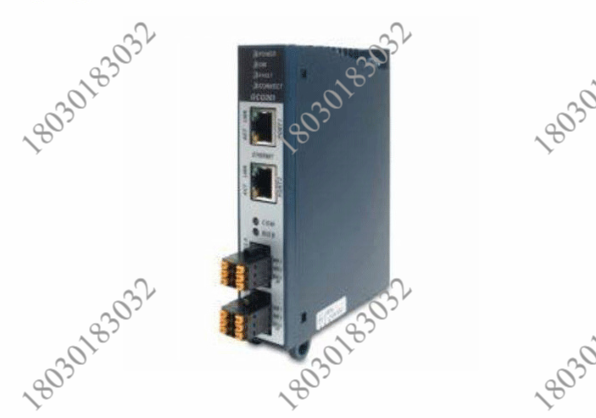

IC695GCG001是一款Genius通信网关。该模块是PACSystem RX3i的一部分，主要用于为任何遗留的现有天才总线系统提供以太网连接。该模块用于保留使用Genius总线的遗留模块的功能，并将设备安全地迁移到现代控制系统，而无需完全停用这些模块。

IC695GCG001提供2个支持PROFINET的RJ45通信接口和2个Genius通信接口。来自现有I/O系统的天才总线适配器被终止到IC695GCG001的天才端口。然后，PROFINET接口虚拟连接或桥接PROFINET网络和连接的Genius功能模块之间的连接。该模块作为两个协议之间的网关，支持多达31个Genius块或设备，允许2048字节的I/O数据，即1024个输入数据和1024个输出数据。该模块支持标准和扩展的天才总线速度，具体来说，153.6 kbps。

IC695GCG001支持的协议有RTC - Real Time Cyclic Protocol, Class 1和Class 2 (unsynchronized);RTA——实时无循环协议;DCP—发现和配置协议;无连接远程过程调用;链路层发现协议;MRP——媒体冗余协议;SNMP—简单网络管理协议。它还支持包括UDP、IP、ARP和ICMP (Ping)在内的子集协议。此外，该模块还支持VLAN和优先级标记。

IC695GCG001具有可配置的I/O更新或生产速率。可用的软件可配置时间设置为2ms、4ms、8ms、16ms、32ms、128ms、256ms或512ms。该模块最大输出电流为24vdc;0.19 A，工作温度0℃~ 60℃。

IC695GCG001模块是GE Fanuc RX3i PacSystems通信网关模块。IC695GCG001模块通过Genius串行总线实现GE Profinet I/O控制器和Genius I/O设备之间的接口。IC695GCG001模块扫描连接的Genius I/O设备，检索输入数据，并发送输出数据。然后，IC695GCG001模块通过以太网链路与Profinet I/O控制器交换I/O数据。IC695GCG001模块可以在任何特定的Genius I/O总线上管理多达31个Genius I/O设备。IC695GCG001模块也可以作为I/O设备，允许它由RX3i Profinet控制器控制。在这种情况下，IC695GCG001模块能够控制PLC。IC695GCG001模块只兼容GE Profinet I/O控制器。IC695GCG001模块可以冗余配置。

GE IC695GCG001 通信网关 提供以太网连接

【英文介绍】

IC695GCG001 is a Genius communication gateway. This module is part of PACSystem RX3i and is primarily used to provide Ethernet connectivity to any legacy existing Genius bus systems. This module is used to preserve the functionality of legacy modules that use the Genius bus and to safely migrate devices to modern control systems without completely deactivating these modules.

The IC695GCG001 provides two PROFINET supported RJ45 communication ports and two Genius communication ports. The Genius bus adapter from the existing I/O system is terminated to the genius port of the IC695GCG001. The PROFINET interface then virtually connects or Bridges the connection between the PROFINET network and the connected Genius functional module. The module acts as a gateway between the two protocols and supports up to 31 Genius blocks or devices, allowing 2048 bytes of I/O data, i.e. 1024 input data and 1024 output data. The module supports standard and extended Genius bus speeds, specifically, 153.6 kbps.

The IC695GCG001 supports RTC-Real Time Cyclic Protocol, Class 1 and Class 2 (unsynchronized). RTA - real-time loopless protocol; DCP - Discover and configure protocols; Connectionless remote procedure call; Link layer discovery protocol; MRP - Media Redundancy Protocol; SNMP - Simple Network Management Protocol. It also supports a subset of protocols including UDP, IP, ARP and ICMP (Ping). In addition, the module supports VLAN and priority tags.

The IC695GCG001 has configurable I/O updates or production rates. The available software can be configured for 2ms, 4ms, 8ms, 16ms, 32ms, 128ms, 256ms or 512ms. The maximum output current of the module is 24vdc; 0.19A, working temperature 0℃~ 60℃.

IC695GCG001 module is GE Fanuc RX3i PacSystems communication gateway module. The IC695GCG001 module implements the interface between the GE Profinet I/O controller and the Genius I/O device through the Genius serial bus. The IC695GCG001 module scans connected Genius I/O devices, retrieves input data, and sends output data. The IC695GCG001 module then exchanges I/O data with the Profinet I/O controller over an Ethernet link. The IC695GCG001 module can manage up to 31 Genius I/O devices on any specific Genius I/O bus. The IC695GCG001 module can also function as an I/O device, allowing it to be controlled by the RX3i Profinet controller. In this case, the IC695GCG001 module is able to control the PLC. The IC695GCG001 module is only compatible with GE Profinet I/O controllers. The IC695GCG001 module can be configured redundantly.
