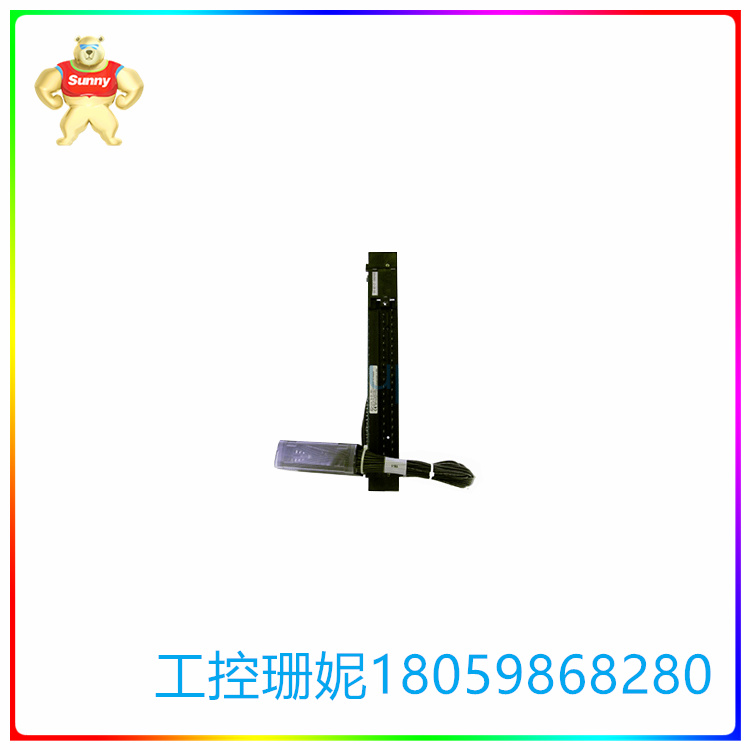

GE IC695CRHO03 线束组件 每组有 8 个输入点

【产品详情】

GE Fanuc RX3i PacSystems IC695CRH003线束组件是 90-70 系列 MDL250 至 RX3i MDL260 模块线束组件。GE Fanuc IC697MDL250模块是一个 120 伏交流输入模块，为可编程控制器提供 32 个输入点。32 个输入点分为 4 组，每组有 8 个输入点。这种划分允许每组输入点与交流电源的单独相位一起使用。IC697MDL250模块具有无功输入，并具有符合IEC标准的电流-电压特性。IC697MDL250模块上的输入与各种可用的接近开关兼容。IC697MDL250模块上提供LED指示灯，以显示每个输入点的开或关状态。IC697MDL250模块的额定功耗在 0 伏直流电时为 35.5 安培。

虽然GE Fanuc RX3i PacSystems IC694MDL260模块上的各个输入组是隔离的，但属于同一组的所有输入电路都参考到公共用户连接。GE Fanuc IC694MDL260模块和IC695CRH003线束组件的输入过滤时间可以通过编程器进行配置。当所有输入都打开时，带有IC694CRH260线束组件的 IC695MDL003 模块的功率要求在 220 伏直流时为 5 毫安。IC694MDL260模块的关断电压范围为 0 至 20 伏交流电。导通状态电流最小为 5 毫安。关断状态电流最大为 2.5 毫安。IC695CRH003线束组件及其主机模块的整个系统设计符合VME标准C.1。

GE IC695CRHO03 线束组件 每组有 8 个输入点

【英文介绍】

GE Fanuc RX3i PacSystems IC695CRH003 Harness assemblies are 90-70 series MDL250 to RX3i MDL260 module harness assemblies. The GE Fanuc IC697MDL250 module is a 120 volt AC input module that provides 32 input points for the programmable controller. The 32 input points are divided into 4 groups, each group has 8 input points. This division allows each set of input points to be used together with a separate phase of the AC power supply. The IC697MDL250 module has a reactive power input and has current-voltage characteristics that comply with IEC standards. The inputs on the IC697MDL250 module are compatible with a variety of available proximity switches. An LED indicator is provided on the IC697MDL250 module to show the on or off status of each input point. The IC697MDL250 module is rated at 35.5 amps at 0 volts DC.

Although the individual input groups on the GE Fanuc RX3i PacSystems IC694MDL260 module are isolated, all input circuits that belong to the same group refer to the common user connection. Input filtering times for the GE Fanuc IC694MDL260 module and the IC695CRH003 harness assembly can be configured with a programmer. When all inputs are turned on, the power requirement for the IC695MDL003 module with the IC694CRH260 harness assembly is 5 MA at 220 volts DC. The switch off voltage range of the IC694MDL260 module is 0 to 20 volts AC. The minimum on-state current is 5 MA. The maximum off current is 2.5 MA. The entire system design of the IC695CRH003 harness assembly and its host module conforms to VME standard C.1.

GE IC695CRHO03 线束组件 每组有 8 个输入点
