GE IC695CPU320 RX3i 控制器平台 进行高速数据传输的功能
【产品详情】
技术规格
处理速度: 1千兆赫
中央处理器内存: 20 兆字节
浮点: 是的
串口: 2
串行协议: SNP, 串行 I/O, Modbus 从站
嵌入式通信: RS-232, RS-486

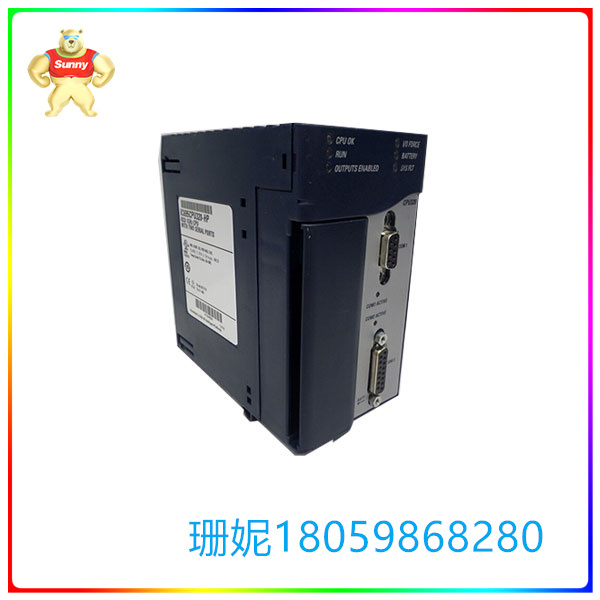

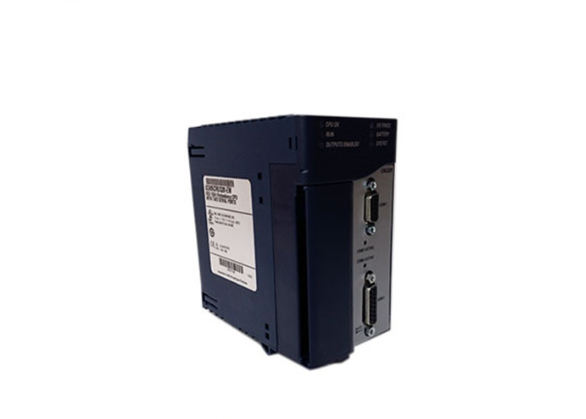

IC695CPU320是GE Fanuc/Emerson Automation控制器模块。该模块属于 PACSystems RX3i 控制器平台。该控制器可用于工业机器和过程的有效控制。它具有通过外围组件互连 (PCI) 插槽进行高速数据传输的功能,并支持用于迁移 90-30 系列 I/O 系统的串行背板。
IC695CPU320内置两(2)个通信端口,支持RS232和RS485通信标准。这些通信端口使用九十系列协议 (SNP) 从机模式与编程工作站、人机界面 (HMI)、监控和数据采集 (SCADA) 系统进行通信。此控制器可以安装在目录号为 IC3CHS12 的 Rx695i 012 插槽通用背板和目录号 IC3CHS16 的 Rx695i 016 插槽通用背板中。
该IC695CPU320具有内部赛扬M处理器,处理速度为1GHz。它包含 65 MB 的用户存储器,内容由锂智能电池系列 90-30 辅助电池模块保留,目录号分别为 IC695ACC302 和 IC693ACC302。此外,它还具有 64 MB 的非易失性闪存用户存储器。此外,这些用户存储器支持重新分配自定义大小的数据和程序存储器。它最多支持512个程序块,其中单个块的最大大小可能为128 KB。
IC695CPU320支持大多数 90-30 系列 PLC I/O 模块。此功能提供了灵活性,在将传统 90-30 系列升级到现代 PACSystems RX3i 控制器平台时特别有用和有益。这允许分阶段迁移,其中首先迁移现有 90-30 个 PLC 的控制器和逻辑,然后迁移 I/O 模块。PACSystem RX3i支持固件修改。
GE IC695CPU320 RX3i 控制器平台 进行高速数据传输的功能
【英文介绍】
Technical specification
Processing speed: 1 GHZ
CPU memory: 20 megabytes
Floating point: Yes
Serial port: 2
Serial protocol: SNP, Serial I/O, Modbus slave station
Embedded communication: RS-232, RS-486
The IC695CPU320 is a GE Fanuc/Emerson Automation controller module. The module belongs to the PACSystems RX3i controller platform. The controller can be used for effective control of industrial machines and processes. It features high-speed data transfer via Peripheral Component Interconnect (PCI) slots and supports serial backplanes for migrating 90-30 series I/O systems.
The IC695CPU320 has two (2) built-in communication ports that support RS232 and RS485 communication standards. These communication ports use the Ninety Series Protocol (SNP) slave mode to communicate with programming workstations, human machine interfaces (HMI), and supervisory control and Data acquisition (SCADA) systems. The controller can be installed in the universal midplane of slot Rx695i 012 whose directory number is IC3CHS12 or the universal midplane of slot Rx695i 016 whose directory number is IC3CHS16.
The IC695CPU320 has an internal Celeron M processor that processes at 1GHz. It contains 65 MB of user memory, the contents of which are reserved by the Lithium Smart Battery series 90-30 auxiliary battery modules with the catalog numbers IC695ACC302 and IC693ACC302 respectively. In addition, it has 64 MB of non-volatile flash user memory. In addition, these user stores support the reallocation of custom sized data and program storage. It supports up to 512 blocks, where the maximum size of a single block may be 128 KB.
The IC695CPU320 supports most 90-30 series PLC I/O modules. This feature provides flexibility and is particularly useful and beneficial when upgrading the legacy 90-30 series to a modern PACSystems RX3i controller platform. This allows for a phased migration, in which the controllers and logic of the existing 90-30 PLCS are first migrated, followed by the I/O modules. PACSystem RX3i supports firmware modification.
GE IC695CPU320 RX3i 控制器平台 进行高速数据传输的功能
