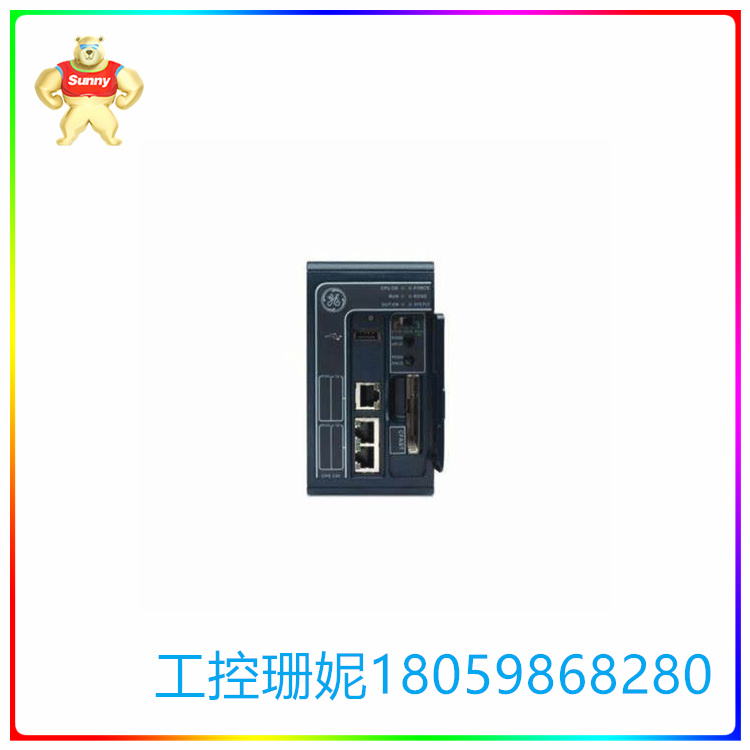

GE IC695CPK330 可编程自动化控制器  可寻址远程传感器

【产品详情】

技术规格

处理速度： 1千兆赫

中央处理器内存： 64 兆字节

浮点： 是的

以太网接口： 2 （LAN 1 & LAN 2）

串行协议： Modbus RTU 从机， SNP 从机， 串行 I/O

嵌入式通信： RJ-45

IC695CPK330是可编程自动化控制器 （PAC） 处理器，是 PACSystem RX3i 可编程自动化控制器 （PAC） 产品系列的一部分。该控制器由GE Fanuc / Emerson Automation制造，拥有现代，高度可扩展和高性能的设计，因为它能够进行高速I / O通信和高速公路可寻址远程传感器（HART）直通。

该处理器配备 64 MB 随机存取存储器 （RAM） 和 64 MB 非易失性存储器，以及具有 1 GHz 时钟速度和电池组功能的微处理器。它还配备了三 （3） 个以太网端口，其中一 （1） 个以太网端口支持 10/100/1000 Mbps 传输速率，两 （2） 个以太网端口用作嵌入式交换机，也支持 10/100/1000 Mbps 传输速率。支持的以太网拓扑包括衬管、环形和星形拓扑。该处理器具有能量包功能，允许在电源故障期间将数据写入处理器的非易失性存储器。这可以防止不必要的用户程序擦除，并为处理器执行数据传输过程提供额外的导通时间。此外，该处理器支持各种通信协议，如SRTP客户端/服务器，Modbus TCP/IP，OPC-UA SERVER，EGD和PROFINET。

此外，该处理器配备了USB 2.0接口，允许从可移动存储器或智能手机下载用户程序。此处理器设计为比IC695CPK320快两倍，并支持冗余或热备用配置。该处理器使用 GE Proficy 机器版软件或逻辑开发人员编程软件进行编程和调试。

GE IC695CPK330 可编程自动化控制器  可寻址远程传感器

【英文介绍】

Technical specification

Processing speed: 1 GHZ

CPU memory: 64 megabytes

Floating point: Yes

Ethernet interface: 2 (LAN 1 & LAN 2)

Serial protocol: Modbus RTU slave, SNP slave, serial I/O

Embedded communication: RJ-45

The IC695CPK330 is a Programmable Automation controller (PAC) processor that is part of the PACSystem RX3i Programmable Automation Controller (PAC) product family. Manufactured by GE Fanuc/Emerson Automation, the controller features a modern, highly scalable and high-performance design as it enables high-speed I/O communications and highway addressable Remote Sensor (HART) pass-through.

The processor is equipped with 64 MB of random access memory (RAM) and 64 MB of non-volatile memory, as well as a microprocessor with 1 GHz clock speed and battery pack capability. It is also equipped with three (3) Ethernet ports, of which one (1) Ethernet port supports 10/100/1000 Mbps transfer rates and two (2) Ethernet ports are used as embedded switches, also supporting 10/100/1000 Mbps transfer rates. Supported Ethernet topologies include liner, ring, and star topologies. The processor has an energy pack feature that allows data to be written to the processor's non-volatile memory during a power failure. This prevents unnecessary erasure of user programs and provides additional on-time for the processor to perform the data transfer process. In addition, the processor supports various communication protocols such as SRTP client/SERVER, Modbus TCP/IP, OPC-UA SERVER, EGD and PROFINET.

In addition, the processor is equipped with a USB 2.0 interface that allows user programs to be downloaded from removable memory or a smartphone. This processor is designed to be twice as fast as the IC695CPK320 and supports redundancy or hot standby configurations. The processor is programmed and debugged using GE Proficy Machine Edition software or Logic Developer Programming software.

GE IC695CPK330 可编程自动化控制器  可寻址远程传感器
