GE lC695CPE302 具有模块化设计 以太网通信

【产品详情】

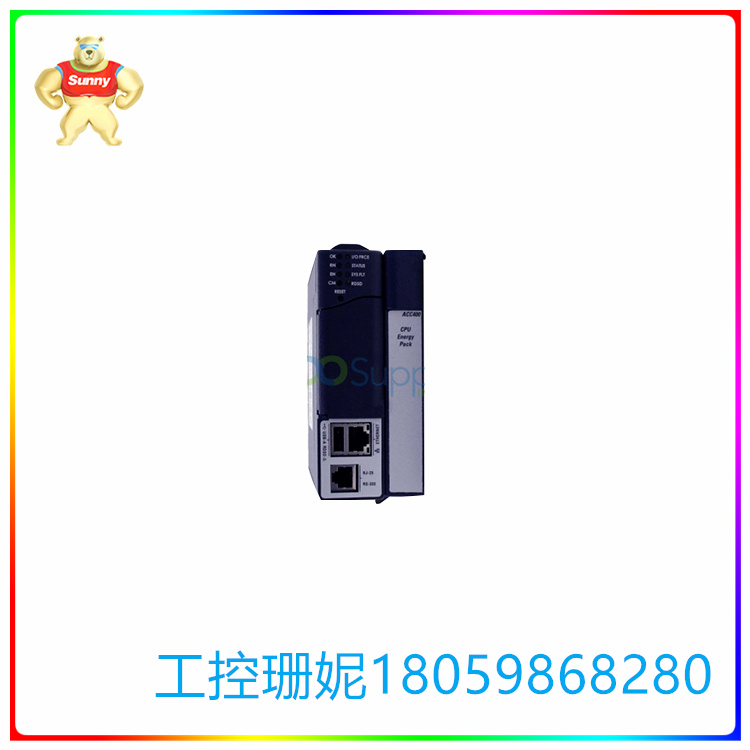

IC695CPE302 CPU是由GE Fanuc设计的RX3i PacSystems控制器。它具有模块化设计，带有可编程控制器，可在PLC系统中提供工业互联网连接。其高效的控制引擎和通用编程环境确保了与多个硬件平台一起使用的可移植性。它带有 3 个通信端口，即以太网、USB 和 RS-323 端口。以太网通信通过Modbus TCP/IP，SRTP客户端/服务器，OPC-UA服务器和EGD端口提供。该嵌入式以太网接口用于将模块连接到 PacSystems 机器版编程器。以太网端口的数据速率为 10/100 Mbps。该模块的安装选项是机架安装。IC695CPE302 CPU 模块随附用于备用电源的 IC695ACC400 模块、实时时钟电池和 3 英尺电缆。

IC695CPE302 CPU 支持自动定位符号变量，并通过梯形图、功能块图和结构化文本进行编程。该模块的参考表包括用于离散 I/O 的 16k 位和用于模拟 I/O 的 16k 字。该模块的一些功能是能够在没有电池的情况下保留用户内存，实时时钟的纽扣电池备份，带有可移动数据存储设备的数据上传和下载功能以及内部温度监控设施。IC695CPE302 RX3i CPU 的面板上有 8 个状态 LED，防护门后面的 RDSD 和运行模式开关。模块的能量包节省了用户内存，无需经常更换电池。建议将模块安装在外壳内，否则会暴露此打开设备的危险带电部件。配置需要 RX3i CPU 固件版本 9.40 或更高版本。

GE lC695CPE302 具有模块化设计 以太网通信

【英文介绍】

The IC695CPE302 CPU is an RX3i PacSystems controller designed by GE Fanuc. It has a modular design with a programmable controller that provides industrial Internet connectivity in a PLC system. Its efficient control engine and universal programming environment ensure portability for use with multiple hardware platforms. It comes with 3 communication ports, namely Ethernet, USB and RS-323 ports. Ethernet communication is provided over Modbus TCP/IP, SRTP client/server, OPC-UA server, and EGD port. The embedded Ethernet interface is used to connect the module to the PacSystems machine version programmer. The data rate of the Ethernet port is 10/100 Mbps. The mounting option for this module is rack mount. The IC695CPE302 CPU module comes with an IC695ACC400 module for backup power, a real-time clock battery, and a 3-foot cable.

The IC695CPE302 CPU supports automatic positioning of symbolic variables and programming through ladder diagrams, function block diagrams, and structured text. The module's reference table includes 16k bits for discrete I/O and 16k words for analog I/O. Some of the features of the module are the ability to retain user memory without batteries, button battery backup for real-time clocks, data upload and download capabilities with removable data storage devices and internal temperature monitoring facilities. The IC695CPE302 RX3i CPU has 8 status leds on the panel, RDSD behind the protective door and run mode switch. The module's energy pack saves user memory and eliminates the need for frequent battery replacement. It is recommended that the module be installed in the housing, otherwise dangerous live parts of this open device will be exposed. The configuration requires RX3i CPU firmware version 9.40 or later.

GE lC695CPE302 具有模块化设计 以太网通信
