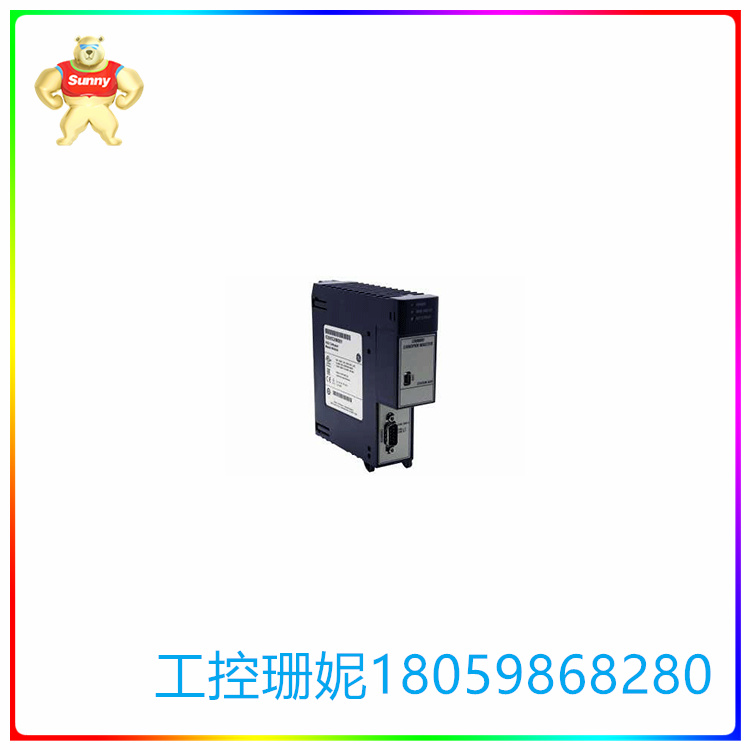

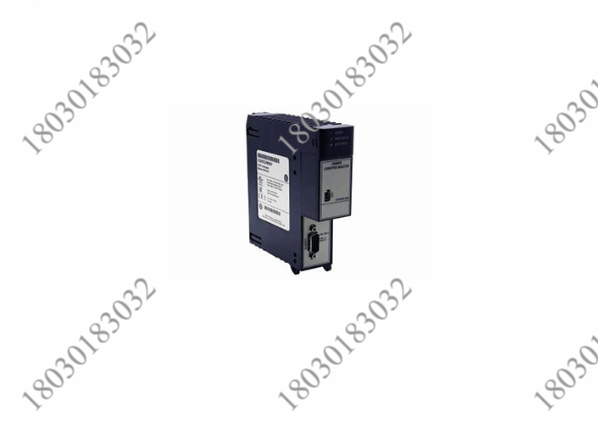

GE  IC695CNM001 通信模块 该模块充当主设备

【产品详情】

IC695CNM001 PacSystems CANopen主模块是GE Fanuc的RX3i系列通信模块。它支持RX3i CPU，可以通过CANopen网络发送和接收数据。该模块充当主设备，可以控制CANopen网络上多达5个从设备。它有 3 个状态指示灯 LED，用于显示模块的操作和通信状态，它们是“电源”、“MOD 状态”和“NET 状态”LED。IC695CNM001 PacSystems CANopen 主模块还具有一个 USB 端口以及一个用于通信的 9 针 D 连接器公接口端口。该模块的背板电流消耗额定值在 800.3 伏直流电时为 3 毫安。需要 RXi3 CPU 固件版本 7.70 或更高版本才能与此模块配合使用。

IC695CNM001 RX3i CANopen 主模块可以安装在 RX3i 系统主机架的任何插槽中，但插槽 0 或扩展插槽除外。该模块的一些功能包括高达 272 字节的 TX 和 RX PDO 数据扫描、PDO 计数器运行状况监控设施、PDO 映射、节点保护和救生员以及心跳协议。该模块的数据传输层为11位CAN帧层，波特率为10 kbit至1 Mbits。该设备的USB Mini Type B连接器可用于通过 SYCON.NET 软件下载和配置CANopen网络配置。IC695CNM001 RX3i CANopen主模块支持15个发送PDO、30个接收PDO、1个同步对象和网络管理对象。该模块允许热插拔，这意味着它可以安装在通用背板上或从通用背板上卸下，同时为系统通电。

GE  IC695CNM001 通信模块 该模块充当主设备

【英文介绍】

IC695CNM001 PacSystems CANopen main module is GE Fanuc RX3i series communication module. It supports RX3i cpus and can send and receive data over the CANopen network. This module acts as a master device and can control up to five slave devices on the CANopen network. It has 3 status indicator leds, which are used to display the operation and communication status of the module, they are "power", "MOD state" and "NET state" leds. The IC695CNM001 PacSystems CANopen main module also has a USB port as well as a 9-pin D-connector common interface port for communication. The backplane current consumption rating of the module is 3 MA at 800.3 volts DC. RXi3 CPU firmware version 7.70 or higher is required to work with this module.

The IC695CNM001 RX3i CANopen main module can be installed in any slot in the RX3i system frame, except for slot 0 or expansion slots. Some of the module's features include up to 272 bytes of TX and RX PDO data scanning, PDO counter health monitoring facilities, PDO mapping, node protection and lifeguard, and heartbeat protocols. The data transmission layer of the module is an 11-bit CAN frame layer with a baud rate of 10 kbit to 1 Mbits. The device's USB Mini Type B connector can be used to download and configure the CANopen network configuration via the SYCON.NET software. The IC695CNM001 RX3i CANopen main module supports 15 sending Pdos, 30 receiving Pdos, 1 synchronization object, and network management object. The module is hot-swappable, meaning it can be installed on or removed from a universal backplane while powering the system.
