GE  IC695CMX128 控制存储器交换器模块 高速光纤网络

【产品详情】

技术规格

模块类型： 选择性记忆

插槽数量： 1（单插槽）

巴士速度： 2.1 千兆位/秒

通信端口： 不适用

协议支持： 不需要

内部电源： 660 mA @ 3.3VDC， 253 mA@ 5VDC

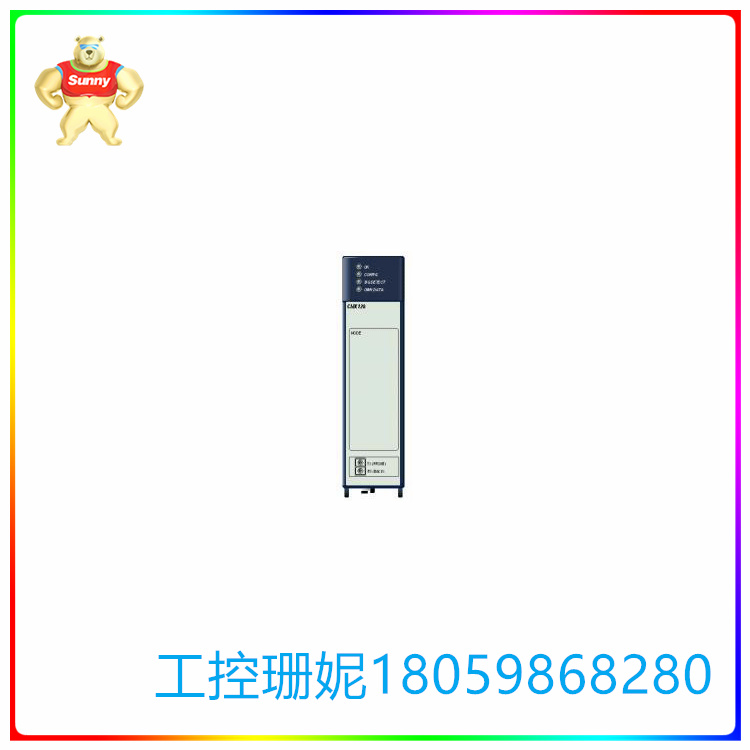

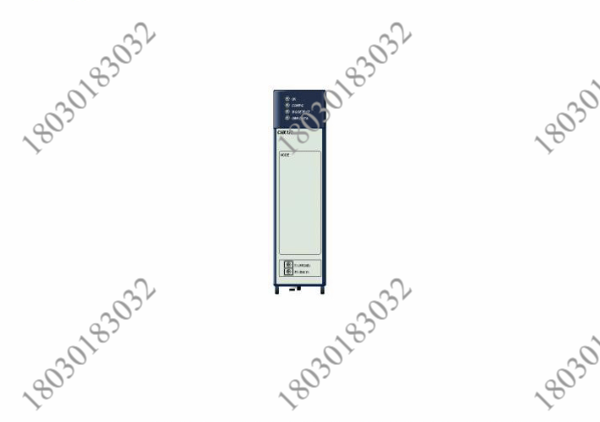

IC695CMX128 PacSystems控制存储器交换器模块是GE Fanuc的RX3i系列CMX模块。它有助于通过高速光纤网络在PLC和其他设备之间共享数据。它使用最多可以有 256 个节点的反射式内存网络。网络线路传输速率为每秒 2.1 千兆位。IC695CMX128 PacSystems 控制存储器交换器模块还与 GE VMIC 5565 系列反射式存储器设备兼容。该控制存储器交换器模块的一些功能包括单插槽外形、128 MB 反射存储器、软件可配置节点参数以及长达 300 米的多模光纤连接。IC695CMX128 PacSystems 控制内存换答器模块必须安装在 GE RX3i 通用背板中。

IC695CMX128 PACSystems 控制存储器交换器模块有 4 个绿色状态 LED，分别是“确定”、“配置”、“签名删除”和“自己的数据”LED。它们通知用户有关 CPU 的状态、模块配置、信号检测以及接收的数据包的信息。模块底部有一个光收发器，其中包含 2 个 LC 型光纤端口。这些模块可以通过单模或双多模光纤电缆联网在一起。需要 Proficy 机器编辑器逻辑开发人员软件版本 5.80 或更高版本才能对模块进行编程。它提供基本的读写操作以及附加功能，例如读取中断状态、读取奇偶校验错误和其他高级功能。反射存储器网络的节点通过光纤电缆以菊花链环连接，以便连接发射器和接收器。第一节点的发射器连接到第二节点的接收器，直到环路完成。

GE  IC695CMX128 控制存储器交换器模块 高速光纤网络

【英文介绍】

Technical specification

Module type: selective memory

Number of slots: 1 (single slot)

Bus speed: 2.1 gigabit/s

Communication port: not applicable

Protocol support: No

Internal power supply: 660 mA@3.3VDC, 253 mA@5VDC

The IC695CMX128 PacSystems control memory switch module is GE Fanuc's RX3i series CMX module. It facilitates the sharing of data between PLCS and other devices via high-speed fiber optic networks. It uses a reflective memory network that can have up to 256 nodes. The network line transmission rate is 2.1 gigabits per second. The IC695CMX128 PacSystems control memory switch module is also compatible with GE VMIC 5565 series reflective memory devices. Some of the features of the control memory exchanger module include a single-slot form factor, 128 MB of reflected memory, software-configurable node parameters, and up to 300 meters of multi-mode fiber optic connections. The IC695CMX128 PacSystems control memory converter module must be installed in the GE RX3i universal backplane.

The IC695CMX128 PACSystems control memory switch module has four green status leds, which are "OK", "Configure", "Signature Delete" and "Own Data" leds. They inform the user about the status of the CPU, module configuration, signal detection, and received packets. There is an optical transceiver at the bottom of the module, which contains 2 LC type optical fiber ports. These modules can be networked together via single mode or dual multimode fiber optic cables. Proficy Machine Editor Logic Developer Software version 5.80 or higher is required to program modules. It provides basic read and write operations as well as additional features such as reading interrupt states, reading parity errors, and other advanced features. The nodes of the reflective memory network are connected via fiber-optic cables in Daisy chains to connect transmitters and receivers. The transmitter at the first node is connected to the receiver at the second node until the loop is complete.
