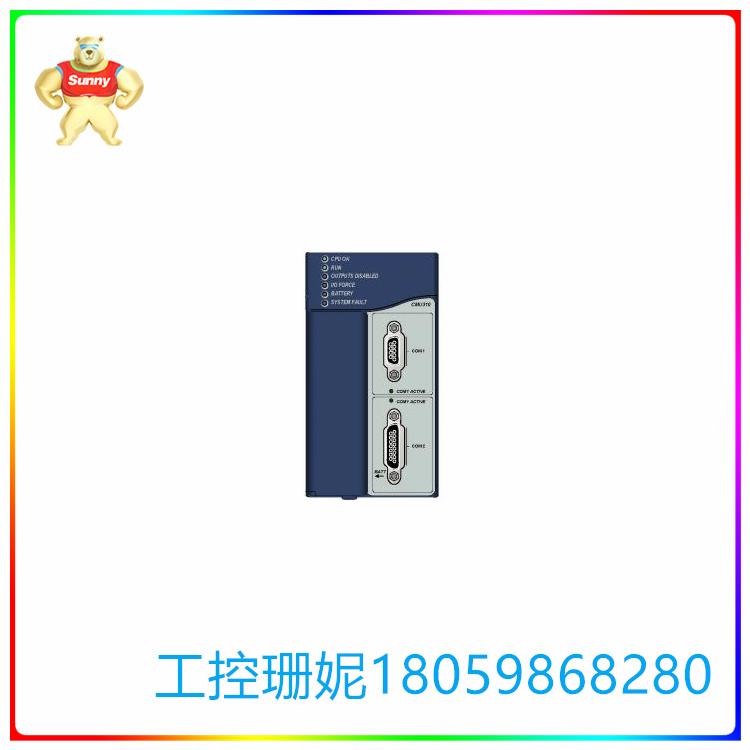

GE IC695CMU310 中央处理单元 热备用冗余CPU

【产品详情】

技术规格

模块类型： 中央处理单元

插槽数量： 1（单插槽）

背板支持： 通用背板

协议支持： Modbus RTU 从机， SNP， 串行 I/O

通信端口： （2） 隔离式 RS-232 和 RS485

内部电源： 1.0A @ +5 VDC， 1.25A @ +3.3 VDC

IC695CMU310 CPU模块是GE Fanuc制造的RX3i PacSystems Max-ON和热备用冗余CPU。它旨在通过专用以太网 LAN 进行数据通信。该模块必须与 RX3i 通用背板、以太网模块、90-30 系列扩展背板、PacSystems 设备和 Max-On 软件连接，才能构建完整的 RX3i 系统应用程序。GE IC695CMU310 Max-ON热备用冗余CPU具有高达10 MB的电池备份RAM作为程序存储。该模块的典型布尔执行速度为每 0 个布尔触点或线圈 195.100 毫秒。它提供 2 个嵌入式串行通信端口，即 RS-232 串行通信端口和 RS-485 串行通信端口。

IC695CMU310 Max-ON热备用冗余CPU的设计符合PCI 2.2标准，以满足工业要求。它支持串行通信协议，如 Modbus RTU 从机、SNP 和串行 I/O 协议。该模块的一些功能包括多达 512 个程序块、参考表批量内存访问、10 MB 非易失性闪存用户存储器和自动定位的符号变量。电池组有助于保持存储和内存，即使从设备中断开电源也是如此。有一个 3 位开关控制 CPU 的操作。它还具有用于状态更新的 LED。IC695CMU310 Max-ON热备用冗余CPU使用其背板以太网接口的串行端口与编程器通信。安装前，请确保关闭底板电源。该模块可用于冗余应用，如燃料负载、锅炉系统和备用发电应用。不建议在 SIL 2 或 SIL 3 应用中使用该模块。

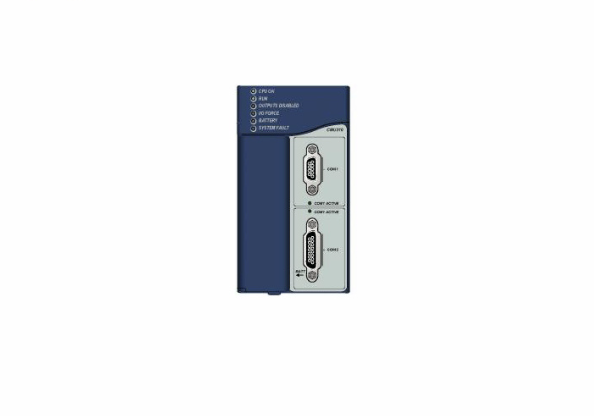

GE IC695CMU310 中央处理单元 热备用冗余CPU

【英文介绍】

Technical specification

Module type: Central processing unit

Number of slots: 1 (single slot)

Backplane Support: Universal backplane

Protocol support: Modbus RTU slave, SNP, Serial I/O

Communication ports: (2) isolated RS-232 and RS485

Internal power supply: 1.0A@ + 5VDC, 1.25A@ + 3.3VDC

The IC695CMU310 CPU module is an RX3i PacSystems Max-ON and hot standby redundant CPU manufactured by GE Fanuc. It is designed for data communication over a dedicated Ethernet LAN. The module must be connected to the RX3i universal backplane, the Ethernet module, the 90-30 Series expansion backplane, PacSystems devices, and Max-On software to build a complete RX3i system application. The GE IC695CMU310 Max-ON Hot standby redundant CPU has up to 10 MB of battery backup RAM as program storage. The typical Boolean execution speed for this module is 195.100 milliseconds per 0 Boolean contacts or coils. It provides two embedded serial communication ports, namely RS-232 serial communication port and RS-485 serial communication port.

The IC695CMU310 Max-ON hot standby redundant CPU is designed to comply with PCI 2.2 standards to meet industrial requirements. It supports serial communication protocols such as Modbus RTU slave, SNP, and serial I/O protocols. Some of the features of the module include up to 512 program blocks, reference table batch memory access, 10 MB of non-volatile flash user memory, and automatic positioning of symbol variables. The battery pack helps maintain storage and memory even when power is disconnected from the device. There is a 3-bit switch that controls CPU operations. It also has leds for status updates. The IC695CMU310 Max-ON hot standby redundant CPU communicates with the programmer using the serial port of its backplane Ethernet interface. Before installation, ensure that the baseplate is powered off. The module can be used in redundant applications such as fuel loads, boiler systems and backup power generation applications. This module is not recommended for use in SIL 2 or SIL 3 applications.

GE IC695CMU310 中央处理单元 热备用冗余CPU
