GE IC695ALG616 模拟输入模块 单端输入

【产品详情】

技术规格

模块类型： 模拟输入

输入数量： 16 个单端或 8 个差分

内部电源： 3.3V： 450mA;5V： 600 mA

插槽数量： 1（单插槽）

电流范围： 0-20毫安， 4-20毫安， +/-20毫安

电压范围： +/-10V， 0-10V， +/-5V， 0-5V，1-5V

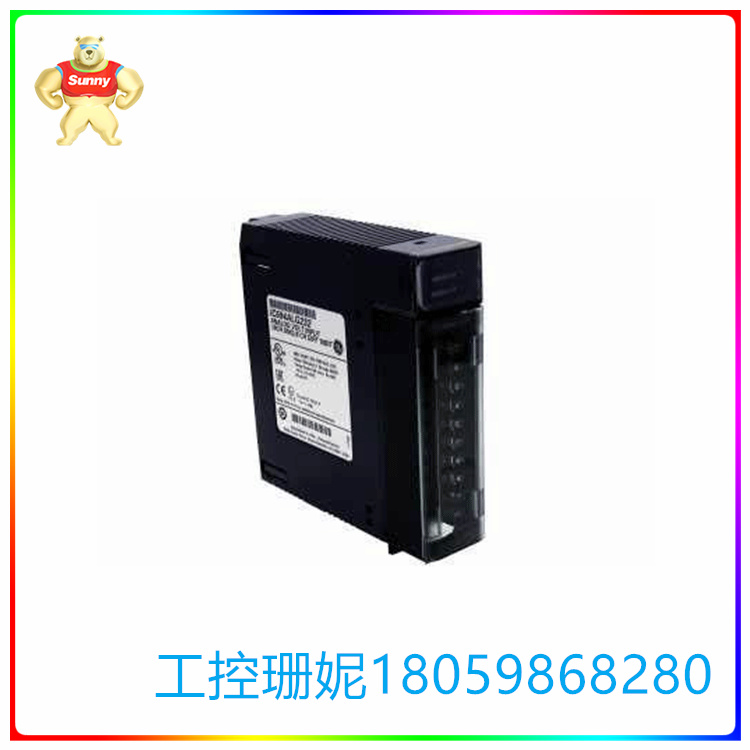

该IC695ALG616是由艾默生自动化制造的模拟输入模块，前身由GE智能平台（GE IP）制造。如果配置为单端输入，此模块功能可以提供十六 （16） 个模拟输入通道，或者提供八 （8） 个用于差分接线的模拟输入。它带有一个内置的模数转换器（ADC），输出转换分辨率为24位。

IC695ALG616输入通道与模拟电流和电压信号的导线兼容。该模块的接受器电流信号包括0至20mA，4至20mA，±20mA电流信号和±10V，0至10V，±5V，0至5V，1至5V电压信号。转换后的模拟数据使用32位寄存器保存为浮点16位IEEE数据或32位整数。该模块的每个通道都有可配置的通道过滤器，以稳定和最小化波动，从而对过程有用。可配置的输入滤波器包括 8Hz、12Hz、16Hz、40Hz、200Hz 和 500Hz。 该模块的参数使用 Proficy 机器版 （PME） 编程软件进行配置。

无需跳线和 DIP 开关来指示该模块的操作。此外，该模块能够在每次启动期间执行自动校准。嵌入式模块保护包括开路检测、过压和过流保护。除了这些保护设置外，每个通道都可以单独配置警报设置，特别是极低、低、高和非常高警报。正和负变化率也可以包含在此模块的报警功能中，而模块故障也可以配置为报告给主机CPU。

GE IC695ALG616 模拟输入模块 单端输入

【英文介绍】

Technical specification

Module type: analog input

Number of inputs: 16 single-ended or 8 differential

Internal power supply: 3.3V: 450mA; 5V: 600 mA

Number of slots: 1 (single slot)

Current range: 0-20 MA, 4-20 MA, +/-20 Ma

Voltage range: +/-10V, 0-10V, +/-5V, 0-5V, 1-5V

The IC695ALG616 is an analog input module manufactured by Emerson Automation and formerly manufactured by GE Intelligence Platform (GE IP). If configured as a single-ended input, this module feature can provide sixteen (16) analog input channels, or eight (8) analog inputs for differential wiring. It comes with a built-in analog-to-digital converter (ADC) and an output conversion resolution of 24 bits.

The IC695ALG616 input channel is compatible with wires for analog current and voltage signals. The module's receiver current signals include 0 to 20mA, 4 to 20mA, ±20mA current signals and ±10V, 0 to 10V, ±5V, 0 to 5V, 1 to 5V voltage signals. The converted analog data is saved as floating-point 16-bit IEEE data or 32-bit integers using 32-bit registers. Each channel of the module has configurable channel filters to stabilize and minimize fluctuations, making it useful for processes. Configurable input filters include 8Hz, 12Hz, 16Hz, 40Hz, 200Hz and 500Hz. The parameters of the module are configured using Proficy Machine Edition (PME) programming software.

Jumpers and DIP switches are not required to indicate the module's operation. In addition, the module is capable of performing automatic calibration during each startup. Embedded module protection includes open circuit detection, overvoltage and overcurrent protection. In addition to these protection Settings, each channel can be individually configured with alarm Settings, especially extremely low, low, high, and very high alarms. The positive-negative rate of change can also be included in the alarm function of this module, while module failures can also be configured to be reported to the host CPU.

GE IC695ALG616 模拟输入模块 单端输入
