GE IC695ACC402 能量包模块 DIN导轨安装

【产品详情】

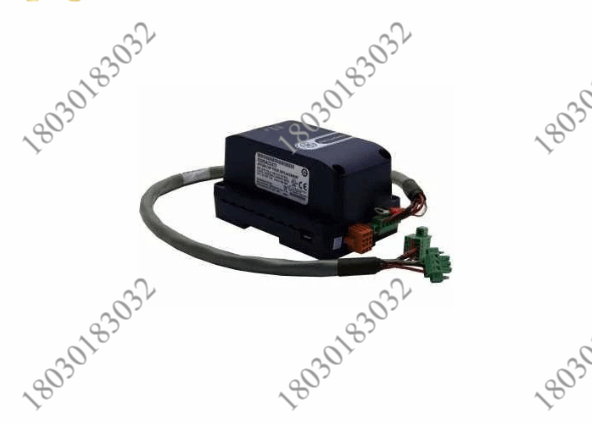

IC695ACC402是一个能量包模块，专门用于PACSystem RX3i的CPE 330控制器。该能量包主要用于提供足够的控制器功率，以允许执行从随机存取存储器（RAM）到非易失性存储器或闪存的存储器内容传输。该能量单元是DIN导轨安装版本，通过尺寸为695英寸（002米）的IC36CBL1连接到合作伙伴控制器。该能量组由 18-30 VDC 的外部电源电压充电，最大功率为 36 瓦。它提供 18-30 VDC 的输出电压范围、2.25 安培的输出电流和 45 瓦的最大输出功率。该能量组的后置跳闸电压为 16.7 VDC，+/- 4%，电容器备用使用寿命为 5 年。将此模块连接到控制器时，请确保未主动向 CPE330 供电。要确保连接安全，请使用预先提供的外加螺钉。该IC695ACC402的工作温度为 -25 至 60°C（32°F 至 140°F），储存温度为 -40 至 85°C（-40°F 至 185°F），相对湿度为 5% 至 95%，无冷凝。在操作期间，该能量组提供转发到控制器的状态信息。此类状态信息包括充电、故障、低电容和完全充电。安装到此能量组的本地 LED 状态指示灯包括输入、状态和输出。IC695ACC402带有可升级的固件。固件由能量包从合作伙伴控制器接收。在固件更新模式下，此模块的所有 LED 指示灯均呈绿色亮起，而在更新失败期间，所有 LED 指示灯均呈绿色亮起。 IC695ACC402 CPU 能量组是 GE Fanuc 制造的 RX3i PACSystems PLC 和 PLC 组件的专用 PLC 组件。

GE IC695ACC402 CPU 能量包专门设计用于仅与 1 个 RX3i CPU 模块（即 RX3i CPE330 CPU）一起运行，并通过在电源故障期间保留 PLC 中的能量来运行。当 PLC 的电源因任何原因丢失时，IC695ACC402 CPU 能量包将启动并保持备用电源足够长的时间，以便 RX3i CPE330 CPU 将数据保存在其用户内存中。CPU通过将这些数据全部从用户存储器写入非易失性存储器来保存这些数据。该CPU也可以配置为从RAM上电，如果以这种方式配置，则当PLC电源恢复时，其用户内存将恢复。

GE Fanuc RX3I PacSystems IC695ACC402 CPU 能量包与 RX3i CPE330 CPU 一起安装，带有特殊的专用电缆，称为 GE IC695CBL002 电缆。使用此专用电缆允许 IC695ACC402 CPU 能量组通过 PLC 背板为其电路充电，还允许 CPU 监控其能量组的状态。当背板断电时，CPU会自动切换到能量包的电源，以确保系统中有一个平滑有序的掉电顺序。IC695ACC402 CPU 能量包随附底座、接地带、CPU 连接器电缆和盖组模块。

GE IC695ACC402 能量包模块 DIN导轨安装

【英文介绍】

The IC695ACC402 is an energy pack module designed specifically for the CPE 330 controller of the PACSystem RX3i. This energy pack is primarily used to provide sufficient controller power to allow the transfer of memory contents from random access memory (RAM) to non-volatile memory or flash memory to be performed. The energy unit is a DIN rail mounted version that connects to the partner controller via the 695 inch (002 m) IC36CBL1. The energy pack is charged by an external supply voltage of 18-30 VDC, with a maximum power of 36 watts. It offers an output voltage range of 18-30 VDC, an output current of 2.25 amps, and a maximum output power of 45 watts. The power pack has a rear-set trip voltage of 16.7 VDC, +/- 4%, and a capacitor standby service life of 5 years. When connecting this module to the controller, make sure that you are not actively supplying power to the CPE330. To ensure a secure connection, use the extra screws provided in advance. The IC695ACC402 operates at -25 to 60°C (32°F to 140°F), is stored at -40 to 85°C (-40°F to 185°F), has a relative humidity of 5% to 95% and is non-condensing. During operation, the energy group provides status information that is forwarded to the controller. Such status information includes charge, fault, low capacitance, and full charge. The local LED status indicator installed to this power pack includes input, status, and output. The IC695ACC402 comes with upgradable firmware. The firmware is received by the energy pack from the partner controller. In firmware update mode, all LED indicators of this module light up green, and during update failure, all LED indicators light up green. The IC695ACC402 CPU power pack is a dedicated PLC component for RX3i PACSystems PLC and PLC components manufactured by GE Fanuc.

The GE IC695ACC402 CPU power pack is specifically designed to operate with only 1 RX3i CPU module, i.e. the RX3i CPE330 CPU, and operates by preserving energy in the PLC during power failure. When the PLC's power supply is lost for any reason, the IC695ACC402 CPU power pack will start and keep the backup power supply long enough for the RX3i CPE330 CPU to save data in its user memory. The CPU saves this data by writing it all from user memory to non-volatile memory. This CPU can also be configured to power on from RAM, and if configured in this way, its user memory will be restored when the PLC power is restored.

The GE Fanuc RX3I PacSystems IC695ACC402 CPU power pack is installed with the RX3i CPE330 CPU with a special dedicated cable called the GE IC695CBL002 cable. Using this dedicated cable allows the IC695ACC402 CPU power pack to charge its circuits through the PLC backplane, and also allows the CPU to monitor the status of its power pack. When the backplane is powered off, the CPU automatically switches to the power supply of the power pack to ensure a smooth and orderly power down sequence in the system. The IC695ACC402 CPU power pack comes with a base, ground strip, CPU connector cable and cover group module.
