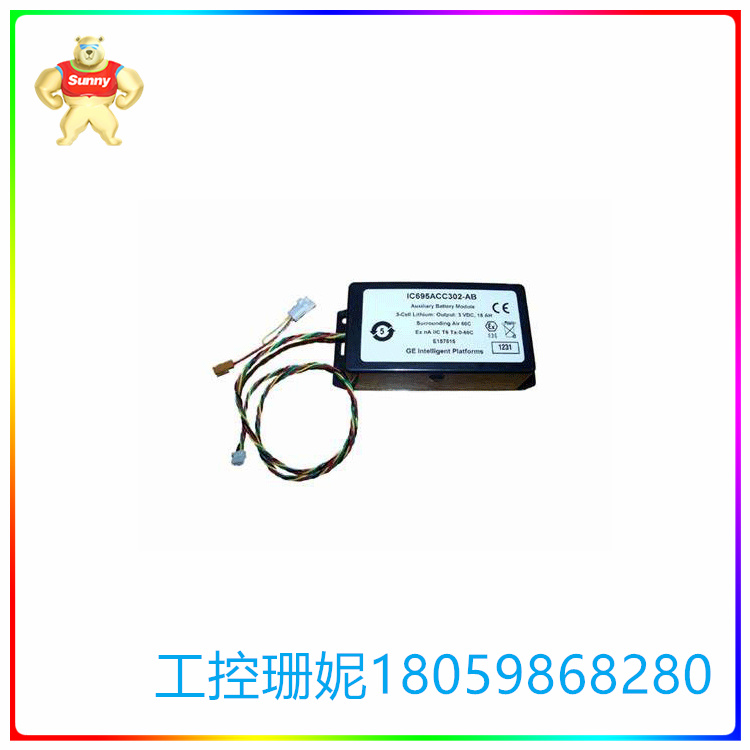

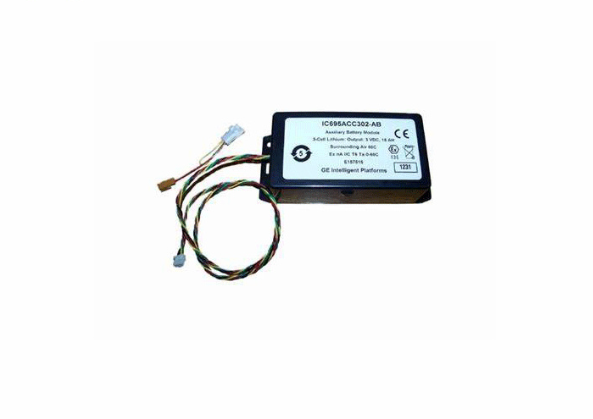

GE lC695ACC302 辅助智能电池模块

【产品详情】

IC695ACC302模块是GE Fanuc制造的RX3i PACSystems Auxiliary Smart Battery Module。它为机器中的易失性内存提供扩展备份。它可靠，并具有“低电量”检测功能。它与不同的RX3i PACSystems设备兼容。该电池是 3 芯锂离子电池，输出电压额定值为 3 伏直流电。它还具有每小时 15 安培的容量。该IC695ACC302是GE智能平台的一部分，主要用于工业领域。周围的空气温度应在 0 到 60 摄氏度之间，以获得最佳操作。电池经过CE认证，并具有不同的工业标准。电池不应暴露在高温和电磁辐射源中。

在安装IC695ACC302电池的过程中，CPU 应通过电源通电。如果在电源关闭时连接电池，电池将开始耗尽。应首先将 4 针 JAE 公连接器连接到电池模块上的 4 针 JAE 母连接器。IC695ACC302电池带有电池监控电路，使操作员能够在电池完全耗尽之前检测到电池电量不足。电池电缆放置在RX3i PACSystems电池仓底部的凹口中。电池重量轻，重224克。它的尺寸为长 5.7 英寸、宽 2.55 英寸和高 1.57 英寸。外壳材料为黑色，由阻燃ABS塑料材料制成。

IC695ACC302电池模块由GE Fanuc制造，是与GE Fanuc RX3i PacSystems系列一起使用的PLC的辅助智能电池模块。该电池提供更长的电池备份时间，并与GE RX3i CPU模块兼容。GE IC695ACC302辅助智能电池模块已通过CE认证，可用于欧盟的工业系统。

GE Fanuc RX3i PacSystems IC695ACC302辅助智能电池模块通过使用使能适配器电缆安装在其预期的 CPU 中。技术人员将适配器电缆一端的 4 针 JAE 公连接器连接到IC4ACC695辅助智能电池模块上的 302 针 JAE 母连接器，并将使能适配器电缆的另一端连接到 CPU。安装 4 针连接器时，电池已启用。如果在CPU断电时将IC695ACC302辅助智能电池模块连接到CPU，电池将开始耗尽，制造商建议在CPU上电时安装新电池，尽可能长时间地保持电池寿命。

GE lC695ACC302 辅助智能电池模块

【英文介绍】

The IC695ACC302 Module is an RX3i PACSystems Auxiliary Smart Battery Module manufactured by GE Fanuc. It provides an extended backup of volatile memory in the machine. It is reliable and has a "low battery" detection function. It is compatible with different RX3i PACSystems devices. The battery is a 3-cell lithium-ion battery with an output voltage rating of 3 volts DC. It also has a capacity of 15 amps per hour. The IC695ACC302 is part of GE's intelligent platform, which is primarily used in the industrial sector. The ambient air temperature should be between 0 and 60 degrees Celsius for optimal operation. The batteries are CE certified and have different industry standards. Batteries should not be exposed to high temperatures and sources of electromagnetic radiation.

During the installation of the IC695ACC302 battery, the CPU should be powered through the power supply. If the battery is connected while the power is off, the battery will begin to drain. The 4-pin JAE male connector should first be connected to the 4-pin JAE female connector on the battery module. The IC695ACC302 battery comes with a battery monitoring circuit that enables the operator to detect low battery power before the battery is completely depleted. The battery cable is placed in a cavity at the bottom of the RX3i PACSystems battery compartment. The battery is lightweight, weighing 224 grams. It measures 5.7 inches long, 2.55 inches wide and 1.57 inches high. The housing material is black and made of flame retardant ABS plastic material.

The IC695ACC302 battery module, manufactured by GE Fanuc, is an auxiliary intelligent battery module for the PLC used with the GE Fanuc RX3i PacSystems family. The battery provides longer battery backup times and is compatible with GE RX3i CPU modules. The GE IC695ACC302 auxiliary intelligent battery module has passed CE certification and can be used in industrial systems in the European Union.

The GE Fanuc RX3i PacSystems IC695ACC302 Auxiliary Smart battery module is installed in its intended CPU by using an enable adapter cable. The technician connects the 4-pin JAE male connector on one end of the adapter cable to the 302-pin JAE female connector on the IC4ACC695 auxiliary smart battery module and connects the other end of the enable adapter cable to the CPU. The battery is enabled when the 4-pin connector is installed. If the IC695ACC302 auxiliary smart battery module is connected to the CPU when the CPU is powered off, the battery will begin to drain, and the manufacturer recommends installing a new battery when the CPU is powered on to preserve the battery life for as long as possible.

GE lC695ACC302 辅助智能电池模块
