GE IC694TBB032 接线端子组件 可编程自动化控制器

【产品详情】

IC694TBB032是一个接线端子组件，主要属于 PACSystem RX3i 可编程自动化控制器 （PAC） 系列。该系列以前由GE智能平台（GE IP）生产，但最近被艾默生自动化收购。该模块是一个 36 针盒式接线端子，带有螺钉式连接。该IC694TBB032设计用于高密度I/O模块，特别是离散输入和输出模块。它还与某些 90-30 系列 I/O 模块兼容。该端子组件由两 （2） 个部件组成，即模块盖和端子块本身。这些组件组装在一起，然后连接到 I/O 模块。信号端接的推荐导线尺寸必须是#14-26美国线规（AWG），实心或绞合铜线。每根导线必须以距尖端 0.310 英寸 o7 7.87 mm 的最大长度剥皮才能正确端接。接线端子底部还配有剥线参考，可用于符合推荐的剥线长度。每个连接必须拧紧至 7 lb-in。IC694TBB032等可拆卸接线端子旨在提供模块化和易于维护。如果模块发生故障，可以轻松更换电子组件，而无需拆卸现有连接。这有效地减少了模块的停机时间或维护时间，并简化了故障排除方法，但是，在更换电子组件时，建议断开模块的电源以防止可能的设备损坏。

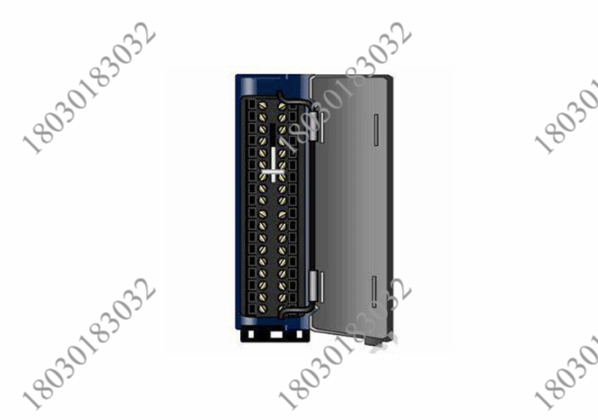

GE Fanuc IC694TBB032接线端子是RX3i系列的接线端子。它配备了 36 个用于连接的引脚。块的前部有一个接线端子门，块的后端采用开放式结构设计。块的外盖具有比内部分更厚的绝缘层，以容纳较粗的电线。接线端子为箱形块，由优质材料制成。它是一种高强度和紧凑的组件。这种箱式接线端子深 0.5 英寸，能够容纳 0.31 英寸的带状电线。IC694TBB032接线端子可与高密度模块和 I/O 模块配合使用。盒子上有用于连接螺丝端子。

GE IC694TBB032 接线端子组件 可编程自动化控制器

【英文介绍】

The IC694TBB032 is a terminal assembly that belongs primarily to the PACSystem RX3i Programmable Automation Controller (PAC) family. The series was previously produced by GE Intelligent Platforms (GE IP), but was recently acquired by Emerson Automation. The module is a 36-pin box terminal with screw connections. The IC694TBB032 is designed for use in high-density I/O modules, especially discrete input and output modules. It is also compatible with certain 90-30 series I/O modules. The terminal assembly consists of two (2) components, namely, the module cover and the terminal block itself. These components are assembled together and then connected to the I/O module. Recommended wire sizes for signal terminations must be #14-26 American Wire Gauge (AWG), solid or stranded copper wire. Each wire must be peeled at a maximum length of 0.310 "o7 7.87mm from the tip to be terminated correctly. A stripping reference is also provided at the bottom of the terminal to conform to the recommended stripping length. Each connection must be tightened to 7 lb-in. Detachable terminals such as IC694TBB032 are designed to be modular and easy to maintain. If a module fails, electronic components can be easily replaced without removing existing connections. This effectively reduces module downtime or maintenance time and simplifies troubleshooting methods, however, when replacing electronic components, it is recommended to disconnect the power to the module to prevent possible equipment damage.

The GE Fanuc IC694TBB032 terminal is a terminal of the RX3i series. It is equipped with 36 pins for connection. The front of the block has a terminal door, and the back end of the block has an open structure design. The outer cover of the block has a thicker insulation layer than the inner part to accommodate thicker wires. Terminal blocks are box shaped blocks made of high quality materials. It is a high-strength and compact component. The box terminals are 0.5 inches deep and can accommodate 0.31 inches of ribbon wire. The IC694TBB032 terminals can be used with high-density modules and I/O modules. The box is provided with screw terminals for connection.

GE IC694TBB032 接线端子组件 可编程自动化控制器
