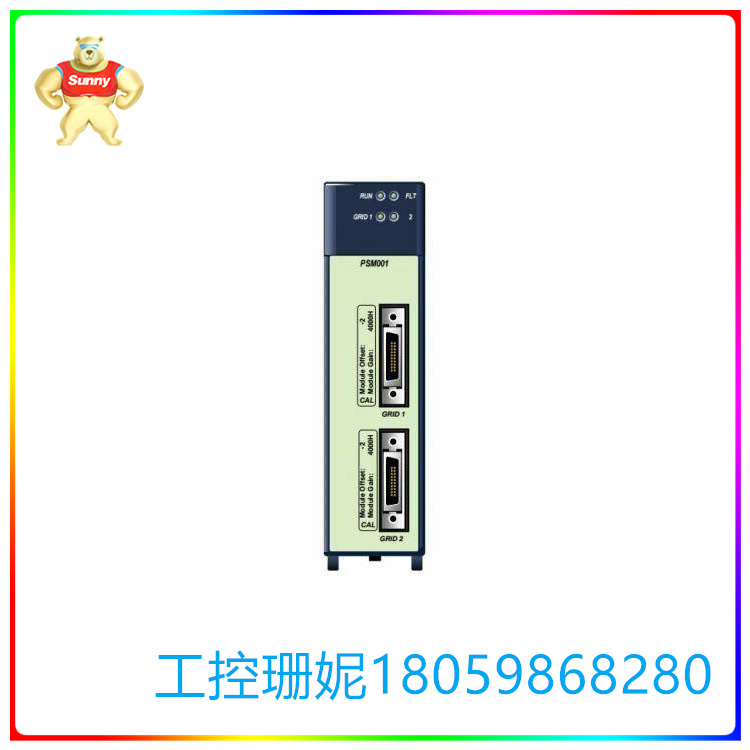

GE IC694PSM001  电源同步和测量模块

【产品详情】

技术规格

模块类型： 功率同步和测量

输入电压范围 20 至 600 VAC

频率范围： 40 至 70 Hz

输入电流范围： 0 至 7.5 安培

# 输出数量： 1

功耗： 190 mA，5 V 总线

GE Fanuc IC694PSM001模块是替代PSM模块，也称为电源同步和测量模块。它由GE Fanuc制造，作为GE RX3i PacSystems的替代PSM模块。IC694PSM001 PSM 模块的目的是监控 2 个独立的不同三相电网。通过使用其DSP或数字信号处理器技术，它可以在每个电网上连续处理3个电流输入和4个电压输入。该电源同步和测量模块测量两个电网上的均方根功率、均方根电压、有效值电流、频率以及相电压之间的相位关系。IC3PSM694 PSM 模块与单相电源系统以及星形三相和三角型三相电源系统兼容。

GE Fanuc RX3i PacSystems IC694PSM001更换 PSM 模块非常适合故障监控、用于同步电网和发电机的发电机控制、监控和报告电力消耗以及降低负载和需求损失成本等应用。该 PSM 模块连接到端子组件和接口电缆，以形成完整的 PSM 系统。IC694PSM001 PSM 模块应始终安装在 RX3i PLC 的主 CPU 机架或背板中。它支持RX3i背板中的热插拔，也就是说，当背板通电时，该模块可以安装在背板上或从背板上卸下，而不会损坏模块或背板或伤害用户。固件版本为 3.7 或更高版本的 RX70i CPU 与此 PSM 模块兼容。

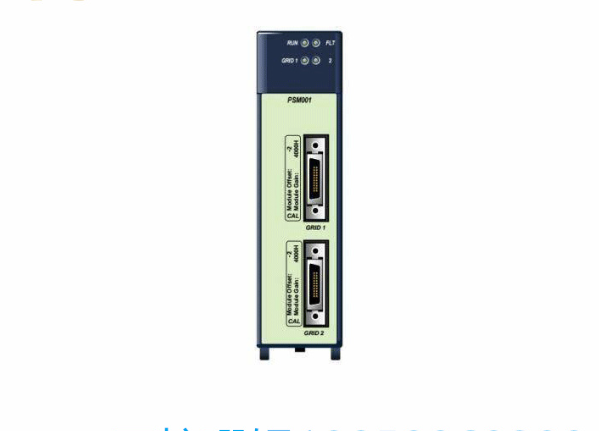

GE IC694PSM001  电源同步和测量模块

【英文介绍】

Technical specification

Module type: Power synchronization and measurement

Input voltage range 20 to 600 VAC

Frequency range: 40 to 70 Hz

Input current range: 0 to 7.5 amps

# Output quantity: 1

Power consumption: 190 mA, 5 V bus

The GE Fanuc IC694PSM001 module is a replacement for the PSM module, also known as the Power synchronization and measurement module. It is manufactured by GE Fanuc as a replacement PSM module for GE RX3i PacSystems. The IC694PSM001 PSM module is designed to monitor 2 separate three-phase power grids. By using its DSP or digital signal processor technology, it can continuously process three current inputs and four voltage inputs on each grid. The power synchronization and measurement module measures RMS power, RMS voltage, RMS current, frequency, and the phase relationship between phase voltages on two grids. The IC3PSM694 PSM module is compatible with single-phase power systems as well as star and triangle three-phase power systems.

GE Fanuc RX3i PacSystems IC694PSM001 Replacement PSM modules are ideal for applications such as fault monitoring, generator control for synchronizing power grids and generators, monitoring and reporting power consumption, and reducing load and demand loss costs. The PSM module is connected to the terminal assembly and interface cable to form a complete PSM system. The IC694PSM001 PSM module should always be installed in the main CPU rack or backplane of the RX3i PLC. It supports hot swappable in the RX3i backplane, meaning that when the backplane is powered on, the module can be installed on or removed from the backplane without damaging the module or backplane or harming the user. RX70i cpus with firmware version 3.7 or higher are compatible with this PSM module.
