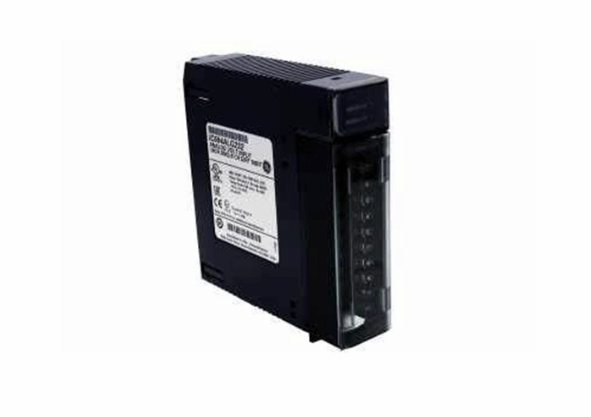

GE IC694MDL940 继电器输出模块  数字 I/O

【产品详情】

技术规格

额定电压： 24 伏直流电，120/240 伏交流电

# 输出数量： 16（4组4路输出）

频率： 50/60Hz（仅限交流电）

输出电流： 每点 2A，每普通点 4A

输出电压范围： 5 至 30VDC，5 至 250 VAC

功耗： 7mA 来自 5V 总线，135mA 来自 24V 继电器

IC694MDL940是艾默生自动化 PACSystem RX16i 系列的十六 （3） 点继电器输出模块，以前由 GE Intelligent Platforms（GE IP） 制造。该模块具有单插槽宽度，占用背板的单个插槽，并带有四 （4） 组输出，每组有四 （4） 个继电器输出。

IC694MDL940继电器触点为常开 （N.O.） 触点或 A 型触点。每个输出触点的额定最大负载为 2 安培的导通占空比，每个输出的最大负载最大，而每个输出组设计的最大输出电流为 4 安培。此外，该模块的最小负载为 10 mA，最大浪涌电流为 5 安培。每个继电器输出通道的响应时间均为 15 ms，两个信号转换的响应时间均为最大值，模块的功耗为 7 mA @ 5VDC 总线电压，背板上继电器 135V 总线的功耗为 24 mA。这些额定功耗基于所有输出通道通电时。

IC694MDL940带有十六 （16） 个状态 LED 指示灯，每个指示灯代表各个通道。通电的 LED 表示通电的输出，而断电的 LED 则表示其他输出。该模块不附带内部安装的保险丝用于通道保护，因此，用户可能需要安装外部保险丝来保护模块。

该IC694MDL940具有 250 VAC 连续和 1500 VAC 1 分钟隔离额定值，从现场到背板，从帧到地，而通道到通道隔离为 250 VAC 连续;1500 VAC 持续 1 分钟。

GE IC694MDL940 继电器输出模块  数字 I/O

【英文介绍】

Technical specification

Rated voltage: 24 volts DC, 120/240 volts AC

# Output quantity: 16 (4 groups of 4 outputs)

Frequency: 50/60Hz (AC only)

Output current: 2A per point, 4A per ordinary point

Output voltage range: 5 to 30VDC, 5 to 250 VAC

Power consumption: 7mA from 5V bus, 135mA from 24V relay

The IC694MDL940 is a sixteen (3) point relay output module in the Emerson Automation PACSystem RX16i family, previously manufactured by GE Intelligent Platforms (GE IP). The module has a single slot width, occupies a single slot in the backplane, and comes with four (4) sets of outputs, each with four (4) relay outputs.

The IC694MDL940 relay contacts are normally open (N.O.) contacts or A-type contacts. Each output contact is rated for a maximum on-duty ratio of 2 amps with a maximum load per output, and each output group is designed for a maximum output current of 4 amps. In addition, the module has a minimum load of 10 mA and a maximum inrush current of 5 amps. The response time of each relay output channel is 15 ms, the response time of both signal converters is the maximum, the power consumption of the module is 7 Ma@5VDC bus voltage, and the power consumption of the relay 135V bus on the backplane is 24 mA. These power ratings are based on when all output channels are energized.

The IC694MDL940 comes with sixteen (16) status LED indicators, each representing a channel. A powered LED represents a powered output, while a powered LED represents other outputs. The module does not come with an internally mounted fuse for channel protection, so users may need to install an external fuse to protect the module.

The IC694MDL940 has 250 VAC continuous and 1500 VAC 1-minute isolation ratings, from field to backplane, frame to ground, while channel to channel isolation is 250 VAC continuous; 1500 VAC lasts 1 minute.
