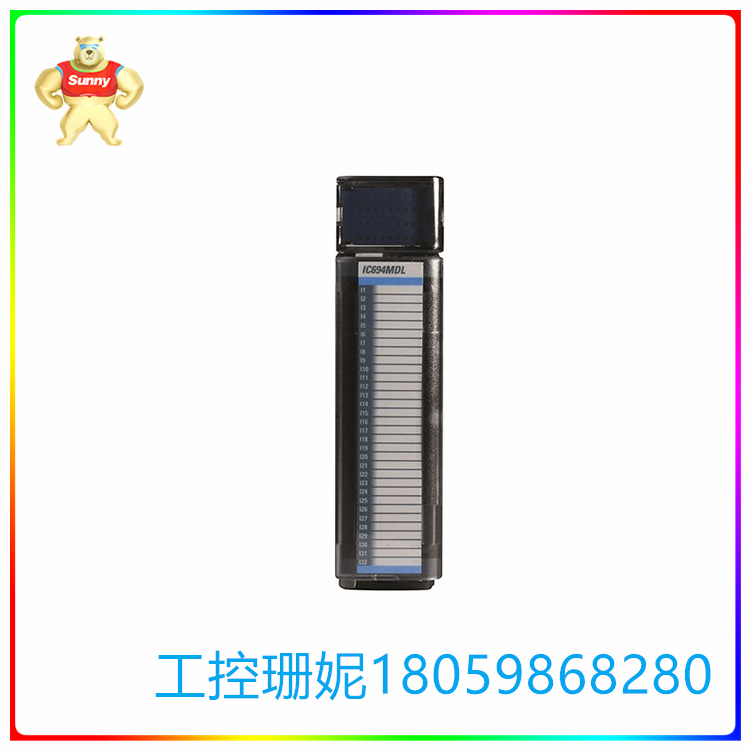

GE IC694MDL646 具有正逻辑或负逻辑

【产品详情】

技术规格

额定电压： 24 伏直流电

# 输入数： 16 （1 分组）

频率： 不适用

输入电流： 7毫安

输入电压范围： 0 至 +30V 直流

功耗： 80 mA （采用 5V 总线），125 mA （采用 24V 电源）

RX694i PacSystem 系列的 GE Fanuc IC646MDL3 模块的额定电压为 24 伏直流电，具有正逻辑或负逻辑。该模块还具有 7 毫安的输入电流、0 至 30 伏直流电的输入电压范围，80 伏总线的额定功耗为 5 毫安，125 伏电源的额定功耗为 24 毫安。该模块的开和关响应时间的平均响应时间均为 1 毫秒。该模块的其他输入特性包括 11.5 至 30 V DC 的导通电压、0 至 5 V DC 的台外电压、最小 3.2 毫安的导通电流和最大 1.1 毫安的关断电流。输入特性使该模块与其他输入设备兼容，如电子接近开关、限位开关和按钮。RX694i PacSystem系列的GE Fanuc IC646MDL3模块具有由外部电源供电的现场设备。

GE IC694MDL646 具有正逻辑或负逻辑

【英文介绍】

Technical specification

Rated voltage: 24 volts DC

# Number of inputs: 16 (1 group)

Frequency: Not applicable

Input current: 7 MA

Input voltage range: 0 to +30V DC

Power consumption: 80 mA (5V bus), 125 mA (24V power supply)

The GE Fanuc IC646MDL3 module of the RX694i PacSystem series is rated at 24 volts DC and has either positive or negative logic. The module also has an input current of 7 MA, an input voltage range of 0 to 30 volts DC, and a rated power consumption of 5 mA for an 80-volt bus and 24 ma for a 125-volt supply. The module has an average response time of 1 millisecond for both on and off response times. Other input features of the module include on-voltage from 11.5 to 30 V DC, off-board voltage from 0 to 5 V DC, on-current from a minimum of 3.2 MA, and turn-off current from a maximum of 1.1 mA. The input characteristics make the module compatible with other input devices such as electronic proximity switches, limit switches and buttons. The GE Fanuc IC646MDL3 module of the RX694i PacSystem series has field equipment powered by an external power supply.

GE IC694MDL646 具有正逻辑或负逻辑
