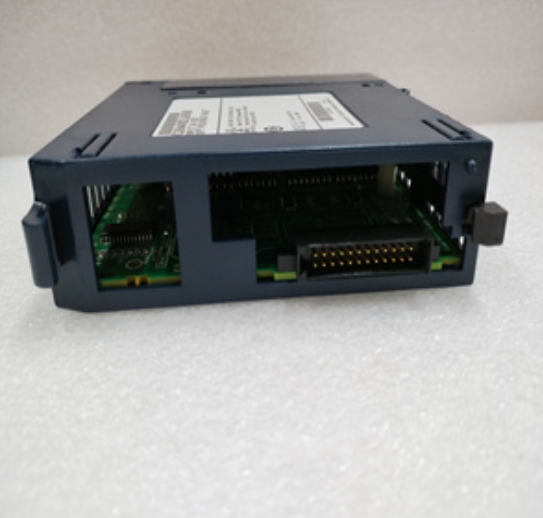

GE IC694MDL635 输入模块的额定电压为 125 伏直流电

【产品详情】

额定电压： 125 伏直流电

# 输入数： 16 （1 分组）

频率： 不适用

输入电流： 1.97毫安

输入电压范围： 0 至 +150VDC

功耗： 80 mA（5V 总线），31.5 mA（用户电源）

GE RX694i PacSystem 系列的 GE Fanuc IC635MDL3 输入模块的额定电压为 125 伏直流电，额定电压下的输入电流为 1.97 毫安，输入电压范围在 0 至 150 伏直流之间，80 伏总线电源的功耗为 5 毫安，用户提供的电源的功耗为 31.5 毫安。该模块在单个组中带有 16 个输入点，并带有共享电源输入端子。该模块连接为负逻辑或正逻辑。该输入模块具有各种输入特性，例如 90 至 150 伏直流之间的导通电压、0 至 30 伏直流之间的关断电压、1.41 毫安的导通电流、0.46 毫安的关断电流、典型值为 8 毫秒的导通响应时间和 8 毫秒（典型值）的关断状态响应时间。

GE Fanuc IC694MDL635输入模块需要用户提供的电源来操作现场设备。它有 16 个绿色 LED，显示 LED 标记为 1 到 16 的所有输入点的开或关状态。该输入模块是高压模块，由模块标签顶部和底部的红色条带表示。IC694MDL635输出模块的工作温度范围为 32 至 140 华氏度（0 至 60 摄氏度）。它还具有 -40 至 185 华氏度（-40 至 85 摄氏度）的存储温度范围和 5% 至 95% 的可容忍湿度范围，无冷凝。它的抗振额定值为 10 至 57 赫兹，根据 JISC0 和 IEC0524-0-006 标准，峰值位移峰值为 0911.60068 毫米（2.6 英寸）。根据 JISC15 和 IEC11-0912-60068 标准，该模块还具有 2 G 的抗冲击性，持续 27 毫秒。

GE IC694MDL635 输入模块的额定电压为 125 伏直流电

【英文介绍】

Rated voltage: 125 volts DC

# Number of inputs: 16 (1 group)

Frequency: Not applicable

Input current: 1.97 MA

Input voltage range: 0 to +150VDC

Power consumption: 80 mA (5V bus), 31.5 mA (user power)

The GE Fanuc IC635MDL3 input module of the GE RX694i PacSystem series has a rated voltage of 125 VDC, an input current of 1.97 mA at rated voltage, and an input voltage range of 0 to 150 VDC. The 80-volt bus power supply consumes 5 mA and the user-supplied power supply consumes 31.5 mA. The module has 16 input points in a single group with shared power input terminals. The module is connected to negative or positive logic. The input module has various input characteristics, such as an on-voltage between 90 and 150 volts DC, a turn-off voltage between 0 and 30 volts DC, a on-current of 1.41 mA, a turn-off current of 0.46 mA, a typical on-response time of 8 ms, and a turn-off state response time of 8 ms (typical).

The GE Fanuc IC694MDL635 input module requires a user-supplied power supply to operate the field equipment. It has 16 green leds that show the on or off status of all input points with leds labeled 1 to 16. The input module is a high voltage module and is represented by red strips at the top and bottom of the module label. The IC694MDL635 output module operates in a temperature range of 32 to 140 degrees Fahrenheit (0 to 60 degrees Celsius). It also has a storage temperature range of -40 to 185 degrees Fahrenheit (-40 to 85 degrees Celsius) and a tolerable humidity range of 5% to 95% without condensation. It has an anti-vibration rating of 10 to 57 Hz and a peak displacement peak of 0911.60068 mm (2.6 in) according to JISC0 and IEC0524-0-006 standards. According to the JISC15 and IEC11-0912-60068 standards, the module also has 2 G impact resistance, lasting 27 milliseconds.

GE IC694MDL635 输入模块的额定电压为 125 伏直流电
