【产品详情】

GE Fanuc IC694MDL634是一款24 VDC 8点POS/NEG逻辑输入模块，属于Rx3i PACSystem系列。运行此模块所需的电源为 24 VDC。它部署了八个可由负逻辑或正逻辑驱动的输入。当与正逻辑一起使用时，它将电流从器件吸收到用户公共。当模块与负逻辑一起使用时，情况正好相反。

正逻辑输入模块将电流从输入器件吸收到用户公共或负电源总线。输入设备连接在正电源总线和输入端子之间。GE Fanuc IC694MDL634有八个输入，从单个电源接收电流。此电源为 24 VDC，可为连接到模块的设备供电。当IC694MDL634连接到PLC系统的扩展背板时，其电源来自背板。但是，当模块连接到通用背板时，需要外部+24 VDC电源。与输入兼容的设备包括按钮、限位开关和电子接近开关。

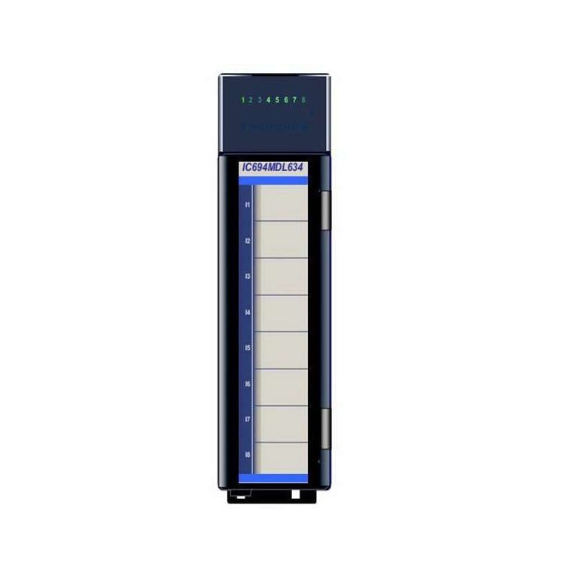

GE Fanuc IC694MDL634输入模块有 8 个绿色 LED，显示模块输入从 1 到 8 点的开和关状态。该GE输入模块是低压模块，由模块顶部的蓝色带表示。输入模块的工作温度范围为 0 至 60 摄氏度（32 至 140 华氏度），存储温度范围为 -40 至 85 摄氏度（-40 至 185 华氏度）。它还具有 5% 至 95% 的可耐受非冷凝湿度范围。根据 IEC15-11-60068 和 JISC2 标准，该模块的抗冲击等级为 27 G，持续 0912 毫秒，振动额定值为 10 至 57 赫兹，峰值位移为 0.0524 毫米（0.006 英寸），最大加速度为 57 至 500 赫兹，最大加速度为 1.0 G，以满足 IEC60068-2-6 和 JISC0911 标准。

GE IC694MDL634 逻辑输入模块 运行此模块所需的电源

【英文介绍】

The GE Fanuc IC694MDL634 is a 24-VDC 8-point POS/NEG logic input module belonging to the Rx3i PACSystem family. The power required to run this module is 24 VDC. It deploys eight inputs that can be driven by either negative or positive logic. When used with positive logic, it absorbs current from the device to the user public. The opposite is true when modules are used with negative logic.

The positive logic input module absorbs current from the input device to the user's common or negative power bus. The input device is connected between the positive power bus and the input terminal. The GE Fanuc IC694MDL634 has eight inputs and receives current from a single power supply. This power supply is 24 VDC and can power devices connected to the module. When the IC694MDL634 is connected to the expansion backplane of the PLC system, its power comes from the backplane. However, when the module is connected to a universal backplane, an external +24 VDC power supply is required. Input compatible devices include buttons, limit switches, and electronic proximity switches.

The GE Fanuc IC694MDL634 input module has 8 green leds that show the on and off status of the module input from 1 to 8. The GE input module is a low-voltage module, which is represented by the blue band on the top of the module. The operating temperature range of the input module is 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) and the storage temperature range is -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). It also has a tolerance range of 5% to 95% non-condensing humidity. According to IEC15-11-60068 and JISC2 standards, the module has a shock resistance rating of 27 G, a duration of 0912 ms, a vibration rating of 10 to 57 Hz, a peak displacement of 0.0524 mm (0.006 in), and a maximum acceleration of 57 to 500 Hz. The maximum acceleration is 1.0G to meet IEC60068-2-6 and JISC0911 standards.

GE IC694MDL634 逻辑输入模块 运行此模块所需的电源
