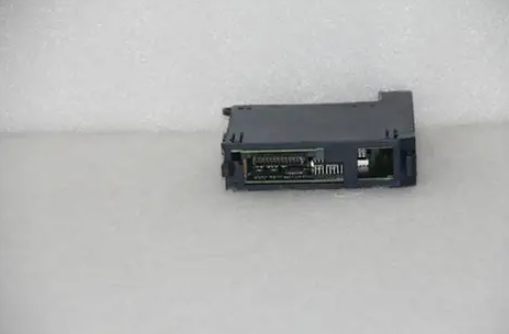

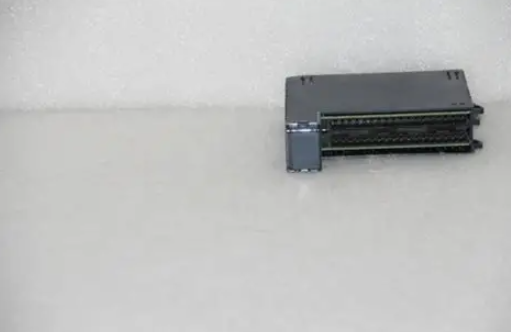

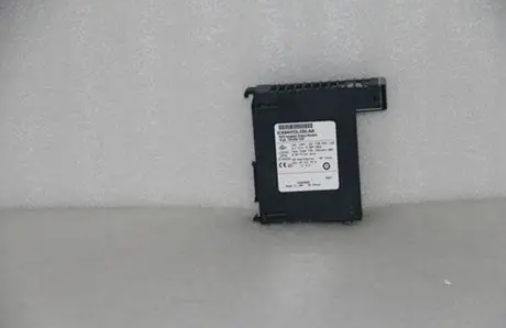

GE IC694MDL350 RX3i 可编程自动化控制器 交流输出模块

【产品详情】

技术规格

额定电压： 120/240 伏交流电

# 输出数量： 16

频率： 50/60赫兹

输出电流： 每点最大 2A，每个模块最大 5A

输出电压范围： 74 - 265 伏交流电

功耗： 315 mA（5V 总线）

IC694MDL350是来自 PACSystem RX3i 可编程自动化控制器 （PAC） 平台的交流输出模块，该平台以前由 GE Intelligent Platforms（现由艾默生自动化）提供。该模块配有十六 （16） 个独立隔离的输出通道，可提供 74-265 VAC 的输出电压范围和 47-63 Hz 的频率范围。当所有输出均处于活动状态时，该模块的功耗为315 mA，由5VDC背板电源供电。在 2 摄氏度的温度下工作时，模块的最大额定输出电流为 30 A，在 1 摄氏度的温度下为 60 A。该IC694MDL350具有现场侧至逻辑侧和组间隔离额定值，隔离额定值为 250 VAC、连续和 1500 VAC，持续 1 分钟。该模块的集成诊断功能包括报告移除或断开的接线端子。对于现场设备的端接，IC694MDL350需要使用兼容的可移动端子底座之一，例如目录号为 IC694TBB032 的盒式、部件号 IC694TBB132 的扩展盒式、订单号为 IC694TBS032 的弹簧式或目录号为 IC694TBS132 的扩展弹簧式。此模块占用 RX3i 底板的单个插槽，必须与固件版本为 3.3 或更高版本的 RX50i CPU 一起安装。此模块与 90-30 系列平台不兼容。向该模块提供单独的状态指示器。LED 的编号代表特定的模块通道，还带有一个“TB”LED，当模块未检测到接线端子时，该 LED 将通电。

IC694MDL350输出模块带有 LED 指示灯，可显示模块每个输出点的打开和关闭状态。它还具有接线端子 LED 指示灯，因为该模块可以容纳可拆卸接线端子。当“接线端子”LED 指示灯变为绿色时，表示接线端子已安装。当此 LED 变为红色时，表示不存在接线端子，或者接线端子已断开连接。模块门顶部有一条红色带，表示它是一个高压输出模块。GE Fanuc IC694MDL350输出模块的工作温度范围为0至60摄氏度，可存储在-40至85摄氏度的温度范围内。

GE IC694MDL350 RX3i 可编程自动化控制器 交流输出模块

【英文介绍】

Technical specification

Rated voltage: 120/240 volts AC

# Output quantity: 16

Frequency: 50/60 Hz

Output current: Max 2A per point, Max 5A per module

Output voltage range: 74-265 volts AC

Power consumption: 315 mA (5V bus)

The IC694MDL350 is an AC output module from the PACSystem RX3i Programmable Automation Controller (PAC) platform, previously offered by GE Intelligent Platforms (now by Emerson Automation). The module is equipped with sixteen (16) independently isolated output channels that provide an output voltage range of 74-265 VAC and a frequency range of 47-63 Hz. When all outputs are active, the module consumes 315 mA and is powered by a 5VDC backplane supply. The maximum rated output current of the module is 30 A when operating at 2 degrees Celsius and 60 A at 1 degree Celsius. The IC694MDL350 has field side to logical side and intergroup isolation ratings of 250 VAC, continuous and 1500 VAC for 1 minute. The module's integrated diagnostic capabilities include reporting of removed or disconnected terminals. For terminating field devices, the IC694MDL350 requires the use of one of the compatible removable terminal bases. For example, a box with catalog number IC694TBB032, an extension box with part number IC694TBB132, a spring type with order number IC694TBS032, or an extension spring type with catalog number IC694TBS132. This module occupies a single slot on the RX3i baseboard and must be installed with an RX50i CPU with firmware version 3.3 or later. This module is not compatible with the 90-30 series platforms. Provide a separate status indicator to this module. The LED is numbered to represent a specific module channel and also comes with a "TB" LED that is energized when the module does not detect the terminal.

The IC694MDL350 output module has an LED indicator that shows the on and off status of each output point of the module. It also has terminal LED indicators, as the module can accommodate detachable terminal blocks. When the terminal LED indicator turns green, the terminal is installed. When this LED turns red, it indicates that there is no terminal, or the terminal has been disconnected. A red band at the top of the module door indicates that it is a high voltage output module. The GE Fanuc IC694MDL350 output module operates in a temperature range of 0 to 60 degrees Celsius and can be stored in a temperature range of -40 to 85 degrees Celsius.
