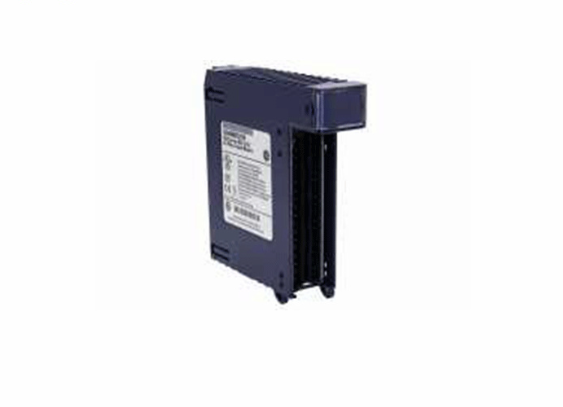

GE IC694MDL330  RX3i 包装系统 输出模块

【产品详情】

技术规格

额定电压： 120/240 伏交流电

# 输出数量： 8 （2 组，每组 4 人）

频率： 50/60赫兹

输出电流： 最大 20 安培

输出电压范围： 85 至 264 VAC

功耗： 160 mA，5V 总线

GE Fanuc 的IC694MDL330是一个 120/240 伏交流电、2 安培输出模块。它提供八个输出点，分为两组，每组四个，每组都有自己的共同点。两个独立组的两个公共空间未在模块内部连接。每个组可以在交流电源的不同相位上运行。还有一个 5 安培保险丝，可保护两组免受电源故障的影响。此外，RC缓冲器有助于消除可能来自电源线的电噪声。

IC694MDL330模块的响应时间为 1 ms ON，694/330 周期关闭。此模块需要使用用户提供的交流电源。直流电源不是一种选择。位于IC694MDL330模块背面的指示灯 LED 提醒用户输出性能和熔断保险丝。此外，还有两个红色波段提醒用户IC3MDL160模块是高压的。此输出模块可在任何 Rx<>i 系统 I/O 插槽中使用。所有输出通电时，其功耗为 <>mA。

GE Fanuc IC2MDL694输出模块上的 330 组输出由每个公共点的 5 安培额定保险丝保护。每个输出都有一个RC缓冲器，用于在瞬态电噪声的情况下提供保护。该输出模块的工作温度范围为 0 至 60 摄氏度（32 至 140 华氏度）。它可以安全地储存在 -40 至 85 摄氏度（-40 至 185 华氏度）的储存温度范围内，以及 5% 至 95% 的非冷凝湿度范围内。IC694MDL330输出模块的振动额定值为 10 至 57 赫兹，峰值位移为 0.0524 毫米（0.006 英寸），符合 JISC0911 和 IEC60068-2-6 标准。根据JISC15和 IEC11-0912-60068 标准，该模块还具有 2 G 的冲击等级，持续 27 毫秒。

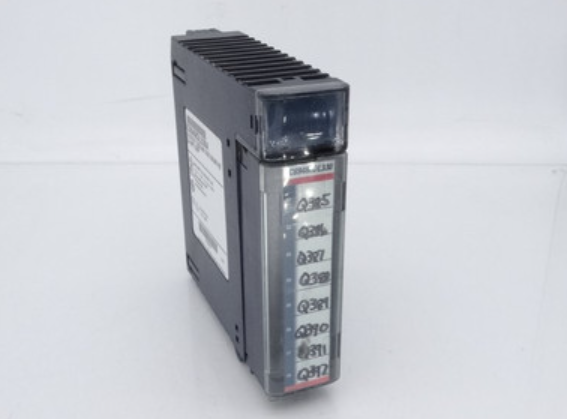

GE IC694MDL330  RX3i 包装系统 输出模块

【英文介绍】

Technical specification

Rated voltage: 120/240 volts AC

# Output quantity: 8 (2 groups, 4 people per group)

Frequency: 50/60 Hz

Output current: Maximum 20 amps

Output voltage range: 85 to 264 VAC

Power consumption: 160 mA, 5V bus

The GE Fanuc IC694MDL330 is a 120/240 VAC, 2 amp output module. It provides eight output points, divided into two groups of four, each with its own commonality. The two common Spaces of two separate groups are not connected inside the module. Each group can operate on different phases of the AC power supply. There is also a 5 amp fuse that protects both sets from power failures. In addition, the RC buffer helps eliminate electrical noise that may come from the power cord.

The response time of the IC694MDL330 module is 1 ms ON, and the shutdown period is 694/330. This module requires user-supplied AC power. Dc power is not an option. An indicator LED located on the back of the IC694MDL330 module alerts the user to output performance and blown fuses. In addition, there are two red bands to remind users that the IC3MDL160 module is high voltage. This output module can be used in any Rx<>i system I/O slot. When all outputs are energized, their power consumption is <>mA.

The 330 sets of outputs on the GE Fanuc IC2MDL694 output module are protected by 5 amp rated fuses at each common point. Each output has an RC buffer to provide protection in case of transient electrical noise. The output module operates in a temperature range of 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). It can be safely stored in a storage temperature range of -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit), and in a non-condensing humidity range of 5% to 95%. The IC694MDL330 output module has a vibration rating of 10 to 57 Hz and a peak displacement of 0.0524 mm (0.006 in) in compliance with JISC0911 and IEC60068-2-6 standards. According to the JISC15 and IEC11-0912-60068 standards, the module also has a 2 G impact rating lasting 27 milliseconds.

GE IC694MDL330  RX3i 包装系统 输出模块
