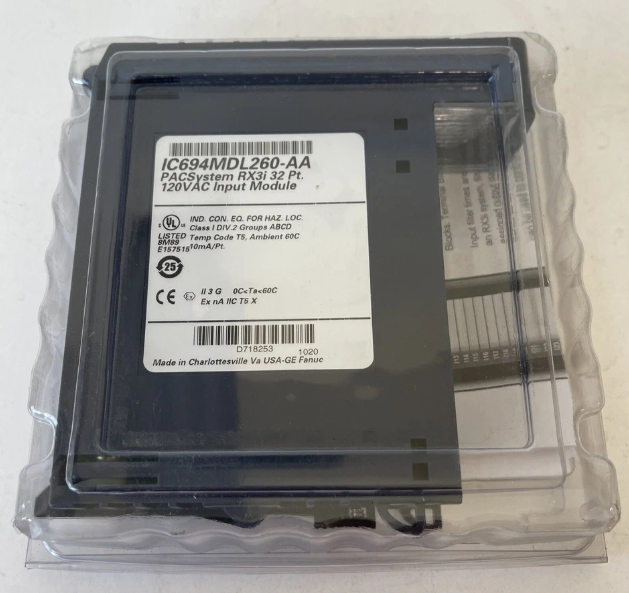

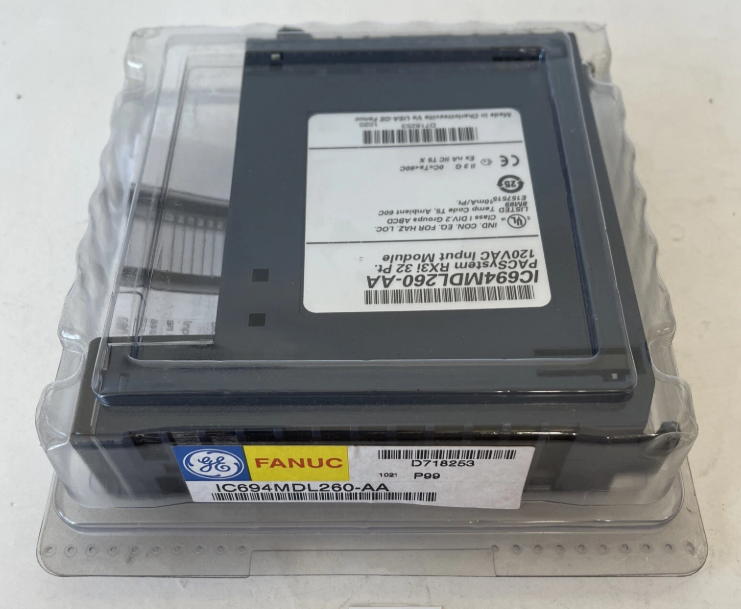

GE IC694MDL260 数字量 I/O 可用于接线端子

【产品详情】

额定电压： 120 伏交流电

# 输入数： 32 （4 组，每组 8 人）

频率： 50/60赫兹

输入电流： 额定电压下为 7 mA

输入电压范围： 0 至 132 VAC

功耗： 220 mA，5V 总线

GE Fanuc IC694MDL260是Rx32i PACSystem的3点输入模块。120 VAC 模块配备 32 个离散输入点，分为四个隔离组，每组 694 个。演示了四个输入组之间的隔离，并且组内的所有输入都引用到同一用户公共连接。IC260MDL694模块可用于接线端子，包括：箱式（IC032TBB694）、加长箱式（IC132TBB694）、弹簧式（IC032TBS694）或加长弹簧式（IC132TBS<>）。扩展块允许增加护罩深度，通常是现场布线到交流设备所必需的。

IC694MDL260 分立输入模块具有 264 VAC 和 1500 VAC 隔离额定值的组间连续隔离额定值，持续一 （1） 分钟。它能够检测接线端子的存在，并将其报告给RX3i主机控制器。当所有输入被激活时，该模块消耗 220 mA @ 5VDC 总线电压的输入电流。

IC694MDL260输入模块由GE Fanuc制造，工作电压为120伏。输入模块有32个输入点，与RX3i PacSystem PLC系统兼容。IC694MDL260模块的额定电流为 7 毫安，工作频率范围为 50 至 60 赫兹。IC694MDL260输入模块需要一个接线端子，用于标准底座和扩展底座的操作。模块的32个输入点排列成4组，每组8个，每组4个隔离输入点。所有 4 个输入组都是隔离的，但输入都是为了支持公共连接。

IC694MDL260输入模块的背面有一个DIP开关，当输入处于最左侧位置时，也可用于更改输入滤波器时间。模块的现场到背板隔离为264伏交流电，最大隔离电压为1500伏交流电，持续1分钟。模块的输入滤波时间范围在 20 毫秒到 2540 毫秒之间，增量为 20 毫秒。模块的导通状态输入电压范围为 70 至 132 伏交流电，关断电压范围为 0 至 20 伏交流电。开/关响应时间最长达到 840 毫秒。IC694MDL260输入模块应在 0 到 50 摄氏度的温度范围内运行。在系统操作过程中，可以使用具有分配存储器的控制器修改输入滤波时间。新设置等于新时间值除以 20。

GE IC694MDL260 数字量 I/O 可用于接线端子

【英文介绍】

Rated voltage: 120 volts AC

# Number of inputs: 32 (4 groups, 8 people each)

Frequency: 50/60 Hz

Input current: 7 mA at rated voltage

Input voltage range: 0 to 132 VAC

Power consumption: 220 mA, 5V bus

The GE Fanuc IC694MDL260 is a 3-point input module for the Rx32i PACSystem. The 120 VAC module is equipped with 32 discrete input points divided into four isolation groups of 694 each. Demonstrates isolation between four input groups, and all inputs within the group refer to the same user common connection. The IC260MDL694 module can be used for terminals, including: box type (IC032TBB694), extended box type (IC132TBB694), spring type (IC032TBS694) or extended spring type (IC132TBS<>). Expansion blocks allow for increased shield depth and are often necessary for field wiring to AC equipment. Note: Terminals must be ordered separately.

The IC694MDL260 discrete input module has an inter-group continuous isolation rating of 264 VAC and 1500 VAC isolation ratings for one (1) minute. It is capable of detecting the presence of terminal blocks and reporting them to the RX3i host controller. When all inputs are activated, the module consumes an input current of 220 mA @ 5VDC bus voltage.

The IC694MDL260 input module is manufactured by GE Fanuc and operates at 120 volts. The input module has 32 input points and is compatible with the RX3i PacSystem PLC system. The IC694MDL260 module has a rated current of 7 MA and an operating frequency range of 50 to 60 Hz. The IC694MDL260 input module requires a terminal for standard base and extension base operation. The 32 input points of the module are arranged into 4 groups of 8 each, with 4 isolated input points in each group. All four input groups are isolated, but the input is intended to support a common connection.

The IC694MDL260 input module has a DIP switch on the back which can also be used to change the input filter time when the input is in the leftmost position. The field to backplane isolation of the module is 264 volts AC, and the maximum isolation voltage is 1500 volts AC for 1 minute. The input filtering time of the module ranges from 20 ms to 2540 ms, with increments of 20 ms. The on-state input voltage range of the module is 70 to 132 volts AC, and the turn-off voltage range is 0 to 20 volts AC. On/off response time up to 840 ms. The IC694MDL260 input module should operate in a temperature range of 0 to 50 degrees Celsius. During system operation, the input filtering time can be modified using a controller with an allocation memory. The new setting is equal to the new time value divided by 20.
