GE IC694MDL250 隔离输入模块 RC缓冲器

【产品详情】

额定电压： 120 伏交流电

# 输入数： 16

频率： 50/60赫兹

输入电流： 额定电压下为 7 mA

输入电压范围： 0 至 132 VAC

功耗： 220 mA，5V 总线

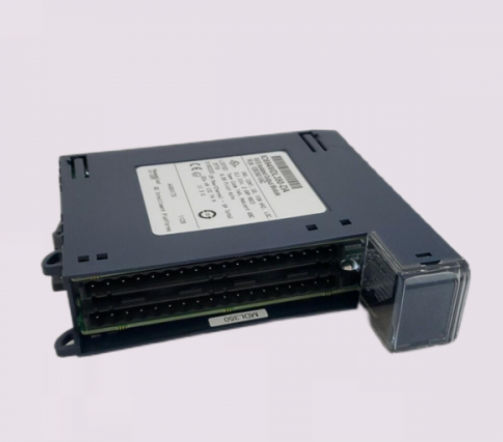

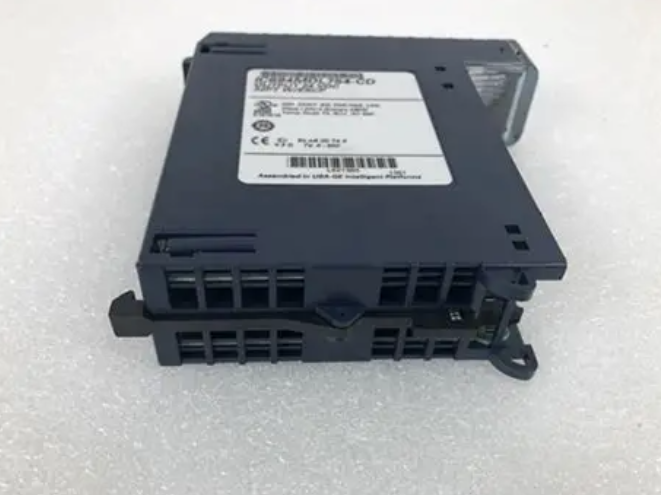

IC694MDL250是GE Fanuc的120 VAC 16点隔离输入模块。16 个隔离输入点可用于交流电源的不同相位或由同一电源供电。RC 缓冲器可保护输入免受电源线上可能存在的瞬态电噪声的影响。模块上的输入滤波时间可以在应用程序操作期间更改。不需要 DIP 开关设置。IC694MDL250模块可与箱式 （IC694TBB032）、加长箱式 （IC694TBB132）、弹簧式 （IC694TBS032） 或加长弹簧式 （IC694TBS132） 接线端子一起使用。扩展接线端子提供额外的护罩深度，通常需要与交流设备的现场接线。

IC694MDL250是由GE Fanuc设计和制造的16点输入模块。该模块支持高速串行总线，能够进行高速数据传输。输入模块以 120 伏交流电的输入电压额定值运行，需要 CPU 固件版本 3.5 或更高版本才能正常运行。所有 16 个点都位于模块的前面板上，每个点都配备了一个 LED，当连接到该特定点时，该 LED 会亮起。IC694MDL250 16 点输入模块与 RX3i PACSystems PLC 系统以及具有普通底座和扩展底座的串行总线兼容。该 16 点输入模块的频率额定值为 50 至 60 赫兹。

IC694MDL250输入模块可以使用DIN导轨或面板安装底座轻松安装。它已通过认证，可在 1 类 2 分区环境中安全运行。由于它采用开放式架构，因此该模块应在没有EMC噪声的干净环境中使用。RX3i PLC系统是一种高效的控制系统，可提供高性能并支持PAC发动机。该系统配备了PROFINET，可提供实时分布式I / O。IC694MDL250输入模块具有热插拔功能，支持不同的应用需求。该模块还配备了一个接线端子 LED，可亮起绿色或红色。为了保护模块免受瞬态电噪声的影响，包括一个RC缓冲器。该模块可以使用输入模块上的RS-485端口连接到编程终端或个人计算机。

GE IC694MDL250 隔离输入模块 RC缓冲器

【英文介绍】

Rated voltage: 120 volts AC

# Input number: 16

Frequency: 50/60 Hz

Input current: 7 mA at rated voltage

Input voltage range: 0 to 132 VAC

Power consumption: 220 mA, 5V bus

The IC694MDL250 is GE Fanuc's 120 VAC 16-point isolation input module. 16 isolated input points can be used for different phases of the AC power supply or powered by the same power supply. The RC buffer protects the input from transient electrical noise that may be present on the power line. The input filtering time on the module can be changed during application operation. No DIP switch setup is required. The IC694MDL250 module can be used with box type (IC694TBB032), extended box type (IC694TBB132), spring type (IC694TBS032) or extended spring type (IC694TBS132) terminals. Extended terminals provide additional shield depth and are often required for field wiring with AC equipment.

The IC694MDL250 is a 16-point input module designed and manufactured by GE Fanuc. The module supports high-speed serial bus and can carry out high-speed data transmission. The input module operates at an input voltage rating of 120 volts AC and requires CPU firmware version 3.5 or higher to function properly. All 16 points are located on the front panel of the module, and each point is equipped with an LED that lights up when connected to that particular point. The IC694MDL250 16-point input module is compatible with RX3i PACSystems PLC systems and serial buses with common and extended docks. The 16-point input module has a frequency rating of 50 to 60 Hz.

The IC694MDL250 input module can be easily installed using a DIN rail or panel mount base. It is certified to operate safely in a Class 1, 2-partition environment. Because of its open architecture, the module should be used in a clean environment without EMC noise. The RX3i PLC system is an efficient control system that delivers high performance and supports PAC engines. The system is equipped with PROFINET, which provides real-time distributed I/O. The IC694MDL250 input module is hot-swappable and supports different application requirements. The module is also equipped with a terminal LED that lights up green or red. To protect the module from transient electrical noise, an RC buffer is included. The module can be connected to a programming terminal or a personal computer using the RS-485 port on the input module.
