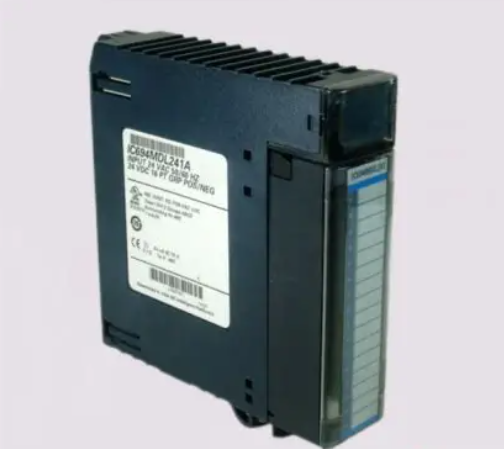

GE IC694MDL241  输入模块 拇指开关和传感器

【产品详情】

额定电压： 24 伏交流或直流

# 输入数： 16名（<>名）

频率： 50/60 赫兹（交流）

输入电流： 7毫安

输入电压范围： 0 至 +30VDC 或 0 至 +30VAC

功耗： 80 mA （采用 5V 总线），125 mA （采用 24V 电源）

IC694MDL241模块是GE Fanuc制造的输入模块。该模块的额定电流为 7 毫安，在 24 伏交流/直流电压电源下运行。它是与RX16i PLC系统兼容的3点输入模块。该模块有助于连接 PLC 系统和其他输入设备，包括拇指开关和传感器。该正/负输入模块通过使用公共输入电源端子组合在一起。电源应通过底板供电。IC694MDL241输入模块的前部配备了 16 个不同的 LED，这些 LED 与 16 个点中的每一个相关联。当使用特定输入进行连接时，Eack LED 呈绿色亮起。该模块是低压模块，体积小巧。模块的场到背板电压为 250 伏交流电，帧隔离电压额定值为 1500 伏交流电。

GE Fanuc RX3i IC694MDL241 16 点输入模块可轻松连接不同的控制平台、输入模块和监控设备。该模块从背板的 80 伏总线消耗 5 毫安的电流，从隔离的 125 伏总线消耗 24 毫安的电流。该模块可轻松安装在 RX3i PLC 系统的任何 I/O 插槽中。IC694MDL241输入模块使用可控硅输出类型，无极性。该模块具有主动诊断系统，可在运行期间监控模块。它可以轻松检测不需要的系统事件，并通过警报提醒操作员。模块中的警报可以由操作员根据需要设置和调整。

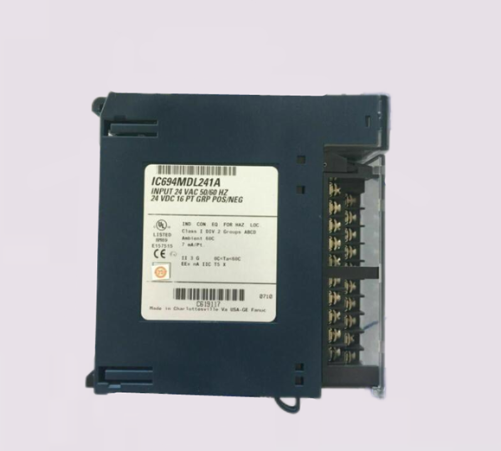

GE IC694MDL241  输入模块 拇指开关和传感器

【英文介绍】

Rated voltage: 24 volts AC or DC

# Number of entries: 16 (<> names)

Frequency: 50/60 Hz (AC)

Input current: 7 MA

Input voltage range: 0 to +30VDC or 0 to +30VAC

Power consumption: 80 mA (5V bus), 125 mA (24V power supply)

The IC694MDL241 module is an input module manufactured by GE Fanuc. The module is rated at 7 MA and operates on a 24 volt AC/DC power supply. It is a 3-point input module compatible with the RX16i PLC system. The module facilitates the connection of the PLC system and other input devices, including thumb switches and sensors. The positive/negative input modules are combined by using common input power supply terminals. The power supply should be supplied through the baseplate. The front of the IC694MDL241 input module is equipped with 16 different leds that are associated with each of the 16 points. The Eack LED lights up green when connecting with a specific input. The module is a low-voltage module with small size. The module has a field to backplane voltage of 250 volts AC and a frame isolation voltage rating of 1500 volts AC.

The GE Fanuc RX3i IC694MDL241 16-point input module makes it easy to connect different control platforms, input modules and monitoring devices. The module consumes 5 milliamps of current from the 80 volt bus in the backplane and 24 milliamps of current from the isolated 125 volt bus. The module can be easily installed in any I/O slot of the RX3i PLC system. The IC694MDL241 input module uses a thyristor output type without polarity. The module has an active diagnostic system that monitors the module during operation. It can easily detect unwanted system events and alert the operator with alerts. Alarms in the module can be set and adjusted by the operator as needed.

GE IC694MDL241  输入模块 拇指开关和传感器
