GE IC694MDL230 输入模块 该模块用于高速传输数据和信息

【产品详情】

额定电压： 120 伏交流电

# 输入数： 8（隔离）

频率： 50/60赫兹

输入电流： 14.5毫安

输入电压范围： 0 至 132 伏交流电

功耗： 60 mA，5 V 总线

 GE Fanuc IC694MDL230输入模块是一个 8 点输入模块。它与GE RX3i设备兼容。输入模块的主要功能是连接PLC设备和其他输入设备，可能包括开关，传感器和按钮。它的额定电压为 120 伏。该模块用于高速传输数据和信息。它还允许更快的吞吐量。该输入模块具有热插拔功能，支持各种电流容量。输入模块带有正逻辑。IC694MDL230 8 点输入模块的最大额定电流为 60 毫安，来自 5 伏总线。电源必须由操作员提供。

IC694MDL230具有无功输入电路，这意味着电路由电阻器和电容器组成。该模块的输入特性允许与各种设备兼容，如限位开关、按钮和接近开关。IC694MDL230的电源由用户提供。需要注意的是，该模块仅使用交流电源运行;直流电源不适用。

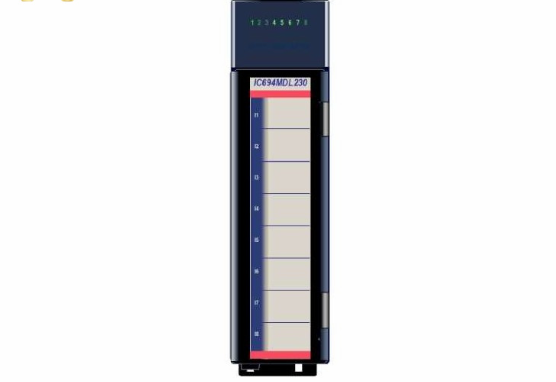

该模块在块上有八个绿色 LED，用于指示八个点的 ON 或 OFF 状态。模块上的红色条带警告用户IC694MDL230是高压输入模块。该模块可安装在 Rx3i 系统的任何插槽上。

IC694MDL230输入模块可以使用面板或DIN导轨安装底座轻松安装。该模块已通过UL 508标准认证，相当于CSA标准。它设计为在 1 级 2 级环境中运行。该模块具有现代诊断功能，可确保操作期间的灵活性。它旨在满足各种应用需求。IC694MDL230输入模块的响应时间在 30 到 45 毫秒之间。模块的运行频率为 50 至 60 赫兹。模块的前部有 8 个不同的 LED，显示 8 个输入点是打开还是关闭。每个输入点都有自己的 LED。背板和模块框架的场电压分别为 250 伏交流电和 1500 伏交流电。

GE IC694MDL230 输入模块 该模块用于高速传输数据和信息

【英文介绍】

Rated voltage: 120 volts AC

# Number of inputs: 8 (isolated)

Frequency: 50/60 Hz

Input current: 14.5 MA

Input voltage range: 0 to 132 volts AC

Power consumption: 60 mA, 5 V bus

The GE Fanuc IC694MDL230 input module is an 8-point input module. It is compatible with GE RX3i devices. The main function of the input module is to connect PLC devices to other input devices, which may include switches, sensors and buttons. It is rated at 120 volts. This module is used for high-speed transmission of data and information. It also allows for faster throughput. The input module is hot-swappable and supports various current capacities. The input module has positive logic. The IC694MDL230 8-point input module has a maximum rated current of 60 MA from a 5 volt bus. Power must be provided by the operator.

The IC694MDL230 has a reactive input circuit, which means that the circuit consists of resistors and capacitors. The input characteristics of the module allow compatibility with various devices such as limit switches, buttons and proximity switches. The power supply for the IC694MDL230 is provided by the user. It should be noted that the module only uses AC power to operate; Dc power supply is not applicable.

The module has eight green leds ON the block to indicate the ON or OFF status of the eight points. The red strip on the module warns users that the IC694MDL230 is a high voltage input module. The module can be installed in any slot of the Rx3i system.

The IC694MDL230 input module can be easily installed using a panel or DIN rail mounting base. The module is certified to UL 508 standard, equivalent to CSA standard. It is designed to operate in a level 1, level 2 environment. The module has modern diagnostic functions to ensure flexibility during operation. It is designed to meet a variety of application needs. The response time of the IC694MDL230 input module is between 30 and 45 milliseconds. Modules operate at a frequency of 50 to 60 Hertz. The front of the module has eight different leds that show whether the eight input points are on or off. Each input point has its own LED. The backplane and the module frame have field voltages of 250 volts AC and 1500 volts AC, respectively.

GE IC694MDL230 输入模块 该模块用于高速传输数据和信息
