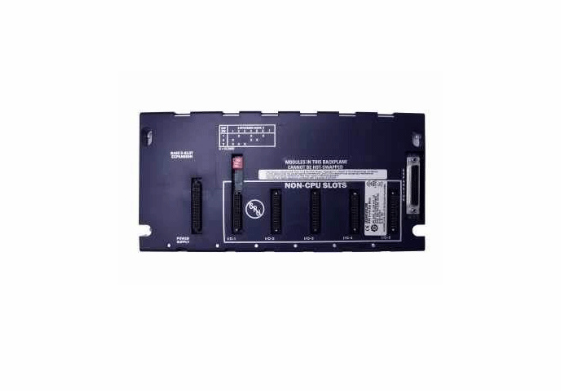

GE IC694CHS398 串行扩展背板

【产品详情】

模块类型： 标准 I/O

背板支持： 仅高速串行

插槽数量： 5

距离： 长达 50 英尺

尺寸： 5.12 x 10.43 x 5.59 英寸（高 x 宽 x 深）

使用的内部电源： 170 毫安 @ 5 伏直流

IC694CHS398背板由GE Fanuc制造，是串行扩展背板。该扩展背板可以连接到GE Fanuc RX3i PLC中的通用背板，以扩展PLC的应用功能，并允许其容纳比通用背板本身容纳的更多的I / O模块。像IC694CHS398串行扩展背板这样的扩展背板还允许PLC系统包含需要安装在与通用背板及其模块分开的位置的模块。IC694CHS398串行扩展底板有5个插槽。它被设计成连接到具有12个插槽或16个插槽的GE通用背板。

IC694CHS398是由GE Fanuc为RX5i系列制造的3插槽串行扩展背板，可容纳多达七个Rx3i背板和/或90-30系列背板的任意组合。 背板的长、宽、高分别为 5.12 x 10.43 x 5.59 英寸。额定电流为 170 mA，吸收 5 VDC 电压。需要注意的是，在模块安装之前，用户必须在IC694CHS398背板上设置机架编号选择DIP开关。此外，不允许在扩展背板上热安装和拆卸模块。每个背板上都有一个总线扩展连接器，用于连接扩展电缆（可选）。连接电缆不能超过 50 英尺或 15 米。

GE Fanuc IC694CHS398串行扩展背板可支持最大 50 英尺的连接器电缆长度。此扩展底板最左侧的插槽用于托管串行扩展电源。电源可以是常规电源，如额定电压为 694 至 321 伏交流电和 120 伏直流电的IC240PWR125电源，也可以是高容量电源，如额定电压为 694 至 330 伏交流电和 120 伏直流电的IC240PWR125电源。在接通电源时，切勿安装或卸下安装在IC694CHS398串行扩展背板上的模块，因为此扩展底板上不支持热插拔。IC694CHS398串行扩展背板的最大负载能力为 170 毫安或 0.85 瓦，电压为 5 伏直流。

GE IC694CHS398 串行扩展背板

【英文介绍】

Module type: Standard I/O

Backplane support: high-speed serial only

Number of slots: 5

Distance: Up to 50 feet

Dimensions: 5.12 x 10.43 x 5.59 inches (H x W x D)

Internal power supply used: 170 MA @ 5 V DC

The IC694CHS398 backplane, manufactured by GE Fanuc, is a serial expansion backplane. The expansion backplane can be connected to the universal backplane in the GE Fanuc RX3i PLC to expand the application functionality of the PLC and allow it to accommodate more I/O modules than the universal backplane itself can accommodate. Expansion backplanes like the IC694CHS398 Serial expansion backplane also allow the PLC system to include modules that need to be installed in a location separate from the general purpose backplane and its modules. The IC694CHS398 serial expansion baseboard has five slots. It is designed to be attached to a GE universal backplane with 12 or 16 slots.

The IC694CHS398 is a 3-slot serial expansion backplane manufactured by GE Fanuc for the RX5i series that can accommodate up to seven Rx3i backplanes and/or any combination of the 90-30 series backplanes. The length, width, and height of the backplane are 5.12 x 10.43 x 5.59 inches. The rated current is 170 mA, absorbing 5 VDC voltage. It should be noted that before the module is installed, the user must set the rack number select DIP switch on the IC694CHS398 backplane. In addition, hot installation and removal of modules on the expansion backplane is not allowed. There is a bus expansion connector on each backplane for connecting the expansion cable (optional). The connecting cable must not exceed 50 feet or 15 meters.

The GE Fanuc IC694CHS398 Serial expansion backplane supports connector cable lengths up to 50 feet. The leftmost slot on this expansion backboard is used to host the serial expansion power supply. The power supply can be a conventional power supply, such as the IC240PWR125 power supply rated for 694 to 321 volts AC and 120 volts DC, or a high-capacity power supply, such as the IC240PWR125 power supply rated for 694 to 330 volts AC and 120 volts DC. Do not install or remove the module installed on the IC694CHS398 serial expansion backplane when it is powered on because the expansion backplane does not support hot swap. The IC694CHS398 Serial expansion backplane has a maximum load capacity of 170 MA or 0.85 watts and a voltage of 5 volts DC.
