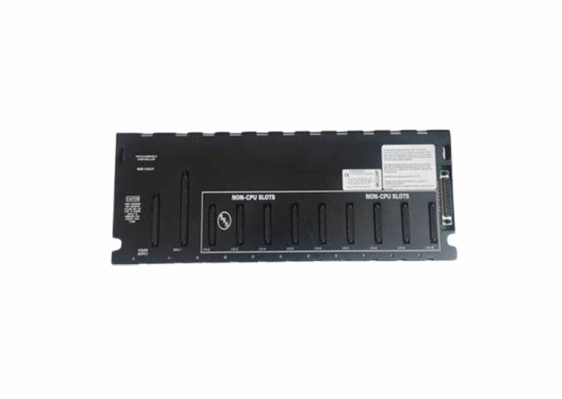

GE IC694CHS392 RX3i可编程自动化控制器 用于 10 插槽串行扩展背板

【产品详情】

模块类型： 标准 I/O

背板支持： 仅高速串行

插槽数量： 10

距离： 长达 50 英尺

尺寸： 5.12 x 17.44 x 5.59 英寸（高 x 宽 x 深）

使用的内部电源： 150 毫安 @ 5 伏直流

该IC694CHS392是PACSystem RX3i可编程自动化控制器（PAC）平台的一部分。该硬件专门用于 10 插槽串行扩展背板，允许安装额外的 I/O 模块，从而允许将更多 I/O 设备集成到控制系统中。IC694CHS392使用延长电缆连接到 CPU 背板。相应的串行扩展电缆具有目录号 IC693CBL302，最大电缆长度为 15 米或 50 英尺。最多可以将七 （7） 个串行扩展背板连接到托管 CPU 的背板。如果只使用扩展背板，而不考虑安装的背板数量，则从CPU到最后一个扩展背板的最大距离不得超过15米或50英尺 IC694CHS392可以与各种背板互连，例如目录号为IC5CHS694的398插槽背板或目录号为IC90CHS30的693-392系列扩展背板。只要满足电缆长度，就可以使用背板的任意组合，并在最后一个背板上安装一个目录号为IC693ACC307的终端电阻，表示连接结束。IC694CHS392需要使用电源为已安装的模块提供本地电源。兼容电源包括 RX3i 串行扩展电源、120/240 VAC、125 VDC，部件号 IC694PWR321;高容量 120/240 VAC，125 VDC 电源，目录号 IC694PWR330;和订单号IC24PWR694的大容量 331 VDC 电源;此串行扩展背板通过面板安装到盘柜子面板上，通过提供的安装卡舌固定。

IC694CHS392背板由GE Fanuc设计和制造，是GE Fanuc RX3i PACSystems PLC中的串行扩展背板。该串行扩展背板是构建RX3i PLC的基础的一部分。它有10个插槽，可以安装不同的模块。常规 PLC 只有 1 个通用背板构建，但扩展系统或扩展 PLC 具有 1 个通用背板和至少 1 个远程背板或 1 个扩展背板，例如 IC694CHS392 串行扩展背板作为其基础。当IC694CHS392串行扩展背板连接到通用背板时，两个背板总共可容纳19个模块，可以是模拟、分立或特殊功能模块。

GE Fanuc RX3i IC694CHS392串行扩展背板可以位于距离通用背板 50 英尺或 15 米的地方，通用背板通过带有终端电阻的扩展电缆连接到该背板。此扩展背板可以安装在带有前置安装适配器支架的 19 英寸机架的正面，也可以安装在带有嵌入式安装适配器支架的 19 英寸机架内。IC694CHS392串行扩展底板中最左侧的插槽用于托管串行扩展电源。这些串行扩展电源可以是普通电源或高容量电源。此底板不支持热插入或热拔出。它带有一个用于选择机架编号的 DIP 开关，在安装任何模块之前，需要正确设置此开关。

GE IC694CHS392 RX3i可编程自动化控制器 用于 10 插槽串行扩展背板

【英文介绍】

Module type: Standard I/O

Backplane support: high-speed serial only

Number of slots: 10

Distance: Up to 50 feet

Dimensions: 5.12 x 17.44 x 5.59 inches (H x W x D)

Internal power supply used: 150 MA @ 5 V DC

The IC694CHS392 is part of the PACSystem RX3i Programmable Automation Controller (PAC) platform. The hardware is specifically designed for a 10-slot serial expansion backplane that allows additional I/O modules to be installed, allowing more I/O devices to be integrated into the control system. The IC694CHS392 uses an extension cable to connect to the CPU backplane. The corresponding serial extension cable has the catalog number IC693CBL302 and has a maximum cable length of 15 meters or 50 feet. Up to seven (7) serial expansion backplanes can be connected to the backplane hosting the CPU. If only expansion backplanes are used, regardless of the number of backplanes installed, the maximum distance from the CPU to the last expansion backplane must not exceed 15 meters or 50 feet. IC694CHS392 can interconnect with various backplanes. For example, the midplane in slot 398 whose directory number is IC5CHS694 or the 693-392 series expansion midplane whose directory number is IC90CHS30. Any combination of backplanes can be used as long as the cable length is satisfied, and a terminal resistor with directory number IC693ACC307 is installed on the last backplane to indicate the end of the connection. The IC694CHS392 requires power supplies to provide local power for the installed module. Compatible power supply includes RX3i serial expansion power supply, 120/240 VAC, 125 VDC, part number IC694PWR321; High capacity 120/240 VAC, 125 VDC power supply, catalog number IC694PWR330; Large capacity 331 VDC power supply with order number IC24PWR694; The serial expansion backplane is mounted to the panel of the cabinet by the panel and secured by the provided mounting latch.

The IC694CHS392 backplane, designed and manufactured by GE Fanuc, is a serial expansion backplane in GE Fanuc RX3i PACSystems PLC. The serial expansion backplane is part of the foundation on which the RX3i PLC is built. It has 10 slots for installing different modules. A conventional PLC is built with only 1 general purpose backplane, but an extended system or extended PLC has 1 general purpose backplane and at least 1 remote backplane or 1 expansion backplane, such as the IC694CHS392 serial expansion backplane as its base. When the IC694CHS392 serial expansion backplane is connected to the universal backplane, the two backplanes can accommodate a total of 19 modules, which can be analog, discrete, or special function modules.

The GE Fanuc RX3i IC694CHS392 Serial expansion backplane can be located 50 feet or 15 meters away from the universal backplane to which the universal backplane is connected via an expansion cable with a terminal resistor. This expansion backplane can be mounted on the front of a 19-inch rack with a front-mounted adapter bracket or in a 19-inch rack with a recessed mount adapter bracket. IC694CHS392 The leftmost slot in the serial expansion baseboard is used to host the serial expansion power supply. These serial extension power supplies can be ordinary power supplies or high capacity power supplies. The mainboard does not support hot insertion or hot removal. It comes with a DIP switch for selecting the rack number, which needs to be set correctly before any modules can be installed.
