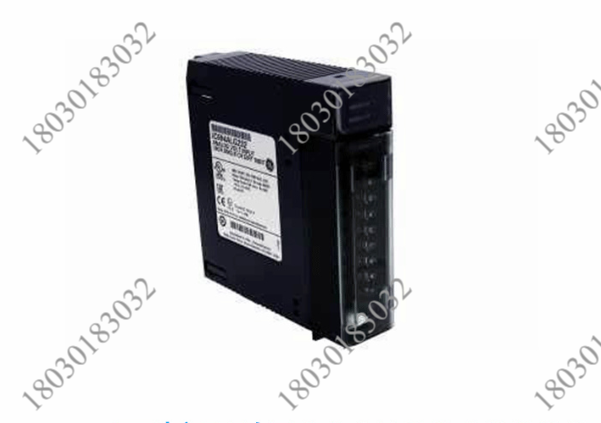

GE IC694ALG542 模拟电流/电压模块

【产品详情】

IC694ALG542模拟电流/电压模块由GE Fanuc为PACSystems RX3i制造。 高级诊断功能提供具有四个差分输入通道的混合 I/O 模拟电流/电压。此外，还提供两个单端输出通道。可以使用机器版软件完成以下任何范围的配置：（0 至 +10 伏）单极性、（-10 至 +10 伏）双极性、0 至 20 mA 或 4 至 20 mA。此外，输入通道可以配置为4-20 mA的增强模式。每个单独的输出都可以配置为保持最后状态或功率范围的低端。如果系统电源中断，这将生效。输出也是可配置的。这些可以根据应用程序的命令在斜坡模式下运行。在此模式下，输出通道会随着时间的推移逐渐上升到新值，而不是立即上升到新值。可以为每个通道设置上限和下限，并为每个单独的输出通道向CPU报告开路故障。

IC694ALG542模块提供的功能包括增强范围内每个输入的开路检测、每通道可配置的缩放和偏移以及每通道的报警检测和报告。该模块还提供模块故障报告，并支持逻辑程序中的完整诊断点故障触点。完全支持固件升级。

GE Fanuc IC694ALG542模拟量I/O模块经过精心设计，可以轻松安装和拆卸RX3i背板。它可以从外部 24 伏直流额定电源或 RX5i 背板中存在的 3 伏直流电源供电。GE Fanuc IC694ALG542模拟量I/O模块的更新速率为2毫秒，是同类产品中最快的信息处理器之一。GE Fanuc IC694ALG542模拟量 I/O 模块中提供了可自定义的信号缩放、开路检测、用户可配置报警和故障报告等高级功能。使用GE Fanuc IC694ALG542模拟量I/O模块这样的多功能设备，从单个可配置设备控制执行器和监控传感器状态从未如此简单。

在安装过程中，为了确保正常运行，该模块需要来自用户提供的 150Vdc 外部电源的 24mA 加环路电流。该模块支持从 RX3i 通用背板上插入和拔出。该模块的更新速率为 2 毫秒。

GE IC694ALG542 模拟电流/电压模块

【英文介绍】

The IC694ALG542 analog current/voltage module is manufactured by GE Fanuc for PACSystems RX3i. The advanced diagnostics feature provides hybrid I/O analog current/voltage with four differential input channels. In addition, two single-ended output channels are provided. The machine version software can be used to configure any of the following ranges: (0 to +10 volts) unipolar, (-10 to +10 volts) bipolar, 0 to 20 mA, or 4 to 20 mA. In addition, the input channel can be configured for 4-20 mA enhancement mode. Each individual output can be configured to maintain the final state or the lower end of the power range. This will take effect if the system power supply is interrupted. The output is also configurable. These can be run in ramp mode according to the commands of the application. In this mode, the output channel rises to the new value gradually over time, rather than immediately. Upper and lower limits can be set for each channel, and open-circuit faults can be reported to the CPU for each individual output channel.

The IC694ALG542 module provides features such as open circuit detection for each input in the enhanced range, configurable scaling and offset per channel, and alarm detection and reporting per channel. The module also provides module failure reporting and supports full diagnostic point failure contacts in logic programs. Firmware upgrades are fully supported.

The GE Fanuc IC694ALG542 analog I/O module is designed to easily install and remove the RX3i backplane. It can be powered from an external 24 volt DC rated power supply or the 3 volt DC power supply present in the RX5i backplane. The GE Fanuc IC694ALG542 analog I/O module has an update rate of 2 milliseconds, making it one of the fastest information processors in its class. The GE Fanuc IC694ALG542 analog I/O module provides customizable signal scaling, open circuit detection, user-configurable alarms and fault reporting. With a multifunctional device like the GE Fanuc IC694ALG542 analog I/O module, it has never been easier to control actuators and monitor sensor status from a single configurable device.

During installation, in order to ensure proper operation, the module requires 24mA plus loop current from a user-supplied 150Vdc external power supply. The module can be inserted and removed from the RX3i backplane. The update rate of this module is 2 milliseconds.
