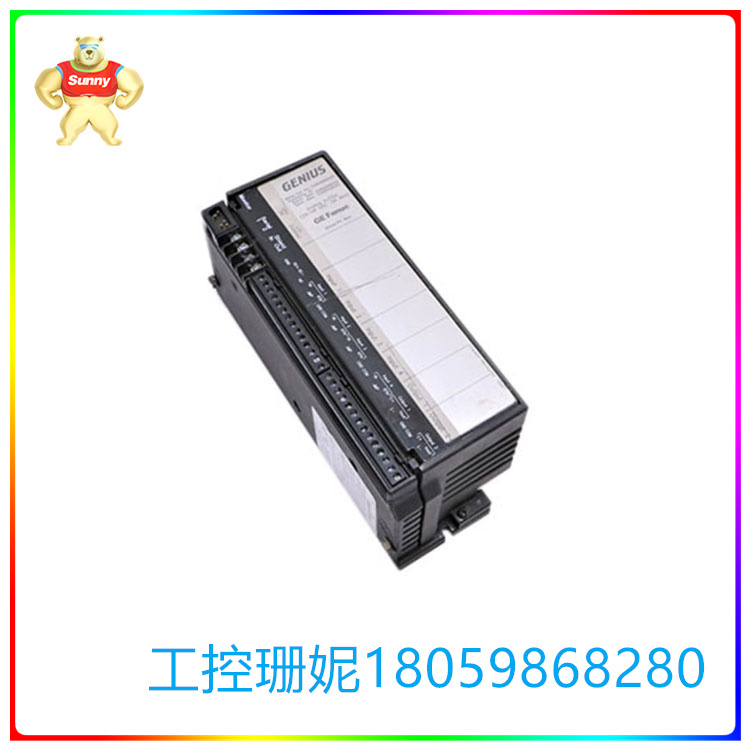

GE IC660TBA101 终端组件是RTD模块的一部分

【产品详情】

IC660TBA101组件是GE IC660BBA101、IC660T、IC660TB和IC660TBA设备的终端组件。它是由GE发那科设计和制造的，是RTD模块的一部分。这些RTD模块配备了6个输入电路，分为3组。这些组之间的隔离电压为300伏。该模块额定电压为115伏交流/125伏直流或24/48伏直流。输入信息相对于所选的RTD进行线性化。IC660TBA101端子组件具有不同的可配置选项，包括输入滤波器时间，RTD电阻，报警阈值和线性化设置。该块是预先校准的，在安装过程中无需校准。工作温度应设置在0 ~ 60摄氏度之间，非冷凝湿度不超过95%。砌块应远离电磁噪声和污染物。

GE发那科IC660TBA101端子组件具有先进的特性。它伴随着自动诊断，可以很容易地检测操作和安装错误。可方便地实现输入短检、故障检、开线检、低、高报警、超量程、欠量程输入检功能。115伏交流电的断电时间为1个周期，而125伏直流电的断电时间为10毫秒。Genius I-O RTD模块在正常负载下散发7瓦的热量。IC660TBA101终端组件可以连接到编程控制器或手持式监视器通过监控端口提供的顶部角落的块。块在400,800或1600毫秒的时间段内更新的频率。

GE IC660TBA101 终端组件是RTD模块的一部分

【英文介绍】

The IC660TBA101 component is the terminal component of GE IC660BBA101, IC660T, IC660TB, and IC660TBA devices. It is designed and manufactured by GE Fanuc and is part of the RTD module. These RTD modules are equipped with 6 input circuits, divided into 3 groups. The isolation voltage between these groups is 300 volts. The module is rated for 115 V AC /125 V DC or 24/48 V DC. The input information is linearized with respect to the selected RTD. The IC660TBA101 terminal assembly has different configurable options, including input filter time, RTD resistance, alarm threshold, and linearization Settings. The block is pre-calibrated and no calibration is required during installation. The operating temperature should be set between 0 and 60 degrees Celsius, and the non-condensing humidity should not exceed 95%. Blocks should be kept away from electromagnetic noise and contaminants.

GE Fanuc IC660TBA101 terminal assembly features advanced features. It is accompanied by automatic diagnostics that make it easy to detect operational and installation errors. It can easily realize the function of input short check, fault check, open line check, low and high alarm, over range and under range input check. The power failure time for 115 volts AC is 1 cycle, while the power failure time for 125 volts DC is 10 milliseconds. The Genius I-O RTD module emits 7 watts of heat under normal load. The IC660TBA101 terminal component can be connected to a programming controller or handheld monitor through the monitoring port provided by the top corner block. The frequency at which a block is updated in a period of 400,800 or 1600 milliseconds.

GE IC660TBA101 终端组件是RTD模块的一部分
