IC660ELB931 PCI接口卡 单通道通用控制器接口

【产品详情】

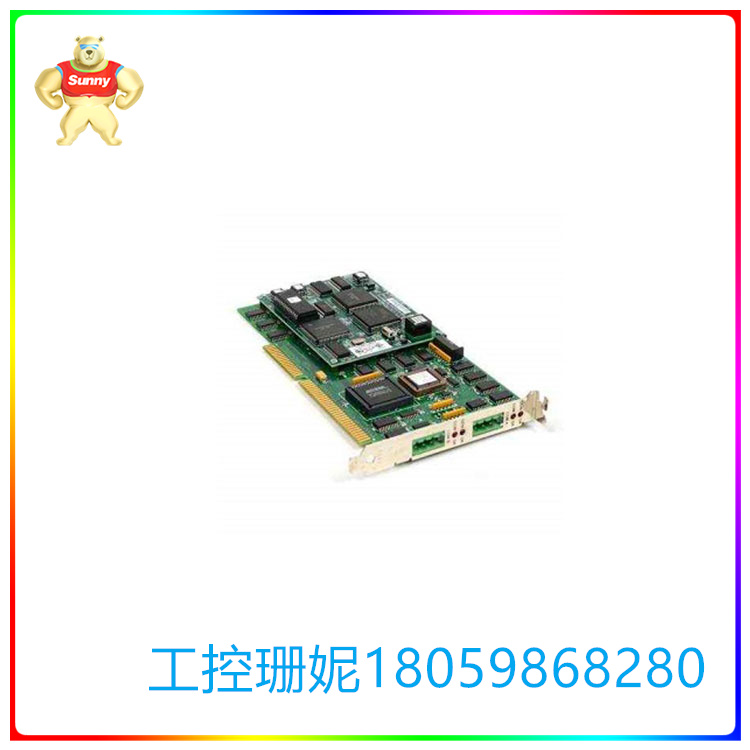

IC660ELB931 PCI Genius接口卡是GE Fanuc在Genius I/O系列中制造的PCI接口卡。它有助于将PC兼容计算机的PCI插槽和单通道通用控制器接口与Genius串行总线设备集成。IC660ELB931 PCI Genius接口卡与所有Genius总线通信协议兼容。接口卡的主要职责是提供将第三方设备（如 PLC、I/O 块和 CPU）与 Genius 总线设备连接的工具。PCI 卡的面板具有 4 针直角公端子盒连接器，具有屏蔽输出、屏蔽输入、串行 1 和串行 2 引脚，用于与 Genius I/O 接口。它还可容纳一个 DIP 开关和一个总线连接器，以便于配置。

IC660ELB931 PCI Genius 接口卡可以插入兼容个人计算机的 PCI 插槽。模块的DIP开关可用于配置Genius总线的端子电阻。它具有2个LED状态指示灯，用于显示模块的操作和通信过程的状态。如果卡在Genius串行总线上发送和接收数据时出现错误，则“通信正常”LED开始闪烁。如果卡上具有所需的功率级别，并且卡通过了板载自诊断测试，则“Genius OK”LED 将亮起。IC660ELB931 PCI Genius 接口卡可以以 32.153 Kbaud 的标准波特率与多达 6 台设备通信。其板载 DIP 开关提供 75、100、120 或 150 欧姆的可选总线端接电阻。所需的网络电缆是菊花链总线电缆，带有单根双绞线电缆和屏蔽电缆。它具有满足行业标准所需的 UL 508/C-UL、UL 1604C-UL 和 CE 认证。

IC660ELB931 PCI接口卡 单通道通用控制器接口

【英文介绍】

The IC660ELB931 PCI Genius interface card is a PCI interface card manufactured by GE Fanuc in the Genius I/O series. It helps to integrate the PCI slot and single-channel universal controller interface of PC-compatible computers with Genius serial bus devices. The IC660ELB931 PCI Genius interface card is compatible with all Genius bus communication protocols. The main responsibility of the interface card is to provide tools for connecting third-party devices, such as PLCS, I/O blocks, and cpus, to Genius bus devices. The panel of the PCI card has a 4-pin right Angle male terminal box connector with shielded output, shielded input, serial 1 and serial 2 pins for interfacing with Genius I/O. It can also accommodate a DIP switch and a bus connector for easy configuration.

The IC660ELB931 PCI Genius interface card can be inserted into a PCI slot compatible with a personal computer. The module's DIP switch can be used to configure the terminal resistance of the Genius bus. It has 2 LED status indicators, which are used to show the status of the module's operation and communication process. If an error occurs when the card sends and receives data on the Genius serial bus, the "Communication Normal" LED begins to blink. If the required power level is on the card and the card passes the onboard self-diagnostic test, the "Genius OK" LED will light up. The IC660ELB931 PCI Genius interface card can communicate with up to six devices at a standard baud rate of 32.153 Kbaud. Its onboard DIP switches offer optional bus termination resistors of 75, 100, 120 or 150 ohms. The required network cable is a Daisy chain bus cable with a single twisted pair cable and a shielded cable. It has the UL 508/C-UL, UL 1604C-UL and CE certifications required to meet industry standards.
