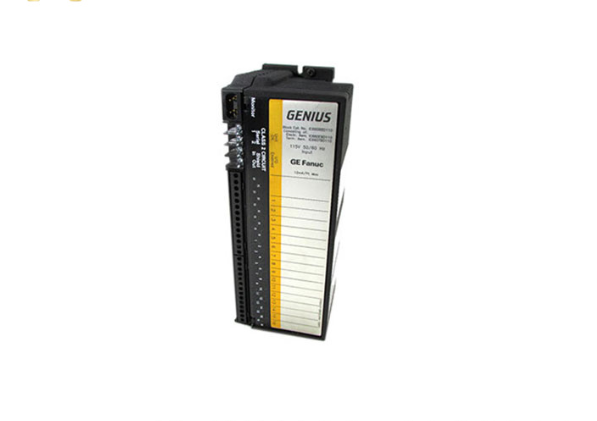

IC660EBS101 天才I-O GE  具有 1500 伏的块到块隔离额定值

【产品详情】

IC660EBS101电子组件是由GE智能平台/GE Fanuc Automation制造的电子组件，是Genius I/O模块系列的一部分。它有 8 个电路，分别是隔离的输入和输出，并分为 4 个不同的对。该块重约 1.8 公斤，尺寸为 22.44 x 8.89 x 10.00 厘米。IC660EBS101电子组件在逻辑侧有一个“I/O 启用”LED 和一个“单元正常”LED，每个 I/O 电路上都有一个 LED。它还具有 1500 伏的块到块隔离额定值，16 个输入的最大散热为 8 瓦，最大散热为 45.6 瓦，8 个输出，电流为 2 安培。电子组件在 0 至 60 摄氏度或 32 至 140 华氏度的温度范围内运行，可以存放在温度范围为 -40 至 100 摄氏度或 -40 至 212 华氏度的环境中，湿度范围为 5% 至 95%，无冷凝。

GE Fanuc IC660EBS101电子组件的工作电压范围为 93 至 132 伏交流电或 105 至 132 伏直流电，最大仅块功率控制额定值为 8 瓦。其他规格包括 47 至 63 赫兹的频率，最大纹波为 10%。IC660EBS101电子组件与各种设备兼容，可与任何GE Fanuc Genius总线控制器，QBIM或PCIM一起使用。它与向后兼容以前版本的 I/O 块兼容，例如 IC660BBS100、IC660BBS101 和 IC660CBS100 I/O 块。该电子组件可用作其他一些电子组件的替换零件。此外，它与更改波特率配置或IC660EBS101块配置以实现冗余所需的手持监视器完全兼容。

IC660EBS101  天才I-O GE  具有 1500 伏的块到块隔离额定值

【英文介绍】

The IC660EBS101 electronic assembly is an electronic assembly manufactured by GE Intelligent Platforms /GE Fanuc Automation as part of the Genius I/O module family. It has 8 circuits, which are isolated inputs and outputs, and are divided into 4 different pairs. The block weighs about 1.8 kg and measures 22.44 x 8.89 x 10.00 cm. The IC660EBS101 electronic assembly has an "I/O enabled" LED and a "Unit Normal" LED on the logical side, with one LED on each I/O circuit. It also has a block-to-block isolation rating of 1500 volts, a maximum heat dissipation of 8 watts from 16 inputs, a maximum heat dissipation of 45.6 watts, and 8 outputs with a current of 2 amps. Electronic components operate in a temperature range of 0 to 60 degrees Celsius or 32 to 140 degrees Fahrenheit and can be stored in an environment with a temperature range of -40 to 100 degrees Celsius or -40 to 212 degrees Fahrenheit and a humidity range of 5 to 95 percent without condensation.

The GE Fanuc IC660EBS101 electronic assembly operates in a voltage range of 93 to 132 volts AC or 105 to 132 volts DC, with a maximum block power control rating of 8 watts. Other specifications include frequencies of 47 to 63 Hz with a maximum ripple of 10%. The IC660EBS101 electronic assembly is compatible with a wide range of devices and can be used with any GE Fanuc Genius bus controller, QBIM or PCIM. It is compatible with backward-compatible previous versions of I/O blocks, such as IC660BBS100, IC660BBS101, and IC660CBS100 I/O blocks. The electronic component can be used as a replacement part for some other electronic components. In addition, it is fully compatible with handheld monitors required to change the baud rate configuration or the IC660EBS101 block configuration for redundancy.
