IC660EBS100 高速计数器电子组件 交流电压额定值

【产品详情】

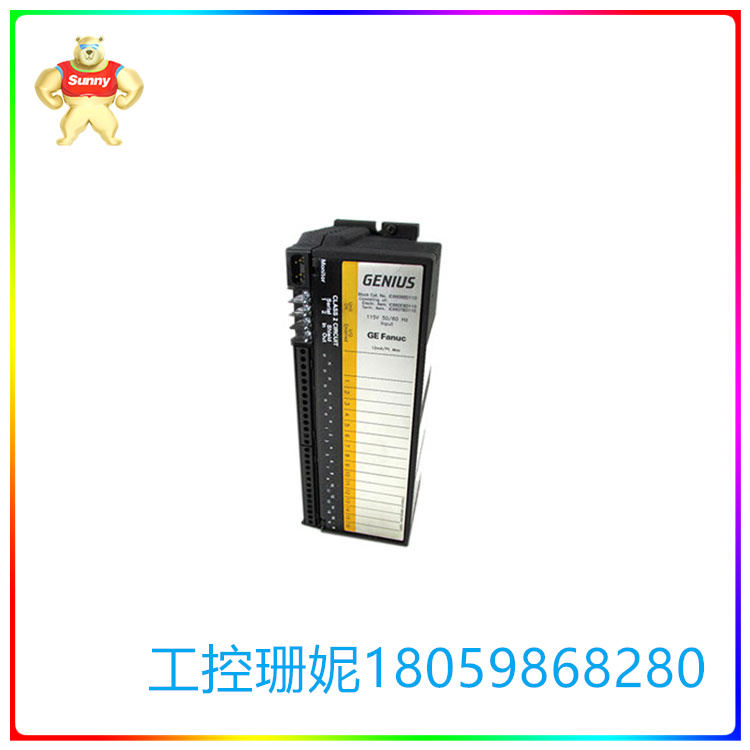

IC660EBS100电子装配模块由GE Fanuc Automation制造，作为Genius I / O模块产品线的成员。它有 8 个电路，在 125 伏直流或 115 伏交流电压额定值上运行，具有隔离的输入和输出。这种高速计数器电子组件可直接处理高达 200 kHz 的快速脉冲信号。这种高速计数器块的典型应用包括仪表供应、物料搬运、涡轮流量计、速度测量、过程控制和运动控制应用。该块旨在为计数器提供不同复杂程度的计数器。GE Fanuc IC660EBS100电子组件模块具有 4 种不同的控制输出以及 5 伏直流输出电压和方波振荡器输出，也可用作定时参考。

IC660EBS100电子装配模块带有微处理器和通信功能。它能够在不与PLC的CPU通信的情况下对输出进行计数和控制。GE Fanuc IC660EBS100电子装配模块还具有Genius手持式监视器，可用于显示频闪，计数，预加载和其他数据，以便操作员用于与机器进行适当的接口。该高速计数器模块可以在 10 至 30 伏直流或 115 伏交流电的额定电压下运行。当模块使用 115 伏交流电作为电源时，10 至 30 伏直流电源用作备用电源，但直流和交流电源也可以同时提供。此外，当交流电源发生故障时，当直流电源用作备用电源时，该块可以继续工作。

IC660EBS100 高速计数器电子组件 交流电压额定值

【英文介绍】

The IC660EBS100 electronic assembly module is manufactured by GE Fanuc Automation as a member of the Genius I/O module product line. It has eight circuits operating at 125 V DC or 115 V AC voltage ratings, with separate inputs and outputs. This high-speed counter electronic assembly can directly process fast pulse signals up to 200 kHz. Typical applications of this high speed counter block include instrument supply, material handling, turbine flow meters, speed measurement, process control and motion control applications. This block is designed to provide counters with varying degrees of complexity. The GE Fanuc IC660EBS100 electronic assembly module with 4 different control outputs as well as 5 V DC output voltage and square wave oscillator output can also be used as a timing reference.

IC660EBS100 electronic assembly module with microprocessor and communication function. It is able to count and control the output without communicating with the PLC's CPU. The GE Fanuc IC660EBS100 electronic assembly module also features a Genius handheld monitor that can be used to display stroboscope, count, preload and other data for the operator to use for proper interface with the machine. The high-speed counter module can operate at rated voltages of 10 to 30 volts DC or 115 volts AC. When the module uses 115 volts AC as power supply, 10 to 30 volts DC power supply is used as backup power, but DC and AC power can also be provided at the same time. In addition, in the event of a failure of the AC power supply, the block can continue to work while the DC power supply is used as a backup power supply.

IC660EBS100 高速计数器电子组件 交流电压额定值
