IC660EBR101  继电器输出模块 输出电路

【产品详情】

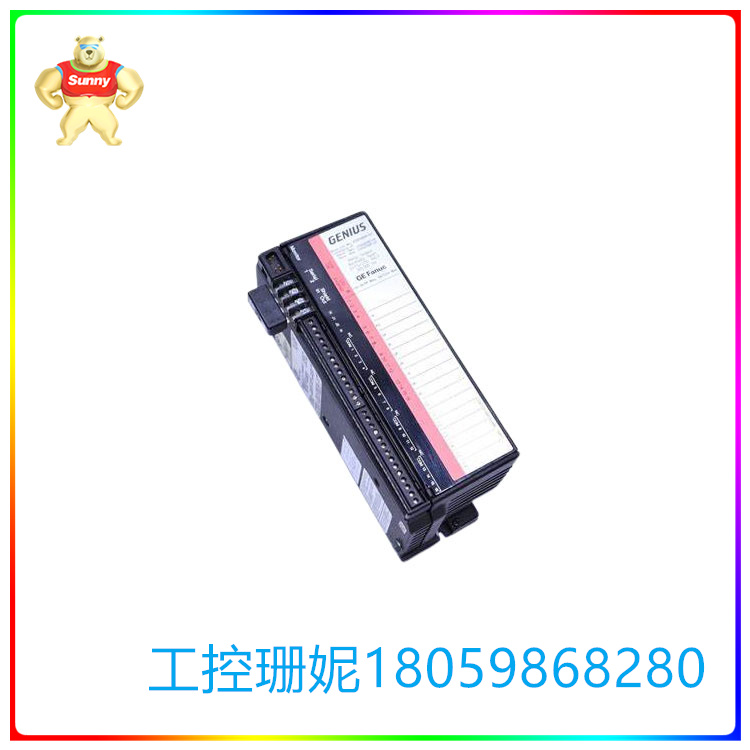

IC660EBR101电子组件是GE Fanuc的产品。它是作为GE Genius I/O模块系列的成员制造的。IC660EBR101电子组件是继电器输出模块的一部分，该模块旨在为每个继电器类型输出提供 16 个独立组中的 4 个输出电路。IC660EBR101电子组件在 115 伏或 230 伏交流电上运行，它可以与 2 种不同类型的继电器输出块一起工作，包括具有常闭继电器的IC660BBR100继电器输出块，以及带有常开继电器的IC660BBR101继电器输出块。继电器块上每组IC660EBR101电子组件的输出都可以使用直流或交流电源运行。

GE Fanuc IC660EBR101电子组件的组隔离额定值为 1500 伏，继电器模块非常适合各种低功耗控制应用，并与接触器、灯和继电器等指示器设备兼容。输出设备能够在 250 伏交流电或 5 至 220 伏直流电下工作，开关功率高达 125 伏安或 60 瓦。IC660EBR101电子组件的一些值得注意的可配置功能包括总线开关控制模块、冗余型CPU、输出上电默认设置和输出“保持最后状态”功能。它具有 LED 指示灯，可指示正确的 CPU 通信和块操作功能。它还具有单独的LED指示灯，可显示每个线圈状态的命令输出。IC660EBR101电子组件用途广泛，与所有GE Fanuc Genius I/O设备以及QBIM模块或PCIM设备兼容。

IC660EBR101  继电器输出模块 输出电路

【英文介绍】

The IC660EBR101 electronic assembly is a product of GE Fanuc. It is manufactured as a member of the GE Genius I/O module family. The IC660EBR101 electronic assembly is part of the relay output module, which is designed to provide 4 of 16 separate sets of output circuits for each relay type output. The IC660EBR101 electronic assembly operates on either 115 volts or 230 volts AC, and it can work with 2 different types of relay output blocks, including the IC660BBR100 relay output block with a normally closed relay and the IC660BBR101 relay output block with a normally open relay. The output of each set of IC660EBR101 electronic components on the relay block can be operated with DC or AC power.

With a group isolation rating of 1500 volts for the GE Fanuc IC660EBR101 electronics, the relay module is ideal for a variety of low-power control applications and is compatible with indicator devices such as contactors, lamps and relays. The output device is capable of operating at 250 volts alternating current or 5 to 220 volts direct current with switching power up to 125 volts amperes or 60 watts. Some of the notable configurable features of the IC660EBR101 electronics assembly include the bus switch control module, redundant CPU, output power-on default Settings, and the output "Hold Last" function. It has LED indicators that indicate proper CPU communication and block operation functions. It also has a separate LED indicator that shows the command output for each coil status. The IC660EBR101 electronic assembly is versatile and compatible with all GE Fanuc Genius I/O devices as well as QBIM modules or PCIM devices.

IC660EBR101  继电器输出模块 输出电路
