IC660EBA020 天才I/O模拟块电子组件 GE

【产品详情】

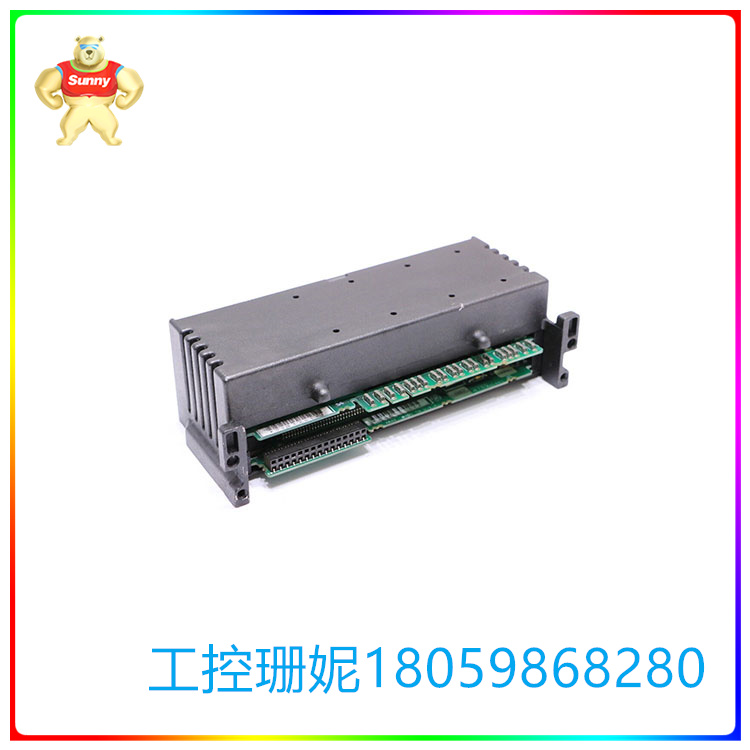

GE Fanuc IC660EBA020 Genius I/O 模拟模块电子组件是 GE IC66BBA020电压/电流模拟模块的电子组件。IC66BBA020 I/O 模块是具有 4 个模拟输入和 2 个模拟输出的 B 相模拟模块电子组件。IC66BBA020 I/O 模块包括兼容的端子组件（如IC66TSA020端子组件）和电子组件（如IC660EBA020电子组件）。端子组件构成了模块的底座，它为总线电缆、现场设备、手持监视器和EEPROM模块提供连接点。IC660EBA020电子组件容纳了模块的处理器，它执行模块的所有功能，包括数据存储和通信。

IC660EBA020电子组件的工作电压范围为 18 至 56 伏直流电，最大额定功率为 6.0 瓦。模拟 I/O 模块的最大精度值为满量程的 +/-0.5%，最大热漂移为每摄氏度 40 ppm（百万分之一）。IC660EBA020电子组件的标准电路选择范围为 0 至 10 伏直流、+/-10 伏直流、+/-5 伏直流、0 至 5 伏直流以及 0 至 20 和 4 至 20 毫安（或 1 至 5 伏直流）。IC660EBA020电子组件具有四个 12 位模拟输入，输入更新时间为 4 毫秒，可选输入滤波时间长达 1024 毫秒。IC660EBA020电子组件具有两个 12 位输出，可以配置为在与 CPU 通信丢失时保留最后一个状态值。IC660EBA020电子组件可以安装在端子底座上，方法是将组件与导轨完美对齐，并使用工厂提供的固定螺钉固定。

IC660EBA020 天才I/O模拟块电子组件 GE

【英文介绍】

GE Fanuc IC660EBA020 Genius I/O Analog Module Electronic components are the electronic components of GE IC66BBA020 voltage/current analog module. The IC66BBA020 I/O module is a B-phase analog module electronic assembly with 4 analog inputs and 2 analog outputs. The IC66BBA020 I/O module includes compatible terminal assemblies (such as the IC66TSA020 terminal assembly) and electronic assemblies (such as the IC660EBA020 electronic assembly). The terminal assembly forms the base of the module, which provides connection points for the bus cable, field devices, handheld monitors, and EEPROM modules. The IC660EBA020 electronics assembly houses the module's processor, which performs all of the module's functions, including data storage and communication.

The IC660EBA020 electronic assembly operates in a voltage range of 18 to 56 volts DC with a maximum power rating of 6.0 watts. The maximum accuracy value of the simulated I/O module is +/-0.5% of full scale and the maximum thermal drift is 40 ppm (parts per million) per degree Celsius. The standard circuit options for the IC660EBA020 electronic components are 0 to 10 volts DC, +/-10 volts DC, +/-5 volts DC, 0 to 5 volts DC, and 0 to 20 and 4 to 20 MA (or 1 to 5 volts DC). The IC660EBA020 electronic assembly has four 12-bit analog inputs with an input update time of 4 ms and an optional input filtering time of up to 1024 ms. The IC660EBA020 electronic assembly has two 12-bit outputs that can be configured to retain the last status value in the event of loss of communication with the CPU. The IC660EBA020 electronic assembly can be mounted on the terminal base by perfectly alecting the assembly to the rail and securing it using factory supplied setting screws.
