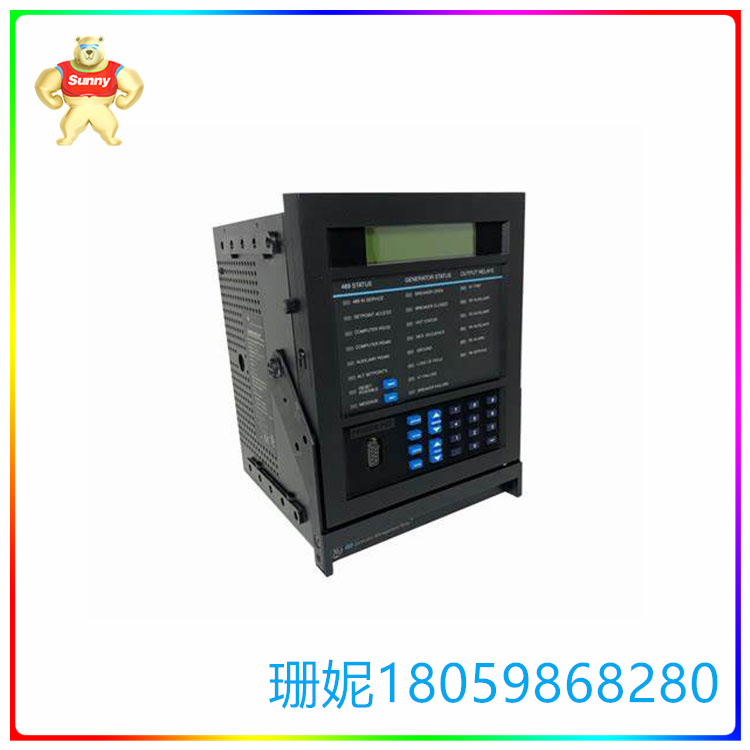

169-10C-120169-10C-120 监控管理和保护电机系统

【产品详情】

GE Multilin的169-10C-120通过在一个紧凑的单元中提供一系列强大的功能来减少外来连接。169-10C-120 能够监控、管理和保护电机系统，可减少系统停机时间、维护成本和故障排除时间。

虽然电机管理可能是一项艰巨的任务，需要大量的辅助计量和保护设备，但GE Multilin的169-10C-120通过在一个紧凑的单元中提供一系列强大的功能来减少无关的连接。169-10C-120 能够监控、管理和保护电机系统，可减少系统停机时间、维护成本和故障排除时间。

当与抽出式底盘一起订购时，继电器被封装在防尘、耐用的外壳中，允许在不触发电机关闭的情况下将继电器从服务中取出，从而能够以最小的中断对其进行维修、测试、更换或校准。继电器紧贴外壳，防止外壳在日常操作中不可预测地移动。在这种情况下，继电器的长度约为 11.5 英寸，宽度约为 7.5 英寸，高度约为 5 英寸。

该面板具有 48 个字符的字母数字显示屏、一系列五个 LED 和一个键盘。48 个字符的字母数字显示屏可在 32°F 至 131°F 的温度范围内工作。 它可以显示系统数据以及用于配置设定值。键盘可与显示屏配合使用，对设定值进行编程并查看系统测量的值。最后，LED 标记为跳闸、报警、辅助 1、辅助 2 和服务;前四个指示上述进程是否处于活动状态，因为服务 LED 指示继电器何时无法进行自我评估并需要用户干预。

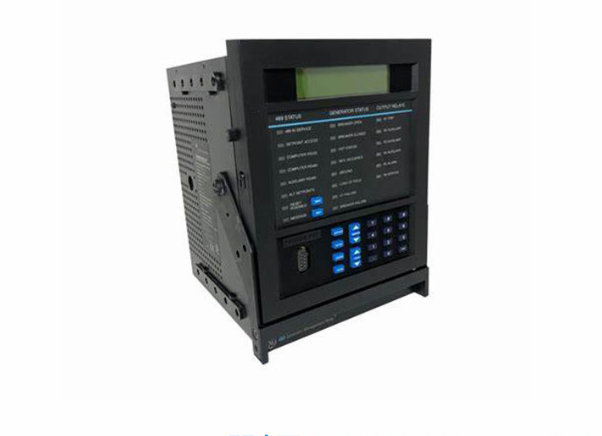

169-10C-120169-10C-120 监控管理和保护电机系统

【英文介绍】

GE Multilin's 169-10C-120 reduces foreign connections by providing a range of powerful features in a compact unit. The 169-10C-120 monitors, manages, and protects motor systems, reducing system downtime, maintenance costs, and troubleshooting time.

While motor management can be a daunting task requiring a large number of auxiliary metering and protection equipment, GE Multilin's 169-10C-120 reduces extraneous connections by providing a range of powerful features in a compact unit. The 169-10C-120 monitors, manages, and protects motor systems, reducing system downtime, maintenance costs, and troubleshooting time.

When ordered with a drawout chassis, the relay is packaged in a dust-proof, durable housing that allows the relay to be taken out of service without triggering the motor to shut off, enabling it to be serviced, tested, replaced or calibrated with minimal disruption. The relays fit snugly against the housing, preventing the housing from moving unpredictably during daily operation. In this case, the relay is about 11.5 inches in length, 7.5 inches in width, and 5 inches in height.

The panel features a 48-character alphanumeric display, a series of five leds, and a keyboard. The 48-character alphanumeric display operates in a temperature range of 32°F to 131°F. It can display system data and is used to configure Settings. The keyboard can be used in conjunction with the display to program the set values and view the values measured by the system. Finally, the leds are labeled Trip, alarm, Assist 1, Assist 2, and Service; The first four indicate whether the above process is active, as the service LED indicates when the relay is unable to perform a self-assessment and requires user intervention.

169-10C-120169-10C-120 监控管理和保护电机系统
