269PLUS-100P-HI 该继电器为 100 欧姆，具有铂 RTD

【产品详情】

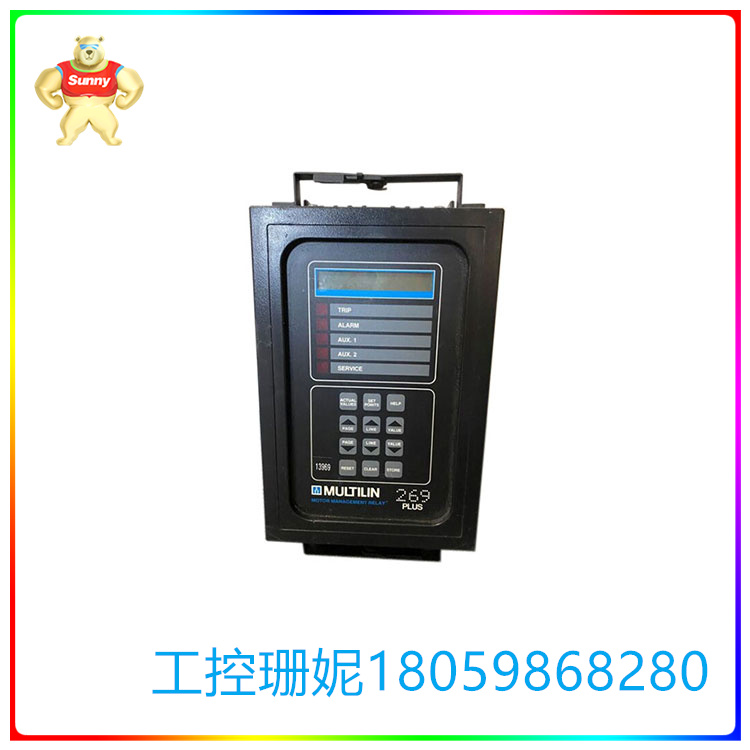

269PLUS-100P-HI是由GE Multilin制造的电机管理继电器。该继电器为 100 欧姆，具有铂 RTD。装运箱尺寸为 11.40 英寸 x 7.50 英寸 x 16.00 英寸（宽 x 高 x 深）。装运重量为 7.75 磅。储存和操作的环境温度必须在-25°C-60°C之间。 该继电器上的输入包括仪表通信端口、备用输入、差分继电器输入、速度开关输入、编程访问跳线或按键开关、外部复位按钮、紧急重启按键开关、6 个定子 RTD、4 个附加 RTD、接地故障 CT、相位 CT、电源电源端子和通用 AC/DC 电源。

典型的电机保护包括保护电机和设备免受操作员滥用，保护人员免受电击危险，保护齿轮、泵、风扇、锯木厂、切割机和压缩机免受机械堵塞，保护泵免受吸入或风扇损失气流，保护电机和轴承免受机械磨损引起的过度热量积聚， 保护在不同环境温度下运行的电机，使用自定义过载曲线保护高惯量、长加速度驱动系统。继电器控制装置上有许多按键。按下本机上的“实际值”键可将继电器置于“实际值”模式，该模式允许用户检查所有实际电机运行参数。按下设定点键可将继电器置于设定点模式，该模式允许用户检查和更改所有跳闸、报警和其他继电器设定点。

269PLUS-100P-HI 该继电器为 100 欧姆，具有铂 RTD

【英文介绍】

The 269PLUS-100P-HI is a motor management relay manufactured by GE Multilin. The relay is 100 ohms with platinum RTD. Shipping box dimensions are 11.40 inches x 7.50 inches x 16.00 inches (W x H x D). The shipping weight is 7.75 pounds. The ambient temperature for storage and operation must be between -25°C and 60°C. Inputs on this relay include instrument communication ports, alternate inputs, differential relay inputs, speed switch inputs, programmed access jumper or key switch, external reset button, emergency restart key switch, 6 stator RTDS, 4 additional RTDS, ground fault CT, phase CT, power supply terminals, and universal AC/DC power supply.

Typical motor protection includes protection of motors and equipment from operator abuse, protection of personnel from electric shock hazards, protection of gears, pumps, fans, sawmills, cutters and compressors from mechanical clogging, protection of pumps from suction or loss of airflow from fans, protection of motors and bearings from excessive heat buildup caused by mechanical wear, protection of motors operating at varying ambient temperatures, and protection of motors operating at varying ambient temperatures. Protect high inertia, long acceleration drive systems with custom overload curves. There are many buttons on the relay control unit. Press the "Actual Value" key on this machine to put the relay in "Actual Value" mode, which allows the user to check all actual motor operating parameters. Pressing the set point key puts the relay in set point mode, which allows the user to check and change all trip, alarm, and other relay set points.

269PLUS-100P-HI 该继电器为 100 欧姆，具有铂 RTD
