104X905BA603  GE 控制键盘 智能终端

【产品详情】

规格

部件号： NP104X905BA603

制造商： GE 发那科

条件： 有货

新品 可用性： 现货

系列： Mark V

原产国： 美国

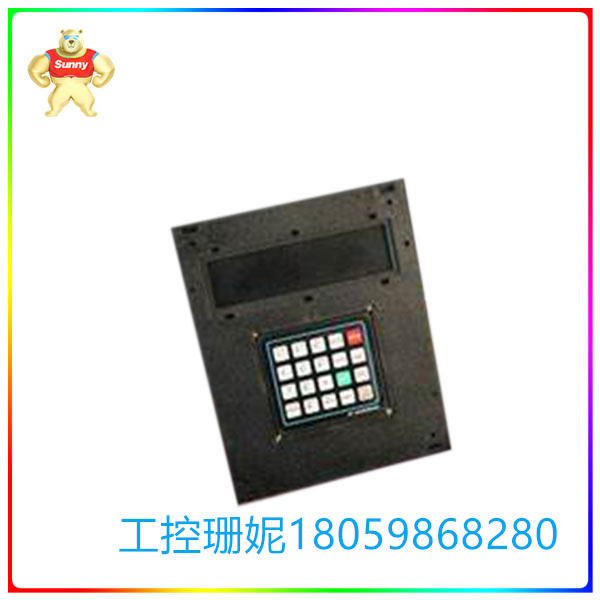

NP104X905BA603是由通用电气制造的操作员控制键盘。由OptiSCREEN程序生成的屏幕文件存储在OIT，一个智能终端。此外，由OptiBASIC实用程序创建的BASIC程序可以使用OptiBASIC在OIT上存储和运行。OIT 非常适合在工厂车间使用，因为它符合 NEMA 4 和 NEMA 12 要求。OIT 在操作期间使用 ANSI X3.64、VT-100 或 VT-52 转义序列。这意味着许多终端，如DEC VT-100和VT-220，也使用这些转义序列，可以用OIT代替。

NP104X905BA603特点

与 IBM 兼容的 PC、彩色监视器、键盘、光标定位工具（触摸屏和/或轨迹球或鼠标）和打印机构成了 Mark V 系统的主要操作界面。

设备可以启动或停止、装载或卸载，管理和记录警报，并使用通过操作员界面发送的命令监控设备运行。操作员界面不保护或控制设备，但工厂负载控制选项除外。

通过使用同轴电缆和 ARCNET 局域网 （LAN） 通信，操作员界面连接到一个或多个 Mark V 面板。载物台链接是指 Mark V 控制面板和操作员界面之间的连接。

为了适应操作员界面计算机和涡轮机控制面板之间的长距离，在某些情况下，载物台链路可能包括光纤电缆和中继器。使用安装在接口计算机上的程序，操作员界面还可用于配置或修改Mark V的控制，保护，监视和记录功能。这些功能只能使用密码进行修改或配置。

该界面具有不同显示器尺寸、彩色打印机、激光打印机和可以听到的警报喇叭的选项。

主机（PLC）将向OIT提供动态（变化）数据，然后OIT将以用户编程的屏幕格式显示在屏幕上。这种格式是使用OptiSCREEN编辑器生成的，通常比来自PLC的动态数据变化的频率要低。通过按下键盘上的按键，操作员可以输入数据并命令PLC采取行动。

特性

尺寸：3.5 x 13 x 13.6 厘米

重量： 0.34 千克

中国办事处拥有最大的GE控制零部件库存。WOC很乐意协助您满足任何自动化要求。请通过电话或电子邮件与我们的工作人员联系，了解任何零件和维修的价格和可用性。

104X905BA603  GE 控制键盘 智能终端

【英文介绍】

specification

Component number: NP104X905BA603

Manufacturer: GE Fanuc

Condition: Available

New product availability: In stock

Series: Mark V

Country of origin: USA

The NP104X905BA603 is an operator controlled keyboard manufactured by General Electric. The screen files generated by the OptiSCREEN program are stored in OIT, a smart terminal. In addition, BASIC programs created by the OptiBASIC utility can be stored and run on OIT using OptiBASIC. OIT is ideal for use on the factory floor as it meets NEMA 4 and NEMA 12 requirements. OIT uses ANSI X3.64, VT-100, or VT-52 escape sequences during operation. This means that many terminals, such as the DEC VT-100 and VT-220, also use these escape sequences and can be replaced with OIT.

NP104X905BA603 Features

An IBM-compatible PC, color monitor, keyboard, cursor positioning tool (touch screen and/or trackball or mouse) and printer make up the main operating interface of the Mark V system.

Devices can be started or stopped, loaded or unloaded, alarms managed and logged, and device operation monitored using commands sent through the operator interface. The operator interface does not protect or control equipment, with the exception of factory load control options.

By using coaxial cable and ARCNET local Area Network (LAN) communication, the operator interface is connected to one or more Mark V panels. The stage link refers to the connection between the Mark V control panel and the operator interface.

To accommodate the long distances between the operator interface computer and the turbine control panel, in some cases the stage link may include fiber optic cables and Repeaters. Using programs installed on the interface computer, the operator interface can also be used to configure or modify the Mark V's control, protection, monitoring and recording functions. These features can only be modified or configured using a password.

The interface has options for different display sizes, color printers, laser printers, and audible alarm speakers.

The host computer (PLC) will provide dynamic (changing) data to the OIT, which will then be displayed on the screen in a user-programmed screen format. This format is generated using the OptiSCREEN editor and generally changes less frequently than dynamic data from the PLC. By pressing keys on the keyboard, the operator can enter data and command the PLC to take action.

peculiarity

Dimensions: 3.5 x 13 x 13.6 cm

Weight: 0.34 kg

The China office has the largest inventory of GE controlled parts. WOC is happy to assist you with any automation requirements. Please contact our staff by phone or email for pricing and availability of any parts and repairs.
