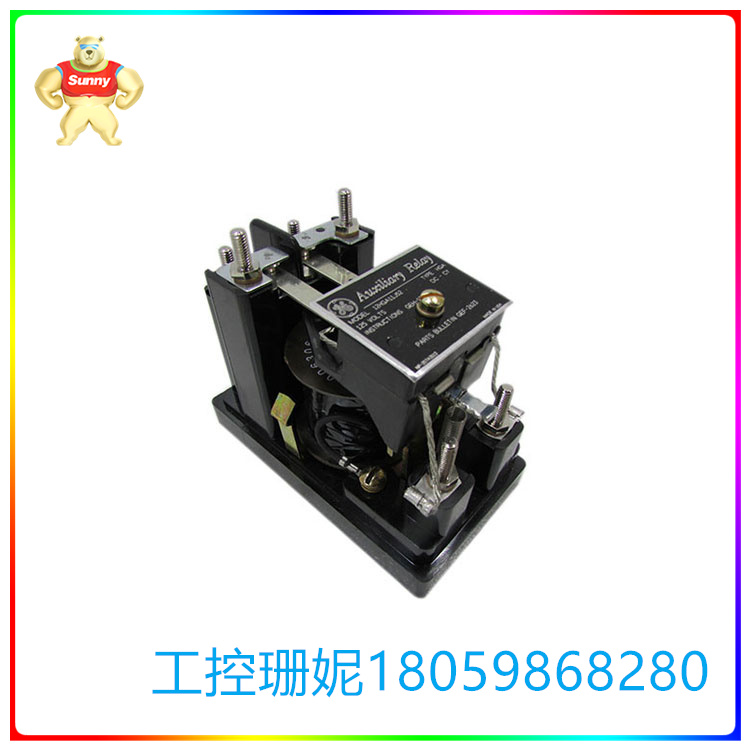

12HGA11J52 HGA 瞬时辅助继电器 GE

【产品详情】

HGA 型铰链电枢辅助继电器设计用于提供额外的触点、更高的触点承载和中断额定值、定时、联锁、电气分离或其他辅助功能。

特点和优点

模制外壳，带 4 种安装选项

提供抽屉盒

应用

触点乘法

保护与控制

提供标准、低时间和可变时间拾音器

交流欠压（低压差）

HGA11是其中标准辅助继电器在操作中是瞬时的吗

是否用于辅助功能哪里有故意的延误不需要1-1/4到2个周期标准的拾取

值，如表中所列，为令人满意。联络安排每个继电器(或单元)是双杆，双掷(2个正常开，2常闭)。

低拾音器:HGA14继电器有没有被设计得更短电枢间隙得到通过设置可调回来联系。这个建筑允许较低的拾取值正常和更快的接机时间。此外，继电器可用于跳闸ping任务和目标操作

拾取时间为1/2周期一个60周期的基础上，并间歇评级。接触安排是一种单极双抛触点一个常开触点对于每个继电器(或单元)。的第二个常闭接触点是不与低音拾音器一起使用设置。第二次接触可以可使用，如果擦拭恢复到正常和控制弹簧张力增加，从而提高了向80%(60%)靠拢百分比直流冷)水平是否适用于标准间隙继电器。

12HGA11J52 HGA 瞬时辅助继电器 GE

【英文介绍】

HGA type hinged armature auxiliary relays are designed to provide additional contacts, higher contact load and interrupt ratings, timing, interlocking, electrical separation, or other auxiliary functions.

Features and advantages

Molded housing with 4 mounting options

Drawer box available

Apply

Contact multiplication

Protection and control

Standard, low and variable time pickups are available

Ac undervoltage

Is HGA11 one of the standard auxiliary relays that is instantaneous in operation

Is it used for auxiliary functions where there are intentional delays that do not require 1-1/4 to 2 cycles of standard pick up

Values, as listed in the table, are satisfactory. Each relay (or unit) is double  rod, double throw (2 normally open, 2 normally closed).

Low pickup: The HGA14 relay has not been designed to have a shorter armature gap to be adjusted back by setting the contact. This building allows for lower pickup values and faster pickup times. In addition, relays can be used to trip ping tasks and target operations

The pick time is 1/2 cycle on a 60 cycle basis, and intermittently rated . The contact arrangement is a unipolar double throw contact with one normally open contact for each relay (or unit). The second normally closed contact point is not set for use with the bass pickup. The second contact can be used if the wipe is returned to normal and the control spring tension is increased, thus increasing to 80%(60%) closer to the percentage DC cold) level is suitable for standard gap relays.

12HGA11J52 HGA 瞬时辅助继电器 GE
