UR1HH GE  通用继电器系列的电源模块

【产品详情】

产品描述

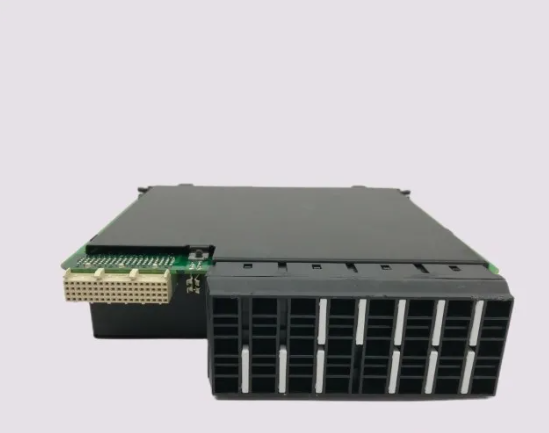

通用电气Multilin的UR-1HH是一种用于通用继电器系列的电源模块。该特定模块是该系列的高功率单元，在 125/250 Hz V AC 下提供 100-240 V DC 和 50 至 60 V 的额定功率。这与低功耗模块形成鲜明对比，后者仅使用直流电工作，额定功率为 24 至 48 V DC。

通用继电器具有一个铰链面板，可以打开该面板以显示设备中包含的模块安装。用户可以轻松卸载旧的或有故障的型号，并将其替换为高级版本。用户只需断开模块的连接，拉动插入的夹子即可卸下模块，然后将新模块插入正确的位置。模块必须替换为类似的模块，因此用户在忘记旧模型所在的位置之前应注意他们正在使用的插槽。

仅当从设备中断开控制电源时，才应执行此过程，否则可能会导致设备损坏、人身伤害或不希望的操作形式。此外，如果用户必须在继电器本身通电时接触模块，用户应采用静电放电保护（例如静电带）。

关于 UR-1HH 的常见问题

用于UR系列Multilin通用继电器的GE多林UR-1HH电源模块的额定功率是多少？

UR-1HH 的额定功率是高压规格 （H）。在 35 W 时，其范围为 125 至 250 V。在 35 VA 时，其范围为 100 至 240 VAC。 通用继电器接受高压或低压范围的功率模块。

UR-1HH Multilin电源的输入电压范围是多少？

2014年，随着UR-SH模块的发布，高压电源进行了重新设计和更新。产品通知规定，前几代产品的输入电压范围为 88 至 300 V DC。相比之下，SH 电源模块的输入电压范围为 88 至 400 V DC。UR-1HH 依赖于 CPU 模块进行电压轨监控。这是与SH电源的另一个区别。现在，所有电源轨都能够进行电压轨监控。通用继电器系统将接受所有世代的电源模块，但如果在同一通用继电器中使用两个电源模块，建议保留同一代的两个电源模块。UR-1HH目前仅可从剩余的自动化供应商处获得，因为UR-1H一代和UR-RH电源模块已从生产中移除。

UR1HH GE  通用继电器系列的电源模块

【英文介绍】

Product description

General Electric Multilin's UR-1HH is a power module for the general purpose relay family. This particular module is the high power unit of the family, offering power ratings of 100-240 V DC and 50 to 60 V at 125/250 Hz V AC. This is in contrast to low-power modules, which operate only with direct current and are rated at 24 to 48 V DC.

The universal relay has a hinged panel that can be opened to reveal the module installation contained in the device. Users can easily uninstall an old or faulty model and replace it with an advanced version. The user simply disconnects the module, pulls the inserted clip to remove the module, and then inserts the new module into the correct position. Modules must be replaced with similar modules, so users should pay attention to the slot they are using before forgetting where the old model is located.

Perform this procedure only when the control power is disconnected from the device, otherwise it may result in damage to the device, personal injury, or an undesired form of operation. In addition, if the user must touch the module while the relay itself is powered on, the user should use electrostatic discharge protection (such as electrostatic strips).

Frequently Asked questions about UR-1HH

What is the power rating of the GE Dorin UR-1HH power module for UR Series Multilin universal relays?

The power rating of UR-1HH is high voltage specification (H). At 35 W, its range is 125 to 250 V. At 35 VA, it ranges from 100 to 240 VAC. Universal relays accept power modules in the high or low voltage range.

What is the input voltage range of the UR-1HH Multilin power supply?

In 2014, the high voltage power supply was redesigned and updated with the release of the UR-SH module. The product notice states that the input voltage range of previous generations is 88 to 300 V DC. In contrast, the SH power module has an input voltage range of 88 to 400 V DC. The UR-1HH relies on the CPU module for voltage rail monitoring. This is another difference from SH power supplies. All power rails are now capable of voltage rail monitoring. The universal relay system will accept all generations of Psus, but if two Psus are used in the same universal relay, it is recommended to retain two Psus of the same generation. The UR-1HH is currently only available from the remaining automation suppliers, as the UR-1H generation and UR-RH power modules have been removed from production.
