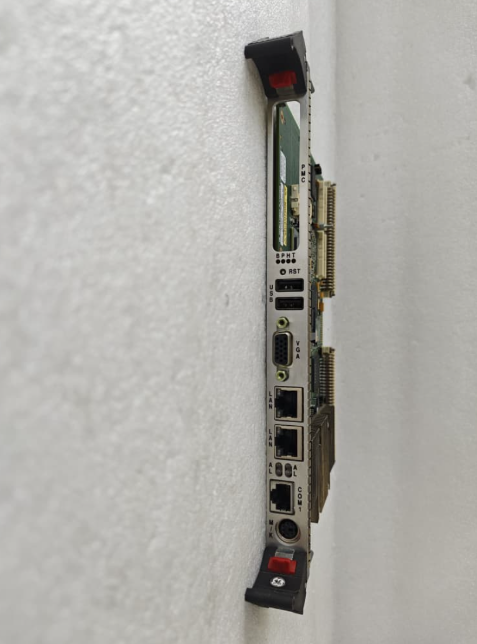

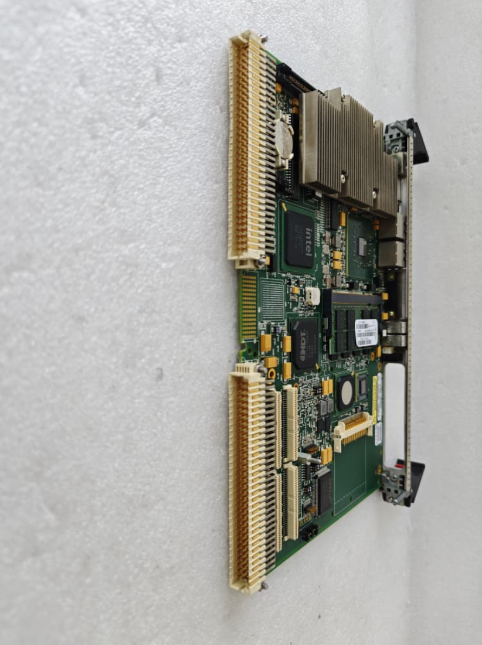

V7768-322001 基于VME总线的单一电路板

【产品详情】

•支持的USB功能包括

—同步数据传输

-异步消息传递

-外设的自我识别和配置

-动态(热)附件VMEbus背板接口

VME单板计算机是基于VME总线的单板计算机，是一种构建完整计算机的单一电路板。

它包括微处理器、内存、以太网、I/O、视频和音频输出。设计的核心架构是微处理器。

VME总线是一种高性能工业用总线，以PCI电气规范为标准，其插板一般有两种尺寸，一种是3U高度的带一个总线接口J1，高长为100mm160mm，另一种是6U高度的带2个总线接口J1、J2，高长为233mm160mm，一般每块VME总线的插板上的接口J1、J2都有96针。

单板计算机又称为单板计算机。

单板计算机诞生于20世纪60年代，它是一种嵌入到印制电路板上的微型计算机。从外观上看，它是一个只有一块电路板的微型计算机，它的主要组成部分包括微处理器、存储器、定时器和计数器等，具有体积小、成本低、可嵌入等优点。

V7768-322001 基于VME总线的单一电路板

【英文介绍】

• Supported USB features include

- Synchronize data transmission

- Asynchronous message passing

- Self-identification and configuration of peripherals

- Dynamic (hot) accessories VMEbus backplane ports

VME single board computer is a single board computer based on VME bus, which is a single board to build a complete computer.

It includes a microprocessor, memory, Ethernet, I/O, video and audio output. The core architecture of the design is the microprocessor.

VME bus is a kind of high performance industrial bus, PCI electrical specification as the standard, its board generally has two sizes, one is 3U height with a bus interface J1, high length of 100mm160mm, the other is 6U height with two bus interfaces J1, J2, high length of 233mm160mm, the other is 6U height with two bus interfaces J1, J2, high length of 233mm160mm. Generally, the interfaces J1 and J2 on each VME bus board have 96 pins.

A single board computer is also called a single board computer.

The single-board computer was born in the 1960s and is a microcomputer embedded on a printed circuit board. From the appearance point of view, it is a microcomputer with only one circuit board, its main components include microprocessor, memory, timer and counter, etc., with small size, low cost, embeddable and other advantages.
