IS200AEADH4ADA 管理燃气轮机 终端板接收输入
【产品详情】
IS200AEADH4ADA是GE Mark VI板组件。Mark VI是由通用电气公司设计的用于管理燃气轮机和蒸汽轮机系统。它也可以用于平衡装置控制(BOP)。MKVI通常使用13或21槽的VME卡机架，通过带有以太网10Base2数据传输的终端板接收输入。

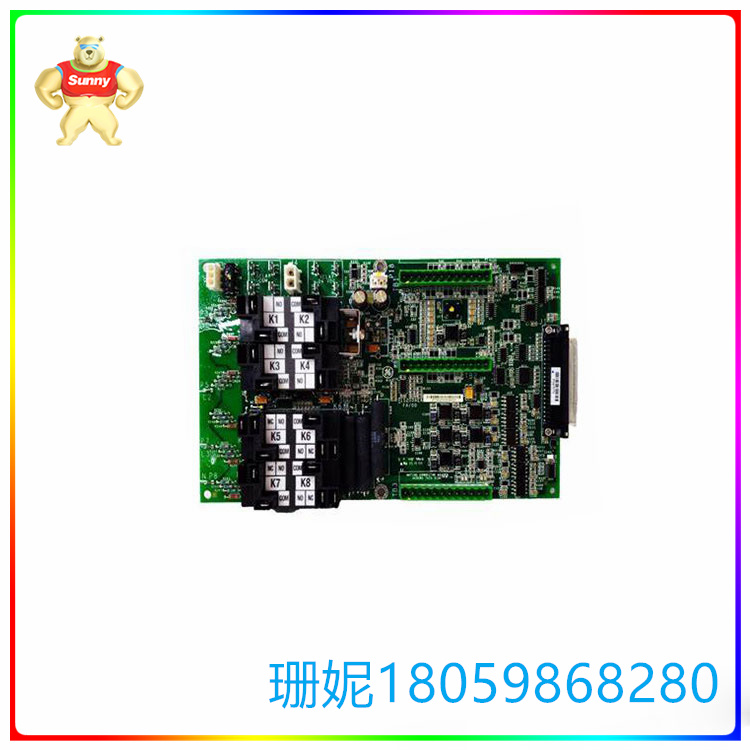

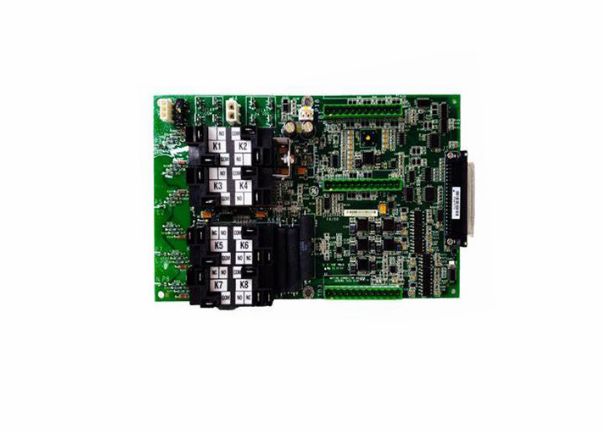

IS200AEADH4ADA是一个矩形电路板，在工厂的每个角落都有钻孔。该板有三个垂直终端条放置平行于对方和平行于长边的板。每个端子带有12个引脚连接器。其他连接器也在电路板上，包括四个沿上边缘放置在一起的插入式连接器和四个沿短边缘放置的附加插入式连接器。该板有两个插头连接器和一个直角端子带。
IS200AEADH4ADA上的其他电路板组件包括两个散热器，八个继电器，几个高压电容器，以及其他电容器，电阻(包括绕线电阻)，)和多个集成电路。电路板上标有几个代码，通用电气的标志，并且在大多数组件附近也带有参考标志，以便于识别。
有关IS200AEADH4ADA的更多信息，请参阅通用电气提供的文档。这可能包括原始手册、数据表或用户指南。这些材料将包含有关处理和正确安装电路板的重要信息。
IS200AEADH4ADA 管理燃气轮机 终端板接收输入
【英文介绍】
The IS200AEADH4ADA is a GE Mark VI board component. The Mark VI was designed by General Electric to manage gas and steam turbine systems. It can also be used for balance device control (BOP). Although the component has been discontinued by the OEM, it can be purchased from axcontrol as a rebuild of surplus or never-used inventory. MKVI typically uses a 13 - or 21-slot VME card rack that receives input via a terminal board with Ethernet 10Base2 data transmission.
The IS200AEADH4ADA is a rectangular circuit board with holes drilled in every corner of the factory. The board has three vertical terminal bars placed parallel to each other and parallel to the long side of the board. Each terminal comes with 12 pin connectors. Other connectors are also on the board, including four plug-in connectors placed together along the top edge and four additional plug-in connectors placed along the short edge. The board has two plug connectors and a right Angle terminal band.
Other board components on the IS200AEADH4ADA include two heat sinks, eight relays, several high-voltage capacitors, as well as other capacitors, resistors (including winding resistors), and multiple integrated circuits. The board is marked with several codes, the GE logo, and there are also reference signs near most of the components for easy identification.
For more information about the IS200AEADH4ADA, see the documentation provided by GE. This may include original manuals, data sheets, or user guides. These materials will contain important information about handling and properly mounting the board.
