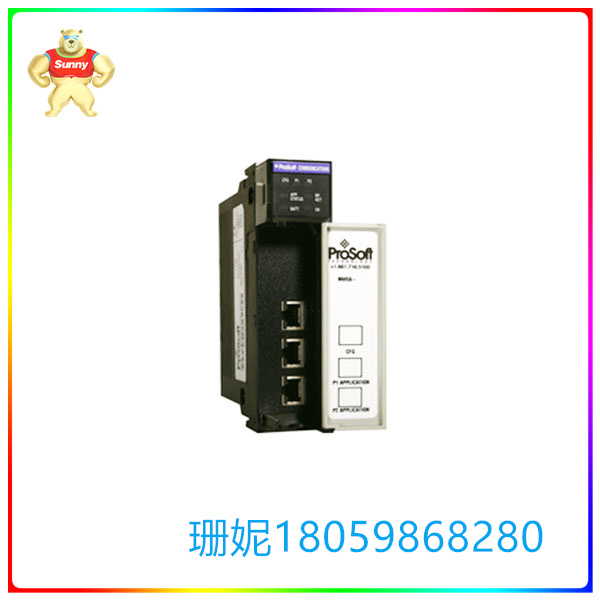

MVI56-BAS BASIC通信模块 单插槽模块 Allen Bradley

【产品详情】

MVI56-BAS是由Prosoft Technology制造的BASIC通信模块。它是一个单插槽模块，用于将 1747-BAS 和 1771-DB 模块上使用的大量传统 BASIC 程序转换为 ControlLogix 系统。其用户界面由三个端口组成 - DH-485、PRT1 和 PRT2。这些端口用于进行通信、BASIC 程序传输、ASCII 通信、编程或 DF1 通信。MVI56-BAS 有一个紧凑型闪存磁盘插槽。您可以使用 CF 卡来存储 BASIC 程序。这些 BASIC 程序也可以导出到另一个或本地 PC。该设备有 24065 字节的可用 RAM。

可以通过该通信模块操作的主要功能是创建BASIC程序，以允许与ControlLogix处理器进行数据传输，并为特殊应用创建或外部设备接口。该模块还可用于将使用 ASCII 编码的设备连接到 ControlLogix 背板。打印机、条形码阅读器或调制解调器就是这种情况。MVI56-BAS可配置为DF1半双工从机或DF1全双工模块。为了在该模块和处理器之间传输数据，程序员必须使用梯形图逻辑。示例梯形图文件随设备一起提供。该设备可在 0 至 60 摄氏度（32 至 140 华氏度）的温度下运行。它具有四个 LED 状态指示灯，用于模块操作、背板传输、应用和串行活动。

MVI56-BAS BASIC通信模块 单插槽模块 Allen Bradley

【英文介绍】

MVI56-BAS is a BASIC communication module manufactured by Prosoft Technology. It is a single slot module for converting a large number of traditional BASIC programs used on the 1747-BAS and 1771-DB modules to a ControlLogix system. The user interface consists of three ports - DH-485, PRT1 and PRT2. These ports are used for communication, BASIC program transfer, ASCII communication, programming, or DF1 communication. The MVI56-BAS has a compact flash disk slot. You can use CF cards to store BASIC programs. These BASIC programs can also be exported to another or local PC. The device has 24,065 bytes of available RAM.

The main functions that can be operated through this communication module are to create BASIC programs to allow data transfer with the ControlLogix processor and to create or external device interfaces for special applications. This module can also be used to connect devices using ASCII encoding to the ControlLogix backplane. This is the case with printers, barcode readers, or modems. The MVI56-BAS can be configured as a DF1 half-duplex slave or a DF1 full-duplex module. In order to transfer data between this module and the processor, the programmer must use ladder diagram logic. A sample ladder diagram file is provided with the device. The device can operate at temperatures from 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit). It features four LED status indicators for module operation, backplane transmission, applications, and serial activity.

MVI56-BAS BASIC通信模块 单插槽模块 Allen Bradley
