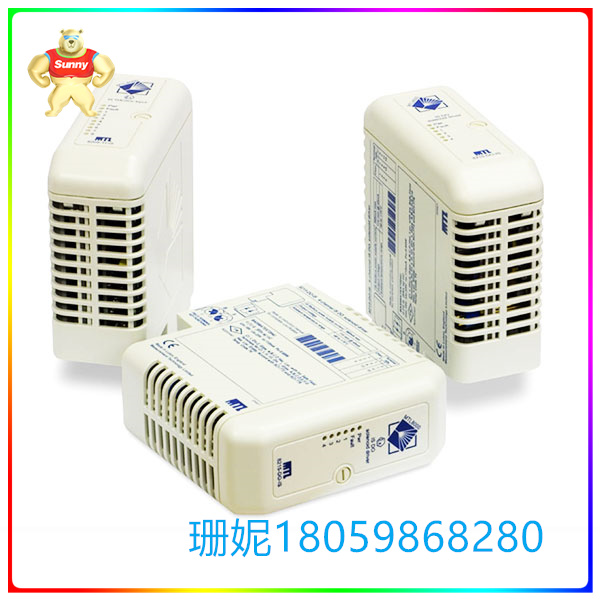

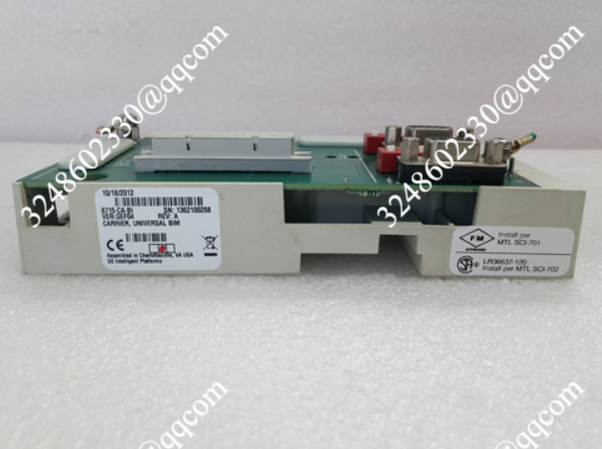

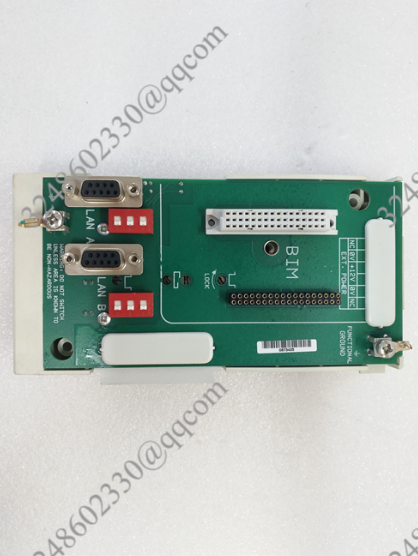

MTL-8715-CA-BI 温度变送器 DIN导轨安装
【产品详情】
型号:MTL 8715-CA-BI
输入电压:24 VDC
输出电流:4-20 mA
最大输出电压:28 VDC
工作温度:-20°C至+60°C
防护等级:IP20
输入信号:4-20mA DC
输出信号:4-20mA DC 或 1-5V DC
隔离电压:1500V AC
频率响应范围:DC - 10kHz
线性度误差:±0.1%
供电电压:18-32V DC
工作温度范围:-20°C 到 +60°C
安装方式:35mm DIN导轨安装
尺寸:22.5mm x 99mm x 114mm
建议在以下时间执行备份:
在安装新RobotWare之前
在对指令和/或参数做任何重要修改之前在对指令和/或参数做了任何修改并测试成功之后,用来保留新的成功的设置
备份之前应该考虑的因素:
IRC5可以安装几个系统!
永远不要忘记检查哪一个才是当前被激活的系统
系统备份的步骤:
步骤1、打开ABB主菜单
步骤2、点击备份与恢复,打开备份与恢复窗口。
步骤3、在备份与恢复窗口中,点击备份当前系统…
步骤4、在备份当前系统窗口中,点击ABC…给生成的备份文件夹命名,点击…选择生成备份文件的路径。然后点击备份。
切记:
给备份起个具有可描述性的名字
保留创建备份文件时的日期
将备份文件存在一个安全位置
二、系统恢复
系统恢复的注意事项:
什么时候?
安全因素
如何去做?
建议在如下情况做恢复:
如果你有任何理由怀疑程序文件损坏;
如果对指令和/或参数的设置做了任何不成功的修改,需要以前的设置;
①在恢复过程中,所有的系统参数被替换,并且所有的备份目录下的模块被重新装载;
②Home 目录在热启动过程中被拷贝回新的系统HOME 目录。
切记:
(1).在S4上做的备份不可能在IRC上恢复;
(2).永远不要忘记检查你是否在恢复正确的系统.
MTL-8715-CA-BI 温度变送器 DIN导轨安装
【英文介绍】
Model: MTL 8715-CA-BI
Input voltage: 24 VDC
Output current: 4-20 mA
Maximum output voltage: 28 VDC
Operating temperature: -20°C to +60°C
Protection level: IP20
Input signal: 4-20mA DC
Output signal: 4-20mA DC or 1-5V DC
Isolation voltage: 1500V AC
Frequency response range: DC-10kHz
Linearity error: ±0.1%
Power supply voltage: 18-32V DC
Operating temperature range: -20°C to +60°C
Mounting method: 35mm DIN rail mounting
Dimensions: 22.5mm x 99mm x 114mm
You are advised to perform the backup at the following times:
Before installing the new RobotWare
Used to preserve new successful Settings after any modifications to instructions and/or parameters have been made and tested successfully before any significant changes have been made
Factors to consider before backing up:
IRC5 can install several systems!
Never forget to check which system is currently active
Steps for system backup:
Step 1. Open the ABB main menu
Step 2. Click Backup and Restore to open the Backup and Restore window.
Step 3. In the Backup and Restore window, click Back Up the current system...
Step 4. In the Backup window, click ABC... Name the generated backup folder and click... Select the path for generating the backup file. Then click Backup.
Remember:
Give the backup a descriptive name
Retain the date when the backup file was created
Store backup files in a secure location
2. System recovery
Precautions for system recovery:
When?
Safety factor
How to do it?
You are advised to perform recovery in the following situations:
If you have any reason to suspect that the program file is corrupt;
If any unsuccessful changes have been made to the Settings of instructions and/or parameters, the previous Settings are required;
① During the recovery process, all system parameters are replaced and all modules in the backup directory are reloaded.
The Home directory is copied back to the new system HOME directory during the hot start.
Remember:
(1) Backups made on S4 cannot be restored on IRC;
Never forget to check that you are restoring the correct system.
